60mm Hydraulic Jack Pressure Gauge Manometer With Back Flange

Categories	Electric Contact Pressure Gauge
Place of Origin:	Shandong, China
Brand Name:	WYYW
Model Number:	YX-60C
Certification:	CE,ISO
Packaging Details:	Seaworthy packing, each one is packed with rubber boot in paper bags, 30 bags in one carton box. or as customer's request.
Supply Ability:	1000000 Unit/Units per Month pressure gauge with back flange
MOQ:	50 units
Price:	$20.00/units 50-99 units
Warranty:	1 year
Customized support:	OEM, ODM
Case size:	60mm
pressure range:	0-250MPa
Accuracy class:	2.5%
connection size:	NPT, BSP(G,BF),BSPT(ZG,PT) 1/4"
Mounting:	bttom, back, panel
Port:	Qingdao

Contact Now

Add to Cart

Company Info.

Qingdao Dazefengyang Meter& Welding Instruments Co., Ltd.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

pressure gauge with back flange

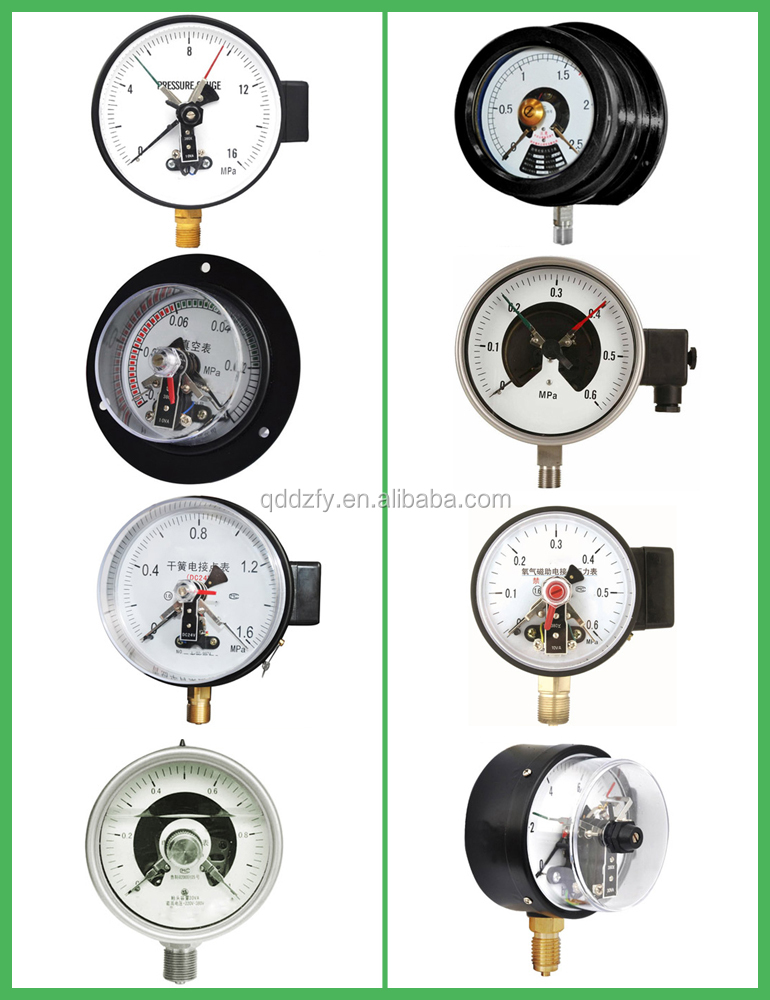

Product Description

Dials size	2.5"(63mm),4"(100mm),6"(150mm)
Case	SS304, black steel
Pressure range	0-100MPa, other scale unites bar, psi, kgf/cm2,ect. opitional
Movement	SS, brass
Socket	SS, brass
bourdon tube	phosphor bronze, SS
Dial plate and pointer	Aluminum
Window	Glass, safe glass
Connection size	1/4" for 2", 2.5"case, 1/2" & 3/8" for 4" and 6" case
Connection thread	Metric thread, NPT, BSP(G,PF),BSPT(ZG,PT)
Liquid	Silicone, glycerine or dry
Mounting	Bottom, back and panel
Accuracy	2.5"(63mm)-2.5%; 4"(100mm) and 6"(150mm)-1.6%
Control	Upper and lower limits contact control
Working voltage	AC220V, DC380V and DC24V opitional
Pressure limitation	Steady: 3/4x full scale value Fluctuation :2/3x full scale value Short time: full scale value

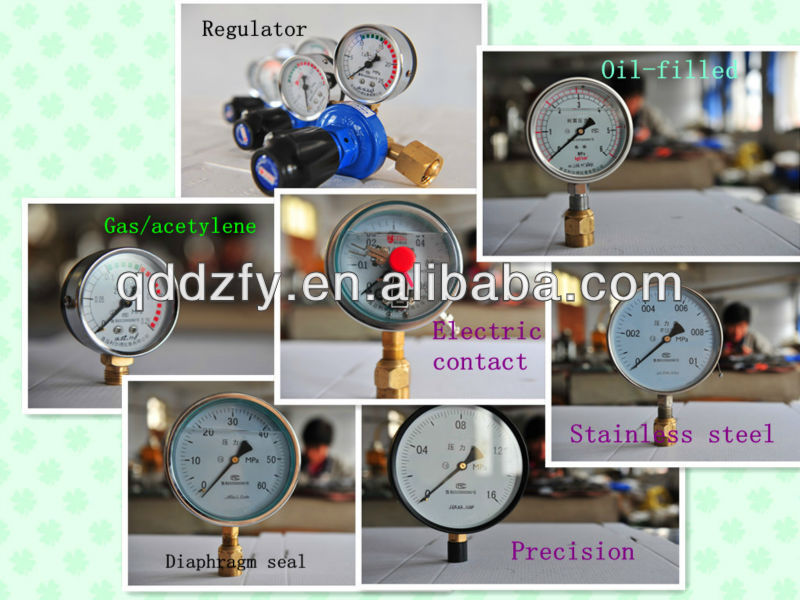

More products

Production process

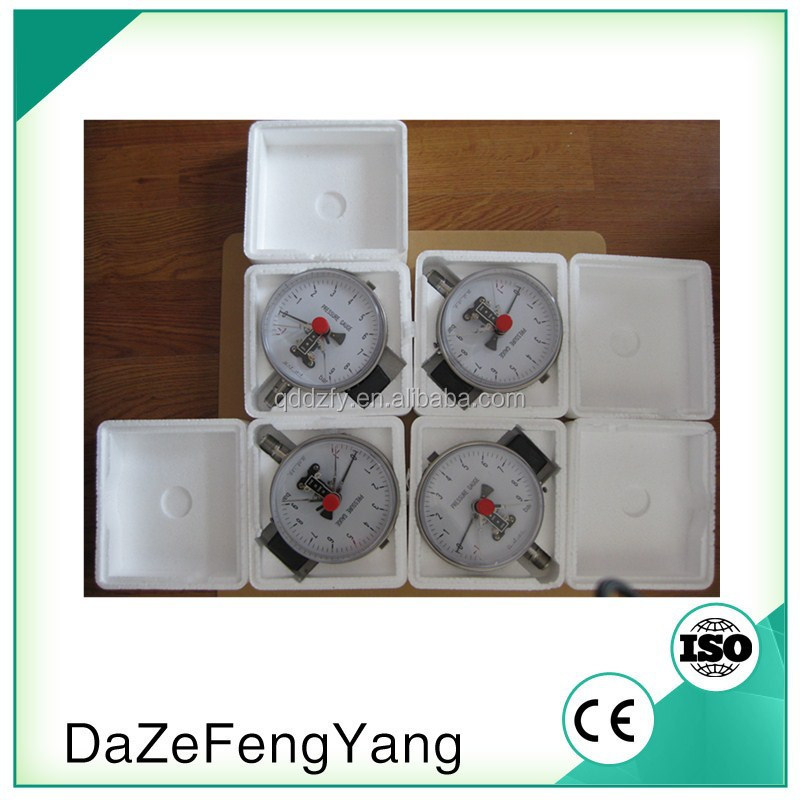

Packaging & Shipping

60mm Hydraulic Jack Pressure Gauge
