| Output signal: | 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol) |
| Measurement span (capsule): | 2.5 to 100 kPa (10 to 400 inH2O) |
| Coverflange bolts and nuts material: | B7 carbon stee |
| Installation: | Horizontal piping type and left side high pressure |
| Amplifier housing: | Cast aluminum alloy |
| Electrical connection: | 1/2 NPT female, two electrical connections without blind plugs |
| Mounting bracket: | 304 SST 2-inch pipe mounting, flat type (for horizontal piping) |
| Process connection style: | Transmitter body section |
| Company Info. |
| SC Automation Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

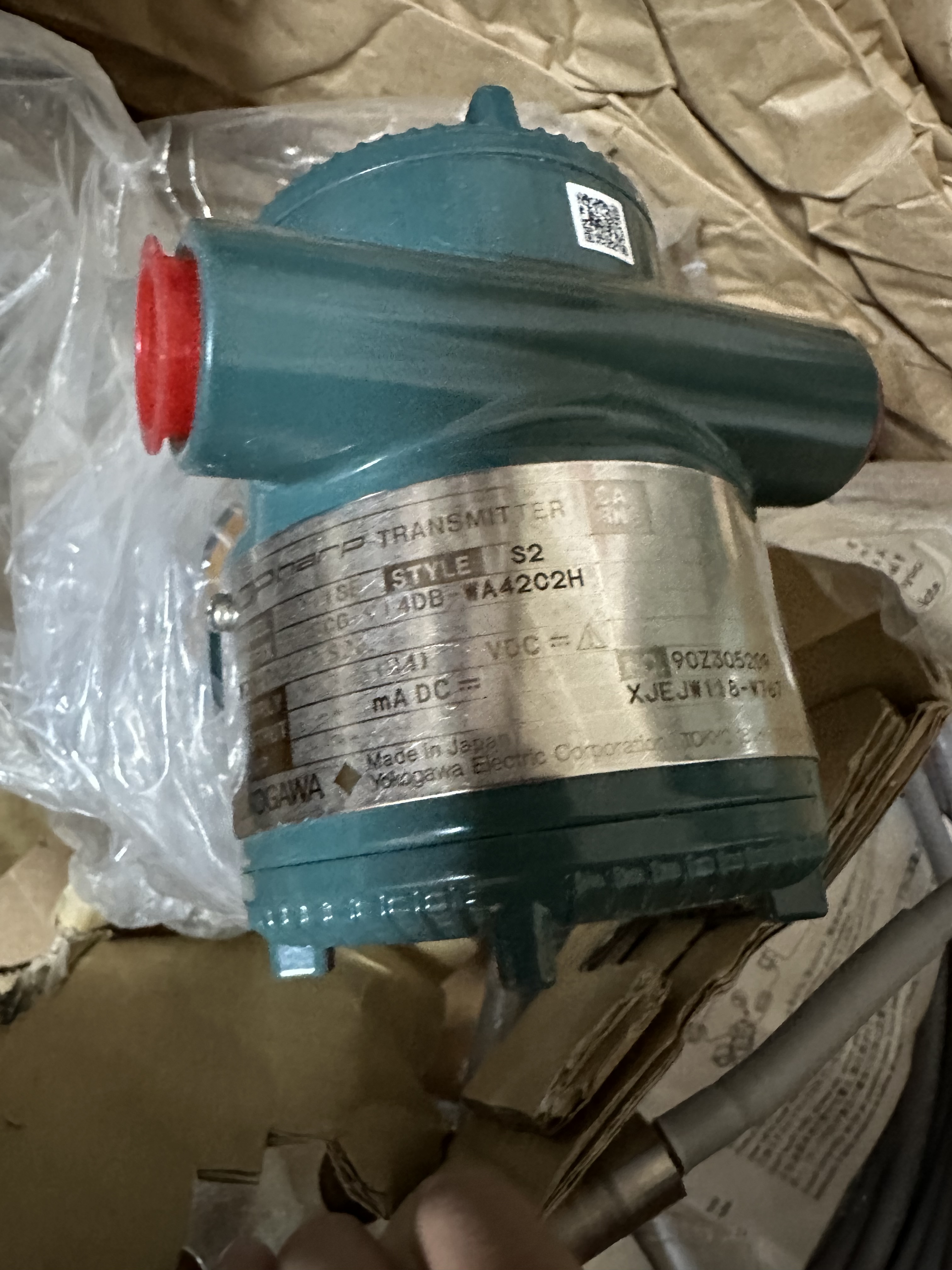

YOKOGAWA EJA118E DP Transmitter with Remote Diaphragm Seals EJA118E-JMSCJ-912NB-WA13A1SW00-AA25/D4
The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

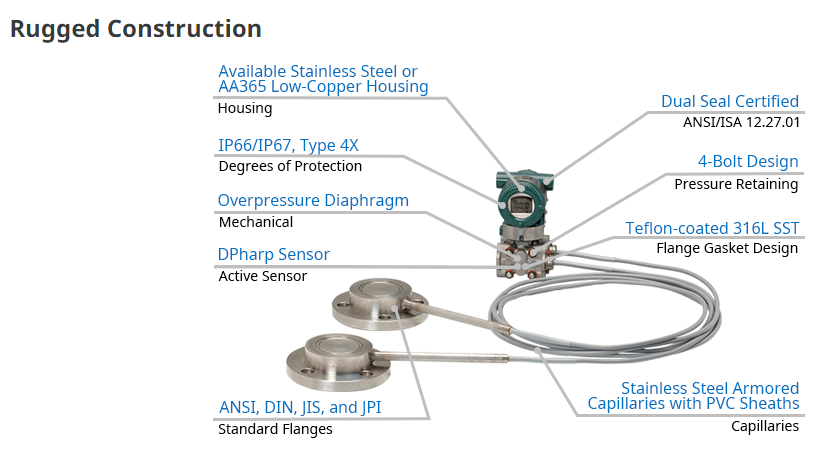

The EJA118E is a Differential Pressure Transmitter with remote diaphragm seals.
EJA118E features include:
EJA118E Process Connections
Process connection Type | Size | Extension | Flange | ||
|---|---|---|---|---|---|
High-Pressure Side | Low-Pressure Side | ||||
 | Flush Type | Flush Type | 3-inch | N/A | JIS 10K, 20K, 30K |
ANSI 100#, 300#, 600# | |||||
JPI Class 150, 300, 600 | |||||
DIN PN10/16, 25/40, 64 | |||||
 | Extended Type | Extended Type | 4-inch 3-inch | 2-inch 4-inch 6-inch | JIS 10K, 20K |
| ANSI 150#, 300# | |||||
| JPI Class 150, 300 | |||||
| DIN PN10/16, 25/40 | |||||
Combination | |||||
 | Extended Type | Flush Type | Low-Pressure Side: | Low-Pressure Side: | JIS 10K, 20K |
ANSI 150#, 300# | |||||
JPI Class 150, 300 | |||||
DIN PN10/16, 25/40 | |||||
Related Part Number:
EJA118E-JMSCJ-912NB-WA13A1SW00-AA25/D4 |
EJA118E-JMSCC-910DB-WA13B2SW00-AA24/TF1 |
EJA118E-JMSCG-919EJ-WD23C2HW00-BA23/KU22/X2/N4 |
EJA118E-JMSCG-919EJ-WD23C2SW00-BA23/KU22/X2/N4 |
EJA118E-JMSCG-919EJ-WD23C2SW00-BA2A/KU22/X2/N4 |
EJA118E-FMSCG-919DB-WA43C1SW00-2A24/X2/M2W/T58 |
EJA118E-FMSCG-919DB-WA13C1SW00-1A2A/X2/M2W/T52 |
EJA118E-FHSCJ-914DB-WA12B1SW00-AA2A/KS26/D3/M2W |
EJA118E-JMSCJ-919DB-WA42C2SW00-AA23/KS21/D3 |
EJA118E-JMSCJ-919DB-WA22C2SW00-AA27/KS21/D3 |
EJA118E-JMSCG-919DB-WA22C1SW00-BA26/KS21/M2W |
EJA118E-FHSCG-919DN-WA23C2SW00-BA2A/KS26/T56 |
EJA118E-JMSCG-92DDJ-WA23C2TW00-AA25/KS21/A/D4/M2W/T56 |
EJA118E-JMSCG-93DDB-WA12C1SW00-BA24/KU22/D4/M2W/T52 |
EJA118E-JMSCG-93DDB-WA12C1SW00-EA24/KU22/D4/M2W/T52 |
EJA118E-JMSCG-924DB-WA23C2SW00-AA25/KS21/D4/M2W/T56 |
EJA118E-FMSCJ-914DB-WA22B1SW00-AA25/KS26/D4/M2W |
EJA118E-FMSCG-919DB-WA23C1SW00-AA25/X2/D4/T56/M2W |
EJA118E-JMSCG-919DB-WA12C1SW00-AA25/X2/D4/M2W/T52/KU22 |
|
