Interactive Smart Digital Blackboard 86 Inch Screen with 4K UHD LED Panel and Multi-Touch Function

Interactive Smart Digital Blackboard 86 Inch Screen with 4K UHD LED Panel and Multi-Touch Function

Interactive Smart Digital Blackboard 86 Inch Screen with 4K UHD LED Panel and Multi-Touch Function
Interactive Smart Digital Blackboard 86 Inch Screen with 4K UHD LED Panel and Multi-Touch Function
Categories Smart Digital Blackboard
Screen Size: 86 inch
Chromaticity: 1.07B
Panel type: 4K UHD LED panel
Refresh frequency: 60Hz
Viewing angle: 178°(H) / 178°(V)
Interface Type: D-SUB, Serial, usb
Brightness uniformity: 75%
Color Gamut: 85% NTSC
Visible area: 1895.04 * 1065.96 mm
Pixel Pitch: 0.4935 * 0.4935 mm
Life: ≥ 30,000 (hrs)
Brand Name: MTHGH
Model Number: XYC-86
Certification: CE FCC
Place of Origin: China
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10000 Piece
Delivery Time: 7-10 Work Days
Overall brightness: ≥ 50cd/m²
Response time: ≤ 8ms (typ.)
Operating System: Window, Android, Mac, Linux
Packaging Details: Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.
Aspect Ratio: 16:9
Screen Contrast: 1200:1(Typ.)-Hard Screen 4000:1(Typ.)-Soft Screen
Resolution: 3840*2160
Backlight Type: D-LED
Contact Now
Company Info.
Xingyicheng (Shenzhen) Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Interactive Smart Digital Blackboard 86 Inch Screen with 4K UHD LED Panel and Multi-Touch Function

Interactive Smart Digital Blackboard IFP 86 Inch Screen Touch System
86 Inch 4K 3840 x 2160 P Display
CSOT / BOE / LG Grade A+ Panel Glass
178° / 178° Ultra-Wide View Angle
Dual Nano Wings Chalk & Marker Boards
Product Overview

The IFP 86 Inch Multi Smart Digital Blackboard is a modern educational station that merges ultra-high-definition display engineering with capacitive touch technology to transform traditional classroom dynamics. Featuring an expansive 86-inch 4K D-LED central screen flanked by magnetic nano sub-boards, it delivers an intuitive platform for interactive lectures and collaborative group work.

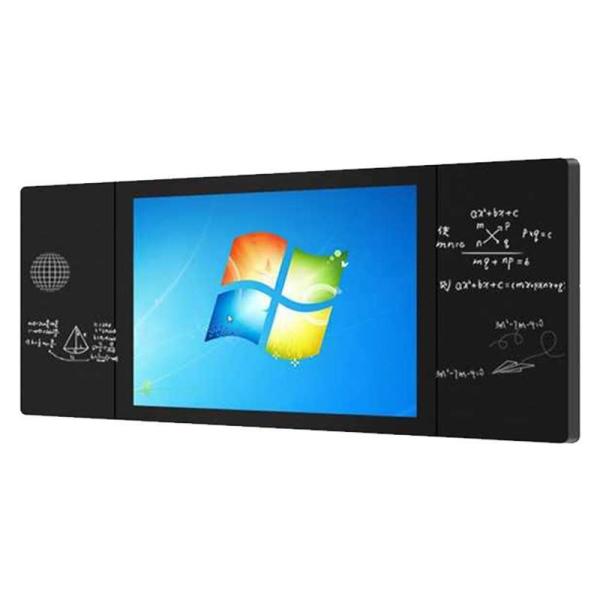

A smart blackboard showing a blue desktop screen with math formulas written on the side wings
Key Features
Resource Hub
Online Teaching Library

High-speed LAN/Wi-Fi connectivity allows educators to download courseware and stream live educational media.

Interactivity
Multi-Point Touch Panel

Direct screen annotation, digital map marking, and real-time student interaction without latency.

Multimedia
Audiovisual Playback

Integrated stereo sound drivers and D-LED backlighting supporting 1.07B colors and HDR processing.

Control
One-Touch Switching

Effortlessly adjust screen brightness, toggle signal inputs, or transition between Windows and Android environments.

  • Rich Teaching Resources: Internet connectivity allows teachers to download and share courseware and educational applications.
  • Enhanced Interactivity: Students participate directly in lessons through multi-touch screen tools and annotation widgets.
  • Multimedia Support: Comprehensive media playback including 4K video, audio streams, and interactive educational animations.
  • Convenient Operation: Quick signal switching, anti-blue-light filtering, and real-time cloud collaboration tools.
An angled side view of a wide multi-panel dark smart blackboard setup highlighting chassis thickness
Display Specifications
ParameterSpecification Value
Screen Size86 Inch Central D-LED Panel
Panel ManufacturerCSOT / BOE / LG Grade A+ Glass
Visible Display Area1895.04 x 1065.96 mm
Resolution3840 x 2160 P (4K Ultra HD)
Aspect Ratio16:9 Widescreen
Overall Brightness≥ 350 cd/m² [typical]
Brightness Uniformity75% Uniform Luminance
Screen Contrast Ratio1200:1 (Hard Screen) / 4000:1 (Soft Screen)
Response Time≤ 8 ms (typical)
Pixel Pitch0.4935 x 0.4935 mm
Refresh Frequency60 Hz
Viewing Angles178° (Horizontal) / 178° (Vertical)
Panel Lifespan≥ 30,000 Hours Continuous Operating Life
Color Gamut & Chromaticity85% NTSC, 1.07 Billion Colors (10-bit)
Eye Protection & BacklightHardware Net Blue Light Filter & D-LED Backlight
Left & Right Sub Boards
CategorySpecification Details
Sub Board Surface TypeNano Honeycomb Matte Blackboard (Supports Dustless Chalk & Magnetics)
Sub Board ColorMatte Black Non-Reflective Surface
Board QuantityLeft Sub-Board x 1, Right Sub-Board x 1
Physical Dimensions(1108 x 1240.35 x 94) mm per side board
Chalk TroughFull-Length Lower Storage Trough Supported
Safety CornersRounded ABS Protective Safety Corners
Applications & Classroom Impact

The interactive smart digital blackboard plays a central role in modern education. By enabling teachers to blend classic chalk writing on magnetic nano wings with 4K touch-screen interactivity, students remain actively involved throughout lessons. Dual OS support allows seamless execution of specialized software in both Windows and Android environments.

A wide black board with a central display showing a young student participating during a lesson An angled smart board showing a teacher working with a young child on the main screen during a lesson
Frequently Asked Questions
What glass panel brands are utilized in the 86-inch display?
We utilize Grade A+ D-LED panels sourced directly from premier manufacturers including CSOT, BOE, and LG, delivering 3840x2160 4K UHD resolution and 178° wide viewing angles.
How do the left and right sub-boards function?
The flanking sub-boards are built with nano-honeycomb matte black surfaces that support traditional dustless chalk, liquid markers, and magnetic teaching aids while protecting against glare.
Does the 86-inch Smart Blackboard support dual operating systems?
Yes, the system seamlessly supports dual OS functionality, enabling teachers to switch between Windows and Android environments with a single touch.
What eye-protection features are built into the display?
The display includes hardware-level Net Blue Light filtering and anti-flicker D-LED backlighting to protect student vision during prolonged classroom sessions.
Product Gallery & Synchronized Devices
A smart blackboard and a synchronized tablet below both displaying school children
Synchronized Screen Mirroring
Two stacked smart displays showing students raising hands and actively participating
Interactive Classroom Collaboration
A wide smart display showing a dark scenic landscape background highlighting display quality
4K Display Panel Clarity Test
