Led Lcd Display Flush Diaphragm Pressure Sensor Smart Type Pressure Transmitter

Categories Smart Pressure Transmitter
Certification: CE,RoHs,ISO9001
Place of Origin: Baoji,China
Brand Name: HT sensor
MOQ: 1
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 5-8 work days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000PCS/Month
Model Number: BPHT24-IX
Model NO.: BPHT24-IX
Accuracy Grade: 0.5%F.S
Pressure range: -100kpa...0kpa ~10kpa...35MPa
Weight: ~0.2kg
Housing Material: 304 S.S
Pressure Type: Gauge/Absolute/Sealed
Measuring Medium: Air and Liquid
IP Rating: IP65
Customization: Available | Customized Request
Output Signal Type: Analog/Digital
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Led Lcd Display Flush Diaphragm Pressure Sensor Smart Type Pressure Transmitter

Led Lcd Display Flush Diaphragm Pressure Sensor Smart Pressure Transmitter

BPHT24-IX Pressure Transmitter


Introduction of Smart Pressure Transmitter :


BPHT24-IX pressure transmitter The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. This pressure transmitter is primarily used in places where high sanitary conditions are required, ensuring reliable and accurate pressure measurements in hygienic environments.The flush diaphragm pressure sensor is equipped with a liquid crystal display screen, which can visually display the current measured pressure value, which is convenient for users to obtain real-time pressure information


Product Features:


1. Various pressure interface options
2. Designed for hygienic applications to prevent medium scaling
3. High accuracy with a fully stainless steel structure
4. Easy to clean

Applications:


1. Suitable for measuring non-corrosive gases and liquids with 316L
2. Ideal for environmental protection and chemical industries
3. Used in the marine and aviation industries


Performance Parameters
Measurement Range0~35Kpa…~20MPa
Pressure TypeGauge Pressure, Absolute Pressure, Sealed Pressure
Overload≤ 1.5 times of the rated range
Accuracy @ 25ºC±0.25% (Typical) ±0.5% (Maximum)
Repeatability& Hysteresis0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response2.4Khz
Compensation Temperature0-70ºC(≤10mpa,customizable)
Operating Temperature-20ºC~80ºC
Storage Temperature-40ºC~120ºC
Vibration10g,55Hz ~ 2kHz
Housing Material304,316L
Diaphragm Material316L
Insulation Resistance100MΩ 100VDC
Explosion-proof RatingEx db IIC T6 Gb
Protection RatingIP65
O-Ring SealFluoro rubber
Weight~0.2kg

Output Signal

Supply VoltageOutput Type
4~20mA12~30VDC2/3/4 wire
0/1~5V
0/1~10V

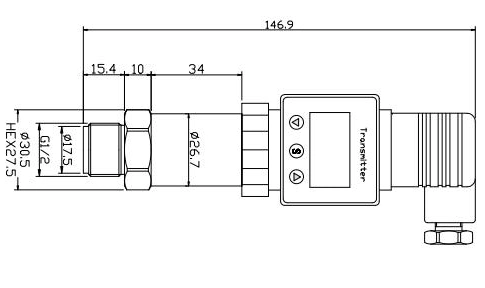

utline Construction
DimensionHt Digital LCD Flush Diaphragm OEM Pressure Transmitter for Beverage Industry

LED LCD Display Pressure Ht Series Flat Diaphragm Silicon Pressure-Resistance Transmitter

Order Guide
BP93420XXPressure Transmitter
CodeOutline Construction
IXDisplay Pressure TransmitterIIC/IIIIndustrial General/ Display Pressure Transmitter
Measurement Range0~35Kpa…~20MPa
(0-X)Kpa or MPaX: Indicates the Actual Measuring Range
CodePower Supply
D124VDC
D3Other
CodeOutput Signal
S14~20mADC
S21~5VDCS60~10VDC

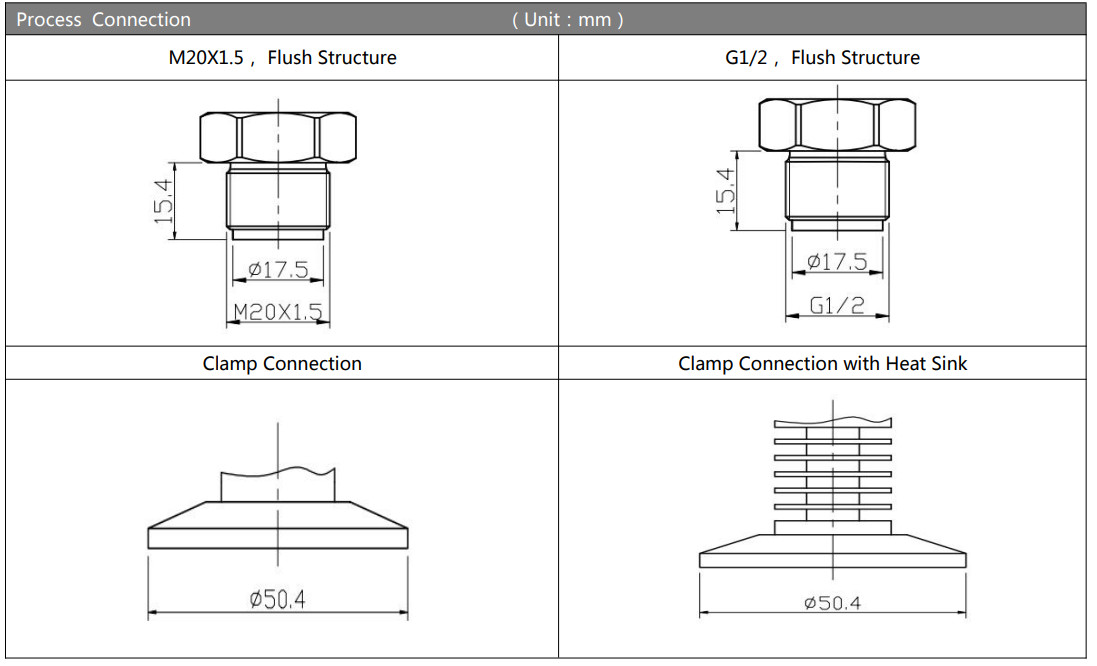

CodePressure Connection
J1M20×1.5
J2G1/2
J31/2NPT
CodeElectrical Connection
B1Hirschmann
B2PG7 Plug
B3Sealed Cable Output
B42088 Industrial Casing
B52088 Industrial Casing with Display
B6Other
CodePressure Type
GGauge Pressure
AAbsolute Pressure
SSealed Reference Pressure
