2 Axis 2kg Version Electro Optical Surveillance System Gimbal UAV Zoom Camera

2 Axis 2kg Version Electro Optical Surveillance System UAV Gimbal Camera

Being a network version gyro stabilized electro optical tracking system, TS170C-03 has 1 channels RS422 and 1channel 100mb ethernet video output,built in 30X EO sensor, with resolution of 640x512 uncooled LWIR and 4km laser rangefinder,360° continuous rotation servo motor, the total weight about 2.4kg.TS170C-03 airborne electro optical system

Functions

1. Provide the infrared video and image for detection area

2. High precision visual axis stabilization

3. With the capability of detection and recognition for ground target

4. Support search, tracking, lock, guiding, etc working ways

5. With character overlay, custom and display

6. With self - check and fault diagnosis

7. Support target postion and laser ranging

8. Self-inspection and fault diagnosis

Specifications

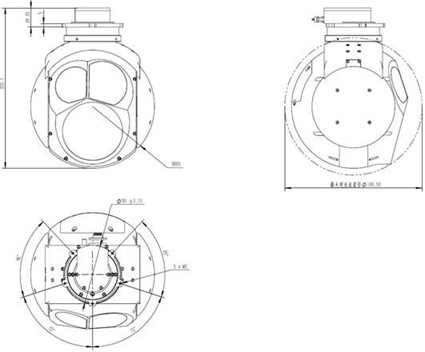

Mechanical Drawing

Cautions​

1)Dont touch the detector window with your hands or other objects

2)Don't plug or remove the connector without disconnecting the power supply

3)Connect power supplies and signals according to the interface definition to prevent device damage

4)Don't disassemble the equipment. If there is any fault, please contact HONPHO forprofessional maintenance.
