Categories | Gear Pump Filling Machine |
---|---|
Brand Name: | JYJ |
Model Number: | JYJ-DK-CL |
Certification: | CE,ISO |
Place of Origin: | GUANGZHOU |
MOQ: | 1 |
Price: | Negotiable |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1/7 Days |
Delivery Time: | 15 work days |
Packaging Details: | WOODEN CASE |
Material: | SUS304 |
After-sales: | Online service |
Conditon: | New |
Application: | Filling |
Automatic grade: | Full-automatic |
Motor type: | AC Motor |
Color: | Silver |
Warranty: | 1 Year |
Company Info. |
Guangzhou Jingyijin Machinery Equipment Co., Ltd |
Verified Supplier |
View Contact Details |
Product List |

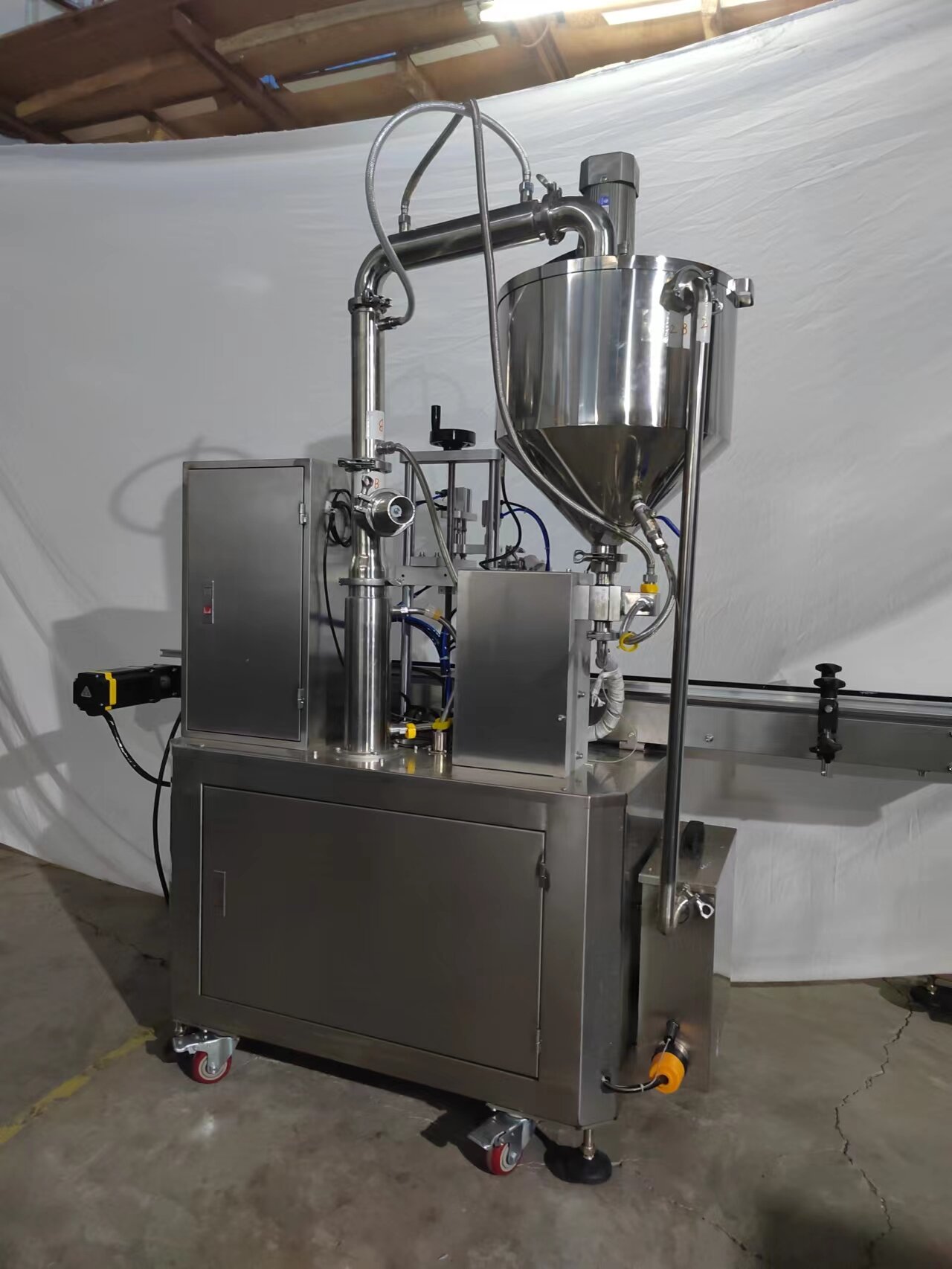

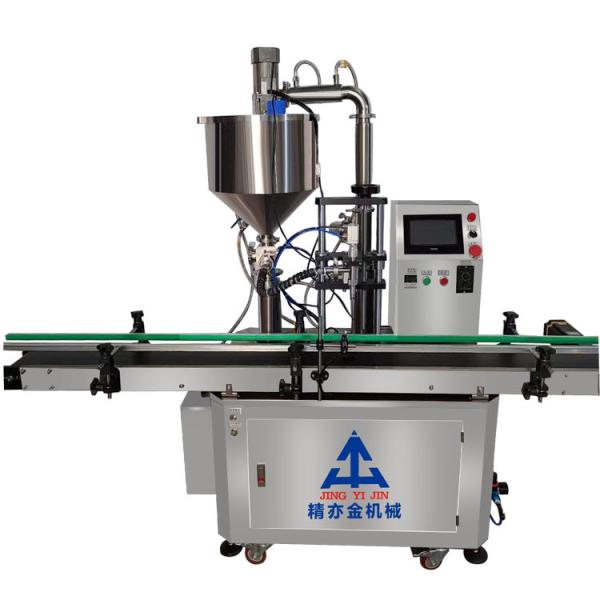

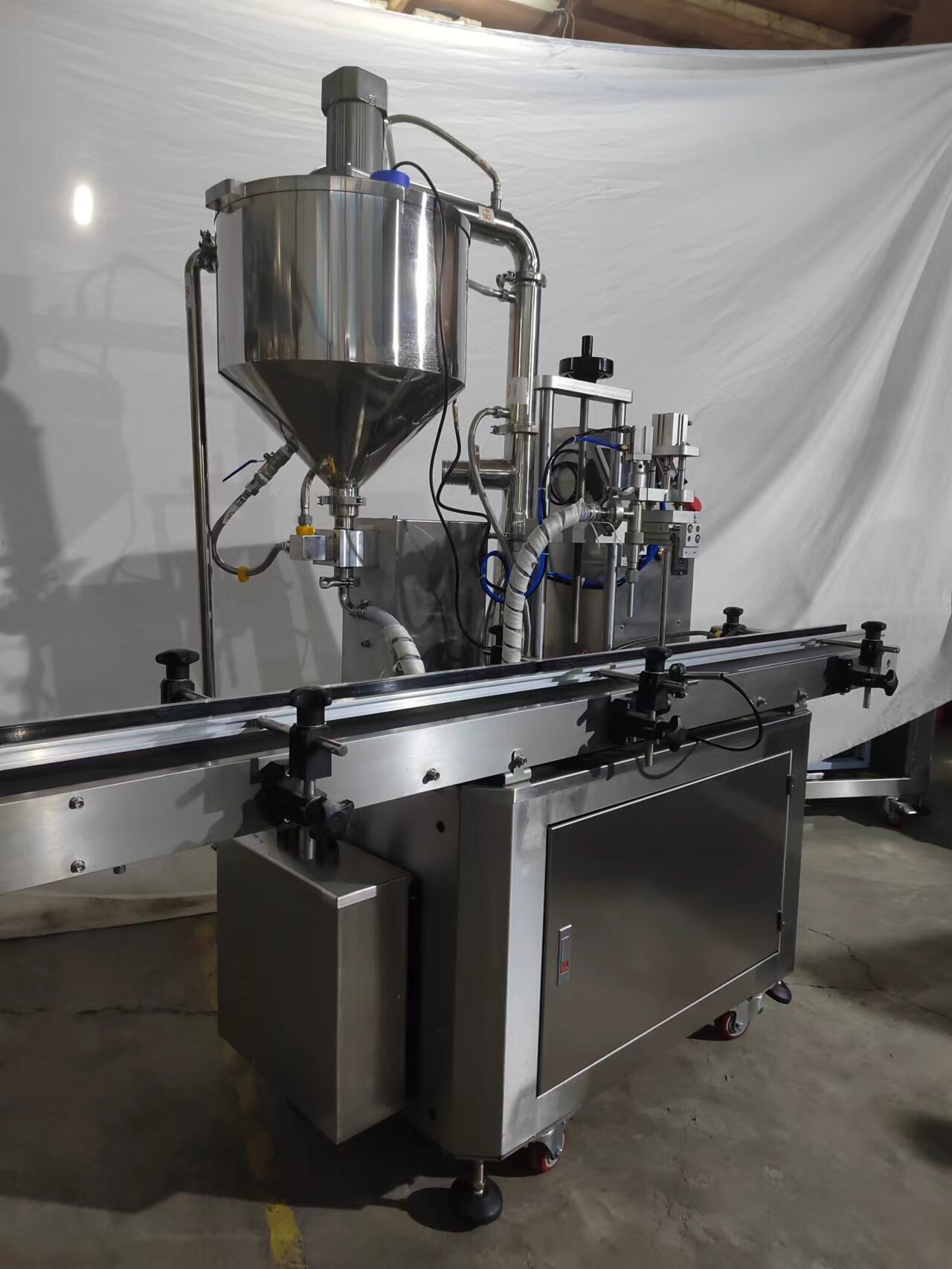

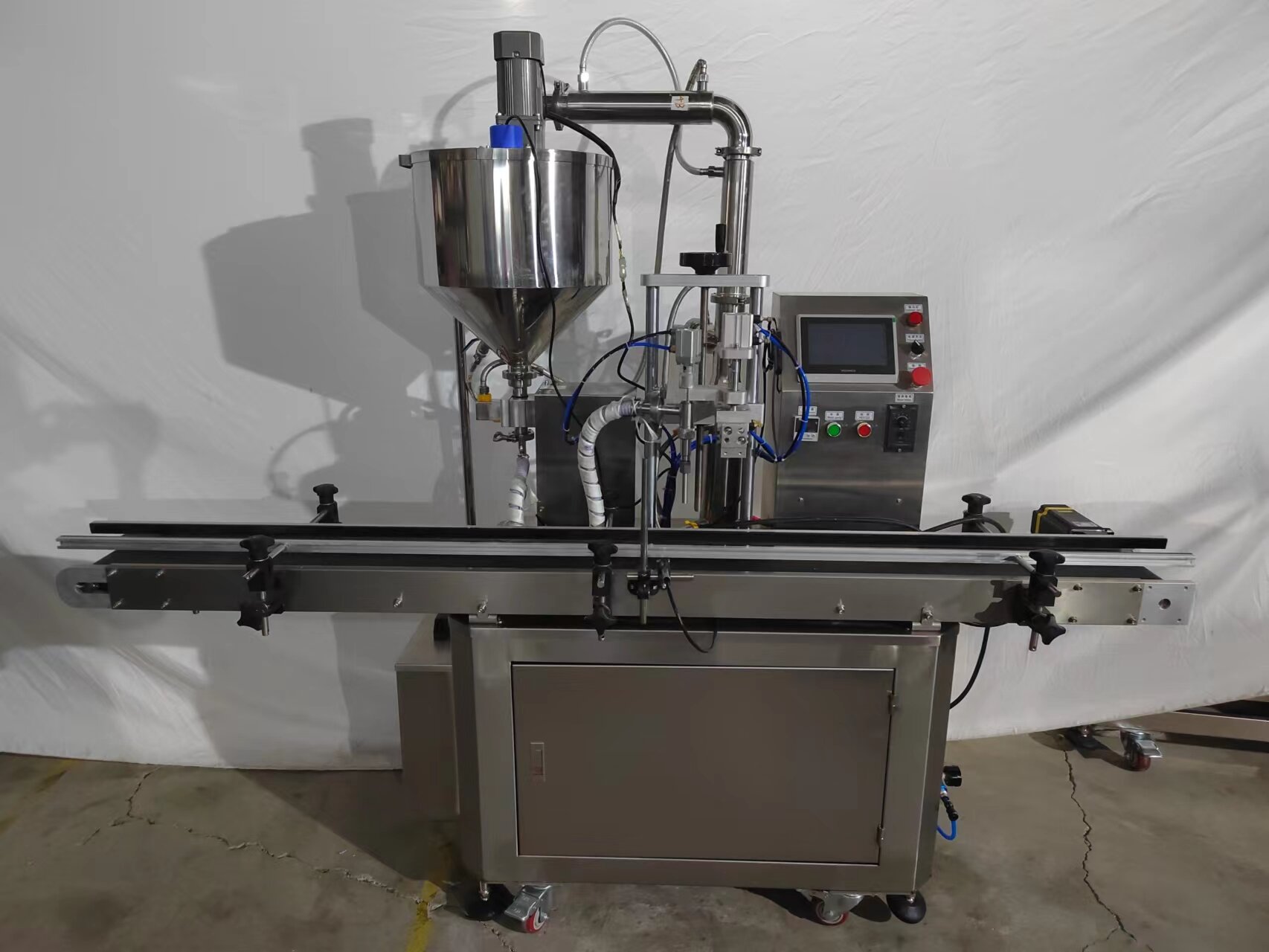

Servo Single Head Gear Filling Machine is a heating and dosing
machine for cream products.
Supply Voltage | 220V |
Pneumatic | 5-8kg |
Power | Approx 1200w |
Number of filling heads | 1 head |
Filling precision | Approx. ±1% (water test) The actual output depends on the volume and viscosity of the material. |
Lifting structure | Pneumatic elevator |
Complementary structures | Pneumatic replenishment |
Overall dimensions | 2000mm*760mm*1500mm |
Main Configurations:
Chassis Material | 304 stainless steel |
Pump head material | 316L stainless steel |
Pump head material | 316L stainless steel |
Pump Head Connection Motor | servo motor |
Switching mode power supply | Taiwan Meanwell |
Relay (electronics) | Schneider |
Solenoids | Adecco, capital of Saudi Arabia (Tw) |
Transducers | Glitter |
Conveyor Belt Motors | 0.75KW INOVANCE servo motor |
Belt | Belt width 17CM, stainless steel width 20CM |
Belt length | 200CM |
PLC Controllable | INOVANCE |
Operation panel | INOVANCE |
Pneumatic Components | Domestic Cylinder |
![]() |
