| Categories | Double Twist Stranding Machine |
|---|---|
| Brand Name: | Hopda |
| Certification: | ISO,CE |
| Place of Origin: | China |
| MOQ: | 1 set (Stranding host can be ordered separately) |
| Price: | negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 sets per month |
| Delivery Time: | if no stock in place, 30-60 calendar days |
| Packaging Details: | Standard packaging, Cargo shipment |
| Model Number: | 1250 |
| Inlet Wire Diameter: | 1.0mm - 3.0mm |
| Max. Outer Diameter: | 10mm |
| Stranded section: | 3.5-70mm2 |
| Stranding Pitch range: | 40-350mm |
| Bow Rotation Speed: | max. 800 rpm |
| Line speed: | Max. 150m/min |
| Applicable Reel Size:: | Ø1250*960*Ø80 |
| Main Motor: | ISMG2-42D15CD-U131FA |
| Traction Motor: | ISMG1-22D15CD-U131FA |
| Installed Power: | 90KW |
| Daily Operation Power: | 15KW |
| Company Info. |
| Jiangsu Hopda Machinery Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

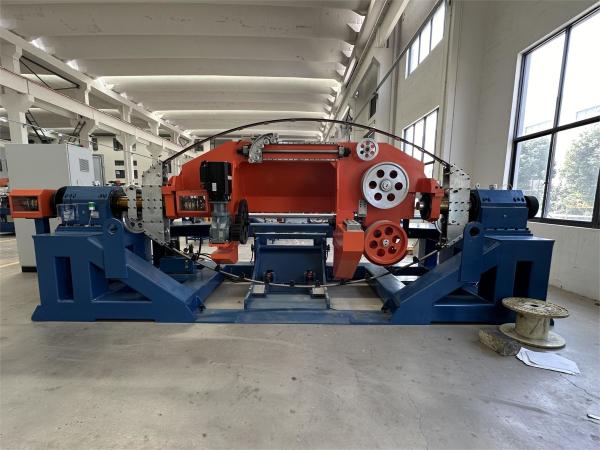

Our double - twist strander can be used for twisting multi - strand bare copper, aluminum and aluminum alloy wires as well as coated cored wires like rubber wires, power wires and control cables. Our model is different from others' in several main aspects:
1. Line speed can reach up to 140 m/min
2. High-tech temperature control system combined with powerful compressor to achieve non-stop operation
3. Carbon-fibre bow part for extra stiffness and lightness
4. Intelligent communication module for reduced number of circuits
5. Servo motor for saving up to 15% energy
Technical specification:
| Specs/Model | DTE-1250D | DTE-1600D | DTE-2000D |
| Inlet wire diameter(mm) | Ø1.0-3.0 | Ø1.5-4.8 | Ø1.5-4.8 |
| Stranded section (1+6+12)(mm2) | 3.5-70 | 16-240 | 16-240 |
| Stranded section (1+6)(mm2) | 3.5-50 | 16-50 | 16-50 |
| Bunching section (Cu)(mm2) | 3.5-50 | 16-150 | 16-240 |
| Bunching section (Al)(mm2) | 3.5-70 | 16-240 | 16-300 |
| Max.stranded diameter(mm) | Ø10 | Ø25 | Ø35 |
| Max. Compression ratio | 85-90% | 85-90% | 85-90% |
| Max. Line speed (m/min ) | 70-150 | 170-200 | 170-200 |
| Rotation speed (rpm) | 800/max. | 500/max. | 350/max. |
| Pitch (mm) | 40-350 | 50-600 | 60-600 |
Production line composition:
Standard configuration includes:
1. Pay-off stand (normally 7-head up to 19-head)
2. Tension stand
3. Rotary wire assembly rack (where wires come together and form one strand)
4. Stranding host (which holds the take-up bobbin and where the actual rotation happens)
Terms and conditions:
The Double Twist Stranding Machine is a high-performance piece of equipment designed to provide efficient stranding of wires and cables. Our product technical support and services include:
Our team of experienced engineers and technicians is committed to providing you with the best possible support and services to ensure your Double Twist Stranding Machine operates at peak performance levels and meets your production needs.
