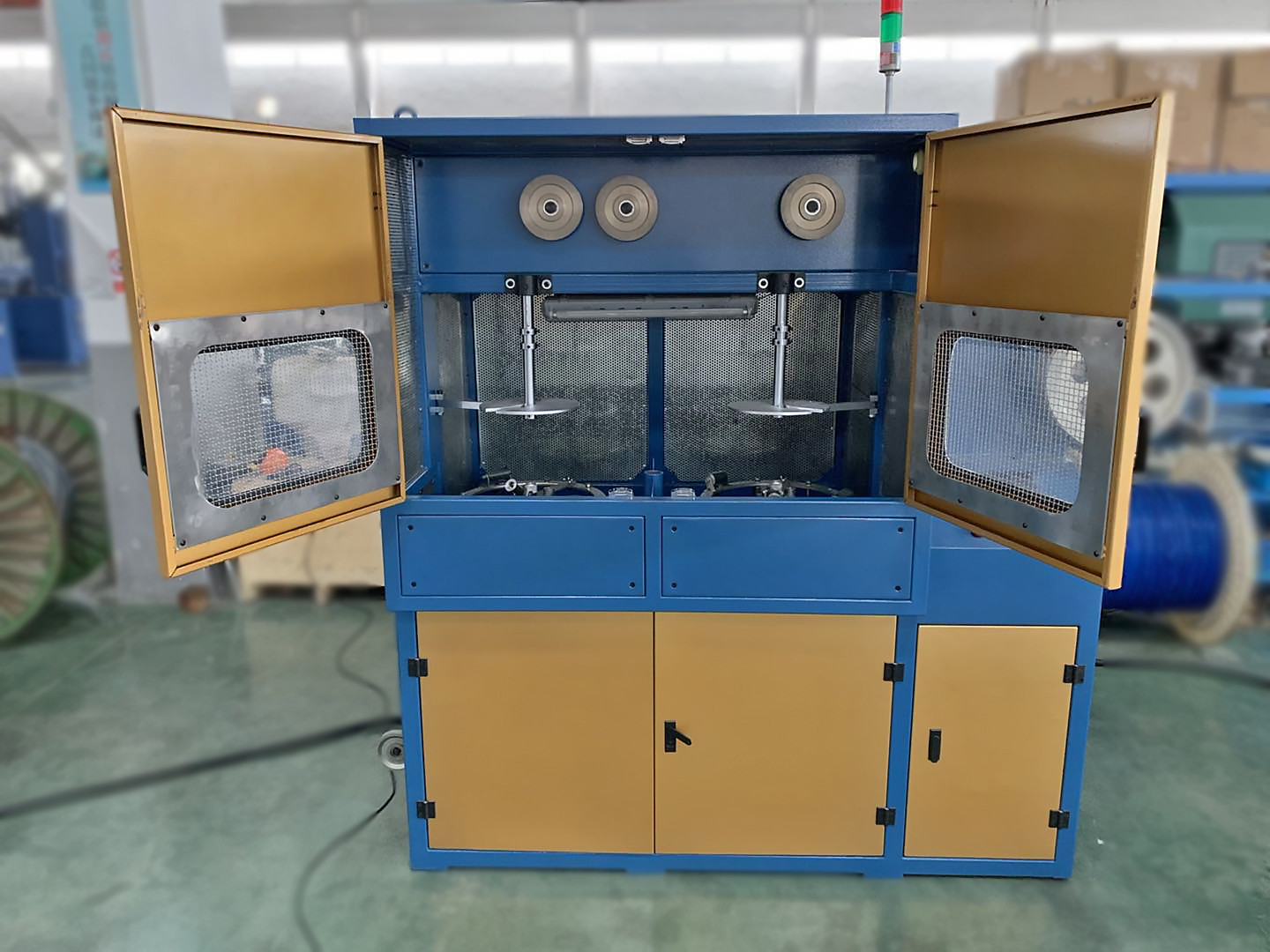

High Speed Constant Tension Taping Device For Cable Strand

High Speed Constant Tension Taping Device For Cable Strand Color Customized

Technical specification

Application:

Applied to tape vertically for copper wire, insulation wire and twisted-cable,etc. The tapping material is mica tape, aluminum foil, fireproof tape, PET foil, etc. The new version machine could store 10 times the quantity of the tape as the old type. The production efficiency is very high because the production is continuous.

Features:

• The tape could be used continuously. The machine could store 10 times the quantity of the tape as the old type.
• The production efficiency is more than twist that of the original model.
• Good traversing:Take-up traversing adopted axis-row type structure, spacing can be set arbitrary.
• Axis-row type structure for take-up traversing, spacing can be adjusted according your need.
• Excellent tension control during the whole taping process, enabling for constant tension with no human intervention.

Product Description

A high-speed constant tension taping device for cable strand with color customization is a specialized piece of equipment used for applying tape or other protective layers to cable strands while maintaining a consistent tension throughout the taping process. This device is designed to operate at high speeds and offers the flexibility to customize the color of the tape for identification or aesthetic purposes.

Here are some key features and characteristics of a high-speed constant tension taping device for cable strand with color customization:

1. Constant Tension Control: The device incorporates a tension control mechanism that ensures a consistent tension is maintained as the tape is applied to the cable strands. This helps to achieve uniform taping and prevents overstretching or slackness of the tape.

2. High-Speed Operation: The device is designed for high-speed taping, allowing for efficient production and increased output. The specific speed capabilities may vary depending on the device model and manufacturer.

3. Color Customization: The device offers the capability to customize the color of the tape used for taping the cable strands. This allows for easy identification of different cable types or strands, or it can be used for aesthetic purposes.

4. Material Compatibility: The device is compatible with various types of tape commonly used for taping cable strands, such as PVC, polyester, fabric tapes, or other synthetic materials. The selection of the tape material will depend on the specific requirements of the application.

5. Adjustable Parameters: The device may have adjustable parameters such as tape tension, tape width, and taping pitch, allowing for customization based on the cable strand size and taping requirements.

6. PLC Control Panel: The device may feature a programmable logic controller (PLC) control panel for easy operation, parameter adjustment, and monitoring of the taping process. The PLC control panel allows for precise control and customization of the device's functions.

7. Color Detection and Switching: In cases where color customization involves switching between multiple colors, the device may incorporate a color detection system or an automated switching mechanism to ensure accurate and efficient color changes during the taping process.

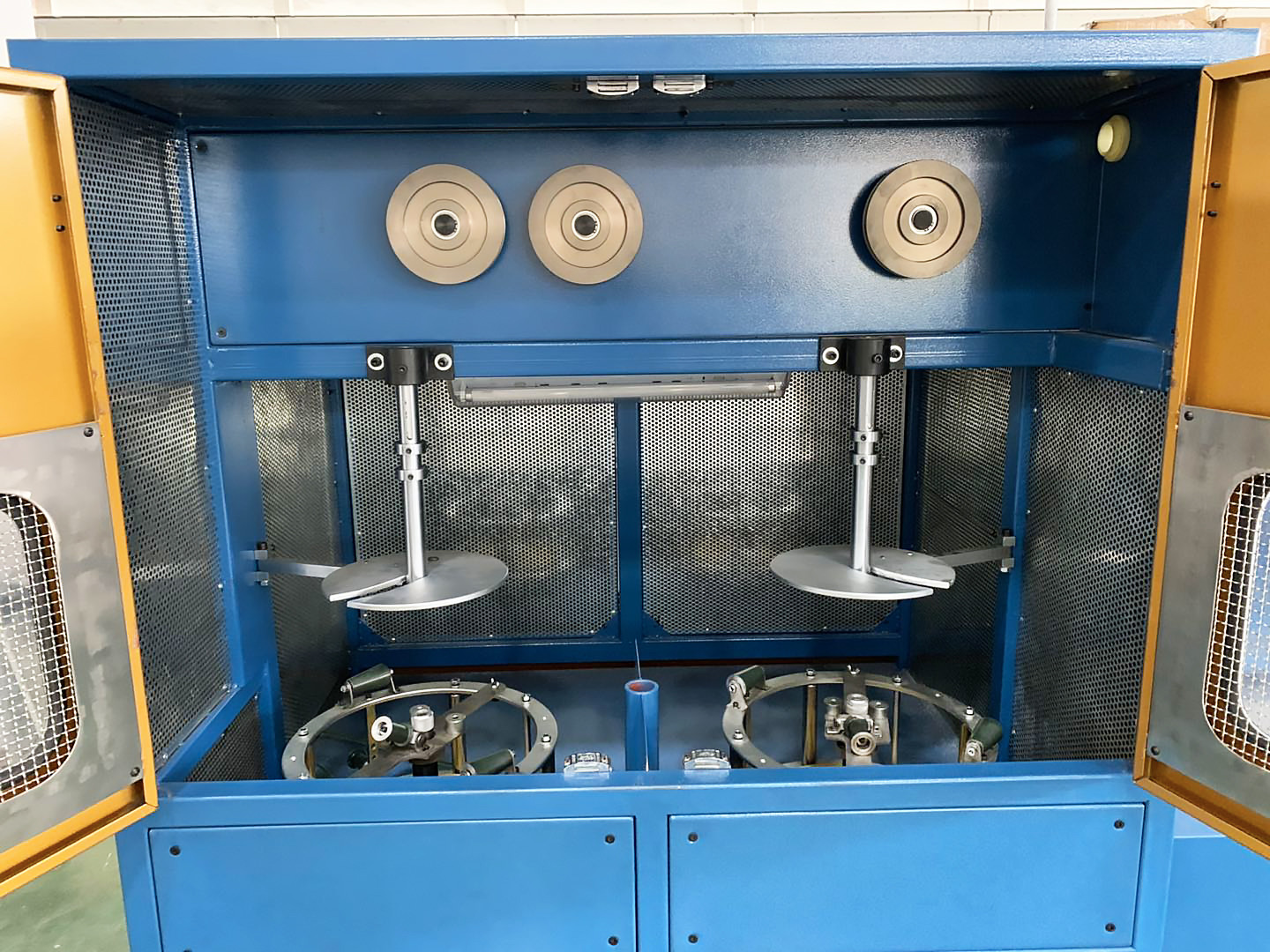

Product Details

Jiangsu Hopda Machinery Co., Ltd. was founded in 1989 and is located in the Guanlin Industrial Zone of Yixing City, Jiangsu Province, China. The company covers an area of 45,000 square meters, with a production workshop of 40,000 square meters. Currently, it has 260 employees, including over 60 engineering and technical personnel. We are a technology-oriented enterprise specializing in the research, development, design, manufacturing, and service of intelligent cable production. The company boasts more than 50 sets of large-scale production equipment with assets totaling nearly 100 million RMB.

In this new era of development, with a commitment to revitalizing the national industry, we will continue to make “high efficiency, high quality, and low energy consumption” as the core of intelligent manufacturing. We stand firm with confidence, and alongside our partners, we will contribute to the community through industrial development.
