Three Phase Energy Meter Test Equipment Lab Electric Meter Testing Equipment

Categories Stationary Meter Test Equipment
Brand Name: GENY
Model Number: YC1893D
Certification: ISO, CE
Place of Origin: China
MOQ: 1
Price: negotiate rates
Payment Terms: T/T, L/C, D/P, T/T
Supply Ability: 5 sets / 1 months
Delivery Time: 6~8weeks
Packaging Details: Plywood cases
Accuracy Class: 0.01% / 0.02%
Number Of Meter Positions: 3 / 6
Power Source: YCS-103-X
Structure: All-in-one
Usage: Energy Meter Calibration, Lab Research
Power of the voltage output: 3x200VA
Stability: Better than 0.002% /h
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

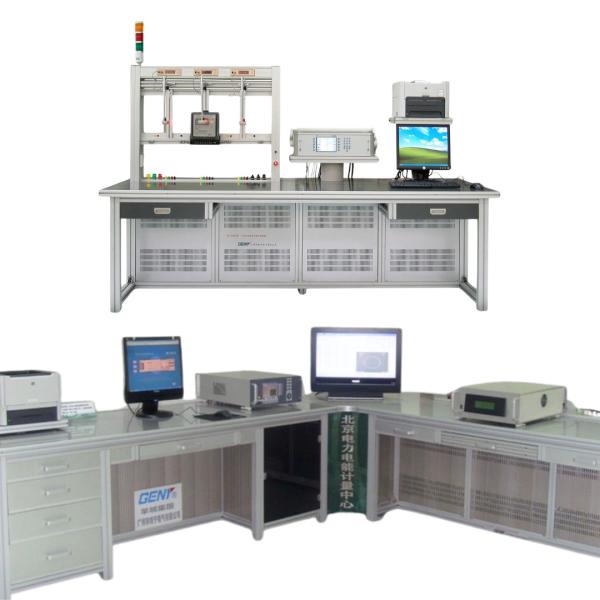

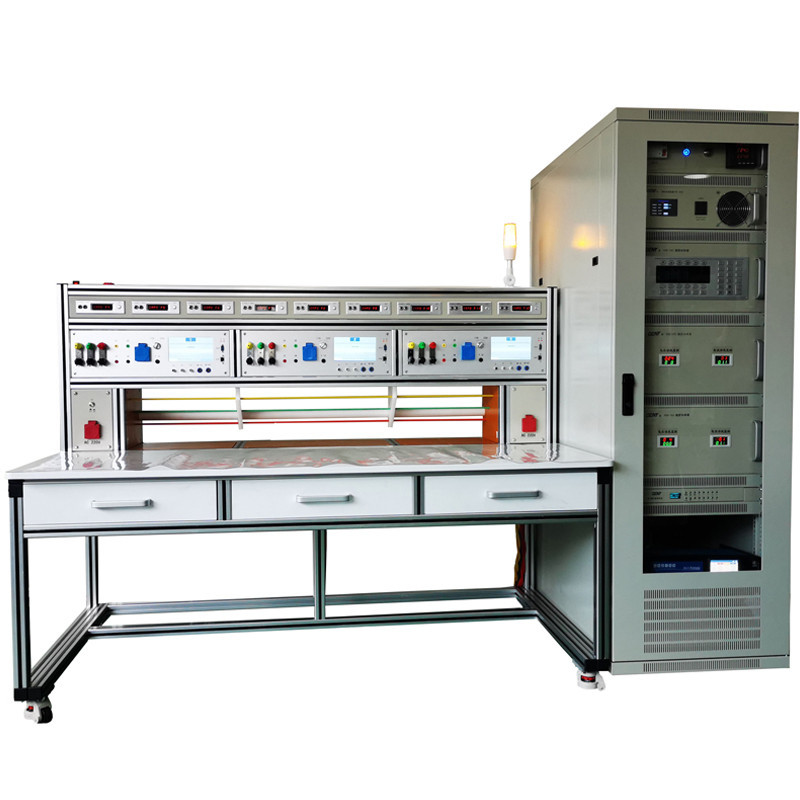

Three Phase Energy Meter Test Equipment Lab Electric Meter Testing Equipment

High Accuracy Three Phase Energy Meter Test System for Electric Metering Lab

High Accuracy Three Phase Energy Meter Test System for Electric Metering Lab Applications

Applications:

1. Nation-level utility companies

2. Governmental bureaus of metrology

3. Big energy meter manufacturers

4. Laboratory of electric energy metering

Specifications:

Technical Speciation
Number Of Meter Positions3 / 6
Accuracy Class0.01% / 0.02%
Power SourceYCS-103-X
Reference Standard Meter

ZERA: COM3003

RADIAN: RD33-233

EMH/MTE: K2006

GENY: SZ03A-K8

Scanning HeadYCG-S Series
Voltage
Test voltage output(Phase-Neutral)3x(40V~500V)(or customized)
Power of the voltage output3x200VA
ResolutionBetter than 0.001% of full scale value of range
StabilityBetter than 0.002% /h (integration time 150s)
Load regulation from 0~max. loadBetter than 0.01%
Distortion factorBetter than 0.05% for linear resistance load
Harmonic2nd~21st free programmable
Current
Test current output3x (1mA~120A) max. to 230A
Power of the current output3x300VA
ResolutionBetter than 0.001% of full scale value of range
StabilityBetter than 0.002% /h (integration time 150s)
Load regulation from 0~max. loadBetter than 0.01%
Distortion factorBetter than 0.05% for linear resistance load
Harmonic2nd~21st free programmable
Phase angle
Range0~360⁰
Resolution0.01⁰
Frequency
Range45Hz~65Hz
Resolution0.001Hz
Error display
Type of error displayRed LED
Resolution of error displays8 digitals
Other
Voltage supply

3x220/380V±10%(or customized)

50/60Hz ±2Hz

Ambient temperature-10°C~+40°C
Relative humidity35%~85%

Description:

1. The meter test equipment can measure mechanical meter, electronic mechanical meters and electronic meter by ways of automatic, semi-automatic or manual operation

2. Testing mode: active power, reactive power, cross connected reactive power

3. Meters under testing: 1P2W , 3P4W, 3P3W

4. Simultaneously measure meters with same specifications but different meter constants

5. Automatic positioning rotor mark of disc of mechanical meter, with more efficiency

6. Creeping Test and Starting Test

7. With the protection function of short voltage circuit, overload and open current circuit

8. Aluminum alloy material, light and strong and corrosion resistant

9. The testing software with friendly Windows XP/ 7 /8 /10 operation system, includes functional module of all kinds of modern energy meter needed, to reality error test, harmonic test, demand test, influence test etc,.

Primary Competitive Advantages:

1. High quality product

2. Highest accuracy class: 0.01/0.02

3. Extremely high power stability

4. Influence test of voltage, frequency, and harmonic

5. Installing RS232, Ethernet communication port in each meter position.

6. Over 18 months long warranty and extends to 36 months in capable
