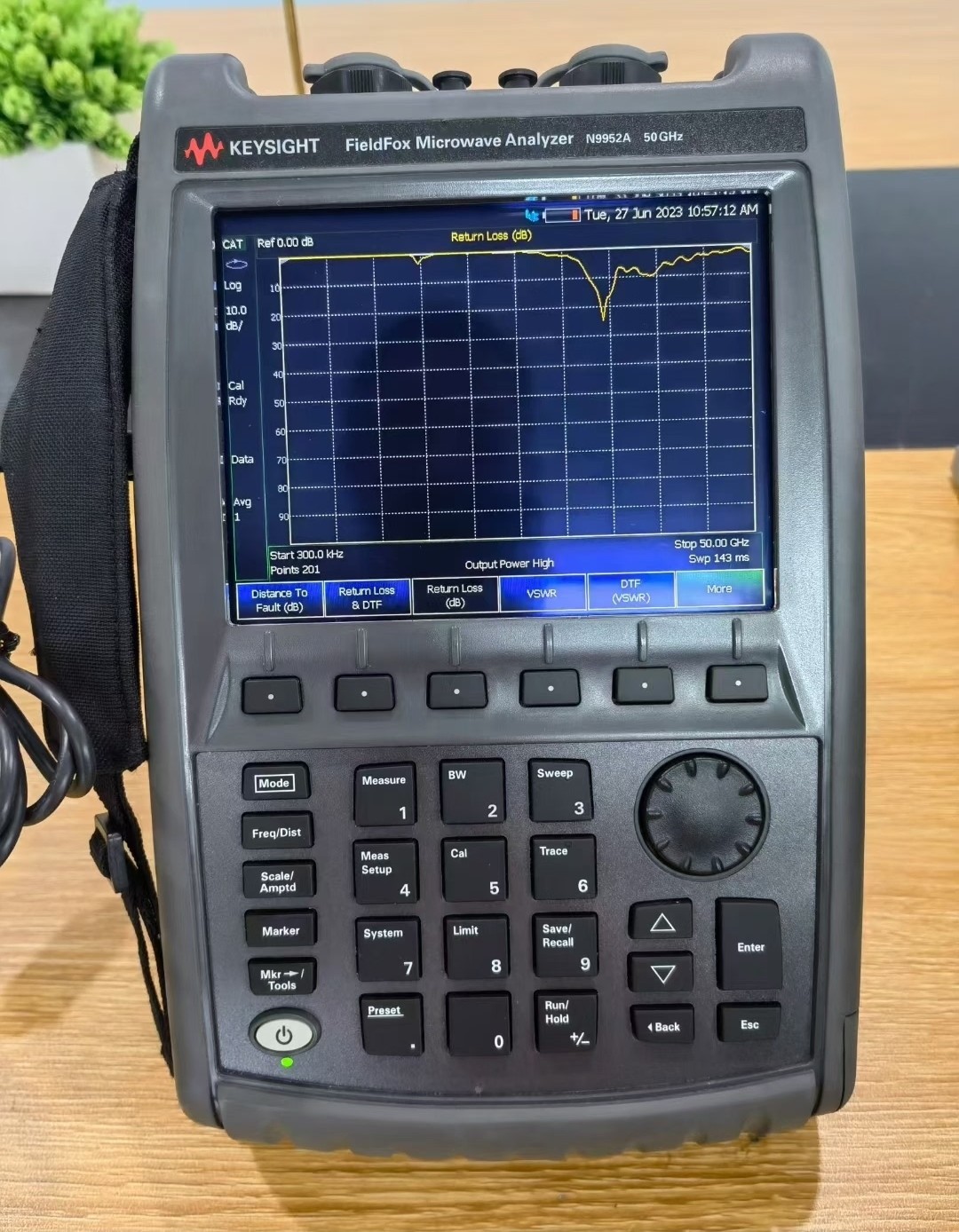

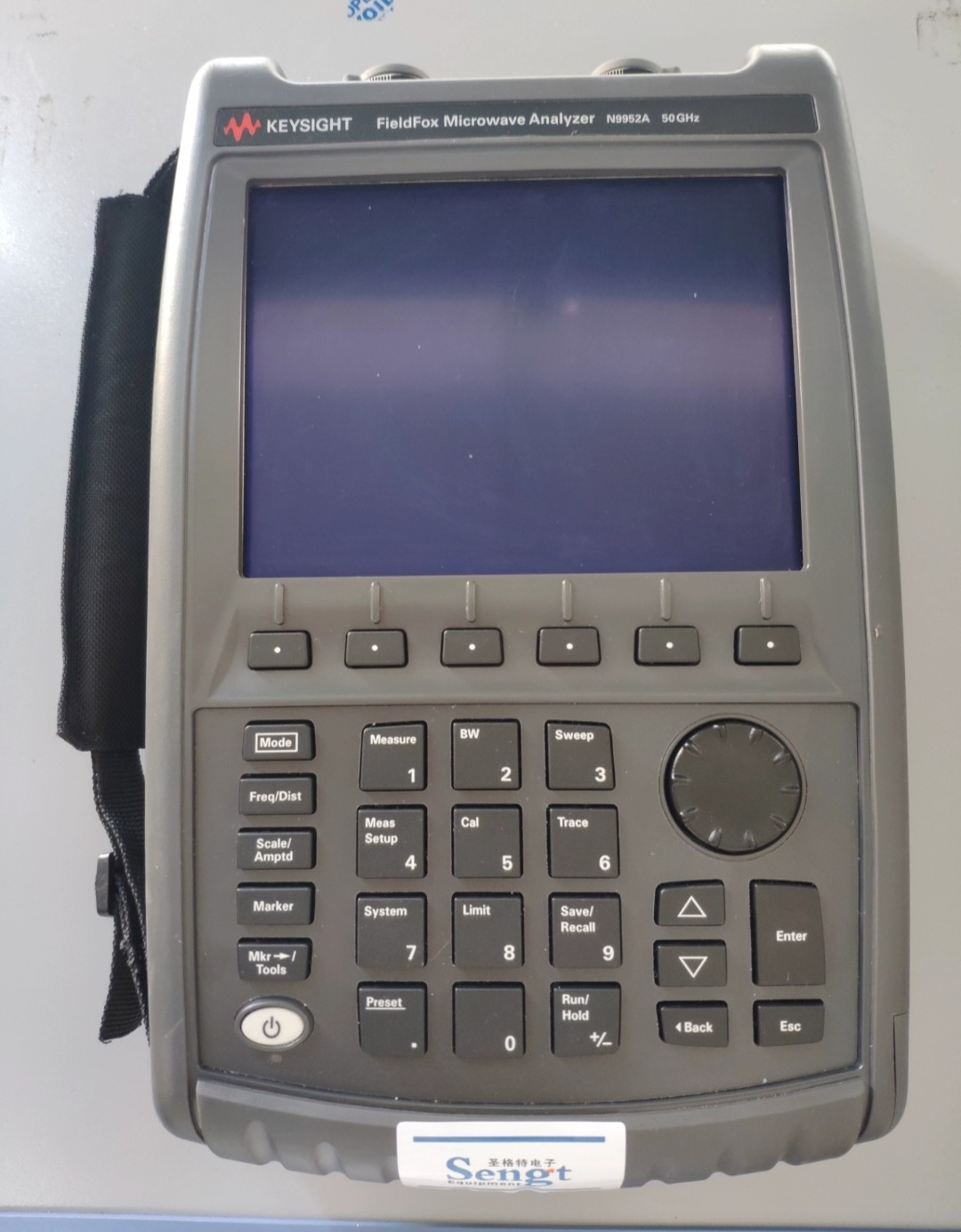

Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer, 50 GHz

Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer, 50 GHz

Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer, 50 GHz
Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer, 50 GHz
Categories RF Spectrum Analyzer
Brand Name: Keysight
Model Number: N9952A
Place of Origin: Malaysia
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Product Name: Handheld Microwave Analyzer
Frequency: 50 GHz
Condition: Pre-Owned
Functions: Tested, in Full Working Conditions
Portable: yes
Contact Now
Company Info.
Shenzhen Meigaolan Electronic Instrument Co. Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Portable Keysight Agilent N9952A FieldFox Handheld Microwave Analyzer, 50 GHz

Portable Keysight (Agilent) N9952A FieldFox Handheld Microwave Analyzer, 50 GHz


Description of Keysight (Agilent) N9952A


  • 50 GHz max frequency
  • Carry industry’s first 50 GHz handheld µW analyzer: standard model includes cable and antenna analyzer
  • Expand capabilities with optional VNA, spectrum analyzer, built-in power meter, vector voltmeter, and more
  • Save time by measuring DTF and TDR in a single sweep
  • Simultaneously measure all four S-parameters
  • Make accurate SA measurements (± 0.5 dB) without needing warm-up
  • Easily measure average and pulse power with a USB sensor
  • Lightest all-in-one analyzer at only 7.1 lb. (3.2 kg)

Maximum Frequency50 GHz
Minimum Frequency300 kHz
SA Start Frequency5 kHz
System Dynamic Range110 dB
Best Speed at 1001 Point, 1 Sweep478 us/pt
Output Power4 dBm
Trace Noise0.004 dB
Number of Built-In Ports2 ports
Instrument TypeCombination Analyzer
Cable and Antenna AnalyzerYes - Standard
Spectrum AnalyzerYes - Optional
Vector Network AnalyzerYes - Optional
Additional CAT/VNA Based Features
  • Vector Voltmeter
  • Mixed-Mode S-Parameters
  • DTF/TDR Cable Measurements
Additional SA Based Features
  • Built-In Power Meter
  • Extended Range Transmission Analysis (ERTA)
  • Real-Time Spectrum Analysis
  • Noise Figure Measurements
  • Over-The-Air Measurements
System Features
  • Built-In DC Source
  • GPS Receiver - Internal Only
  • Remote Control Capability
Power Measurement Using USB Sensor
  • CW or Swept-Frequency
  • Frequency-Offset
  • RF Pulse Test with Peak Sensor
Standard Attenuator Range30 dB
Standard Attenuator Step5 dB
DANL @1 GHz-159 dBm
Maximum Analysis Bandwidth10 MHz
Phase Noise @1 GHz (1 MHz offset)-113 dBc/Hz
Phase Noise @1 GHz (10 kHz offset)-111 dBc/Hz
Phase Noise @1 GHz (30 kHz offset)-108 dBc/Hz
Spur Free Dynamic Range> 104 dB
TOI @1 GHz (3rd Order Intercept)+13 dBM
Applications AvailableYes
Maximum Real-Time Bandwidth10 MHz
Bandwidth Options10 MHz (standard)
Performance Level??????
Applications-Cellular
  • 89600 VSA Software
  • Over-The-Air LTE FDD and 5GTF
Applications-Digital Video89600 VSA Software
Applications-General Purpose
  • AM/FM Tune and Listen
  • Field Strength Measurement
  • SCPI Code Compatibility
  • Spectrogram
  • Stimulus Response
Applications-Wireless Connectivity89600 VSA Software

List of Options
010Vector Network Analyzer Time Domain
030Remote Control Capability
208USB Power Sensor Measurements Versus Frequency
209Extended Range Transmission Analysis (ERTA)
210Vector Network Analyzer Transmission/Reflection
211Vector Network Analyzer Full 2-port S-parameters
212Mixed-Mode S-parameters
215TDR Cable Measurements
233Spectrum Analyzer
235Pre-amplifier
236Interference Analyzer and Spectrogram
238Spectrum Analyzer Time Gating
302External USB Power Sensor Support
307GPS Receiver
308Vector Voltmeter
309DC Bias Variable Voltage Source
310Built-in Power Meter
312Channel Scanner
330Pulse Measurements
350Real-time Spectrum Analyzer (RTSA)
351I/Q Analyzer (IQA)
352Indoor and Outdoor Mapping
355Analog Demodulation
356Noise Figure (NF)
358EMF Measurements
360Phased Array Antenna Control
370Over-the-Air (OTA) LTE FDD
377Over-the-Air (OTA) 5GTF
