Stainless Steel Pipe Flanges SORF Slip On Raised Face Flange ASTM A182 Flanges

Stainless Steel Pipe Flanges SORF Slip On Raised Face Flange ASTM A182 Flanges

Product Information

Stainless steel pipe flanges are components used in piping systems to connect pipes, valves, pumps, and other equipment. They provide a means for easy assembly, disassembly, and maintenance of the system.

Materials: ASTM A182 F316/F316L

Stainless steel pipe flanges are typically made from austenitic stainless steel grades such as 304/304L, 316/316L, 317/317L, 321/321H, and others. These stainless steel grades offer excellent corrosion resistance, durability, and strength.

Stainless steel 316/ 316L flanges have enhanced resistance to pitting corrosion in chloride environments due to the addition of molybdenum. The letter “L” denotes low carbon content. According to ASME B16.5 and ASME B16.47, SS 316/ 316L flanges may be made from forgings of ASTM A182 Grade F316 or F316L, castings of ASTM A351 Grades CF8M or CF3M, and plates of ASTM A240 Grades 316 or 316L.

ASTM A182 F316/F316L Chemical Composition (%)

ASTM A182 F316/F316L Mechanical Properties

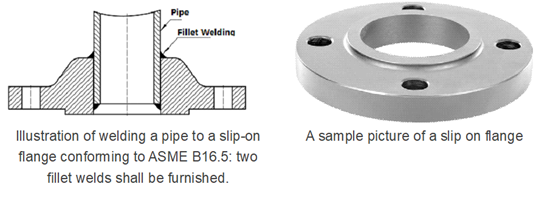

Flange Type: SO-Slip On Flange

Slip on flange also simplified as SO flange. SO flanges slip over pipes and are designed to bit slightly bigger on the inside than the pipe. They connect to the pipe through a fillet weld at the flange top and bottom. It is used to insert the pipe into the inner hole of flange, as the flange inner diameter is little bigger than the pipe’s outer diameter, pipe and flange could be connected by lap welding at the top and bottom of the flange.

Face Type: RF- Raised Face

The Raised Face flange is the most common type used in process plant applications, and is easily to identify. It is referred to as a raised face because the gasket surfaces are raised above the bolting circle face. This face type allows the use of a wide combination of gasket designs, including flat ring sheet types and metallic composites such as spiral wound and double jacketed types. The purpose of a RF flange is to concentrate more pressure on a smaller gasket area and thereby increase the pressure containment capability of the joint.

Dimensions of EN1902-1 PN16 Flange (mm)

Kasugai Shanghai, a subsidiary of Kasugai Group headquartered in Osaka, Japan, was established in 2003 as a representative office in Shanghai, China, and was upgraded to a company in 2008. Kasugai Shanghai serves as an important force of Kasugai Group in Asia, and over the past 20 years, it has become a key player in the industrial pipes, fittings, flanges, and valves market.

Kasugai Shanghai leverages the resources and manufacturing capabilities of local suppliers in China to provide a wide range of products, including stainless steel, carbon steel, duplex/super duplex steel, alloy steel, nickel alloy, and titanium alloy, according to various international standards such as ASTM/ASME/ANSI, JIS, EN, and DIN. The company also has a local support team and an on-site quality inspection team to ensure that products meet the specifications and quality requirements of customers.

With the support of high-quality local suppliers and a strong commitment to customer satisfaction, Kasugai Shanghai strives to provide reliable products and services to customers in Asia and beyond. Kasugai Group's establishment of Kasugai Shanghai and other international operations demonstrates their proactive approach to globalization and their commitment to meeting the needs of customers in a rapidly changing global market.
