Cylindrical Stainless Steel Filtering Element For Pressure Gearbox

Categories Insert Molding Plastic Filters
Brand Name: Share Filters
Model Number: Filtering Element For Pressure Gearbox
Certification: SGS
Place of Origin: China
MOQ: 200pcs
Price: USD0.05-USD1.50/pc
Payment Terms: T/T, L/C, D/P, Western Union, PayPay
Supply Ability: 10000pcs/day
Delivery Time: 7-20 days
Packaging Details: Caron, Polybag
Product name: Stainless steel filtering element for pressure gearbox
Keyword: Pressure gearbox filter
Rim material: PA, PE, PP, ABS, PC, POM, etc.
Filter media: Stainless steel mesh, synthetic filter mesh
Mesh count: 50tpi-508tpi
Micron rating: 20μm-40μm
Company Info.
Share Group Limited
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

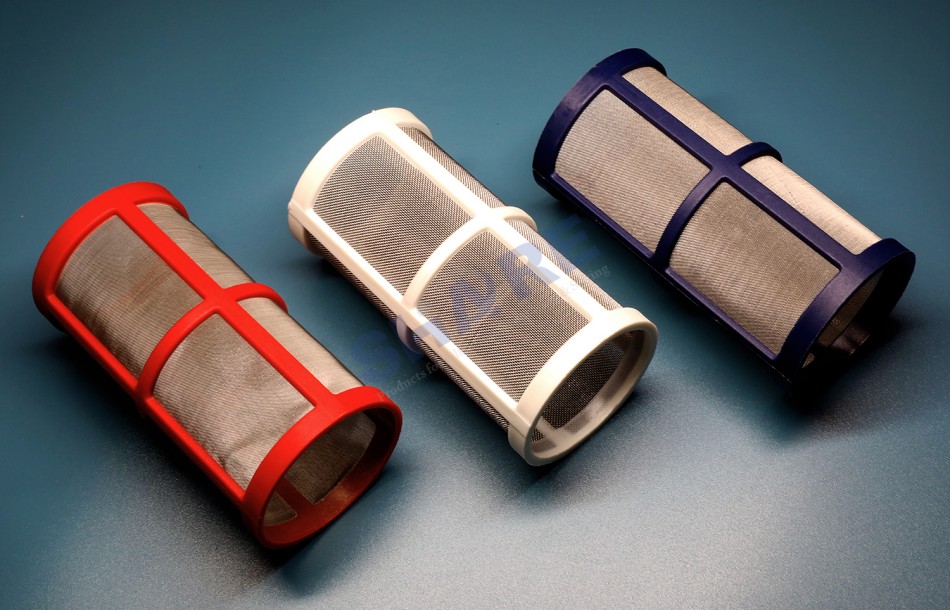

Cylindrical Stainless Steel Filtering Element For Pressure Gearbox


Cylindric Stainless Steel Filtering Element For Pressure Gearbox


The primary purpose of the filter is to prevent debris, such as metal shavings, dirt, and other particles, from circulating within the gearbox. These contaminants can cause wear and tear on the gearbox components, leading to reduced performance, increased friction, and potential damage.


The cylindric stainless steel filtering element for pressure gearbox has several important functions:

  • Sediment Removal
  • Protecting Equipment
  • Improving Performance
  • Extending Maintenance Intervals

Share Filters' injection stainless steel filtering element for pressure gearbox consist of a nylon or polyester filter mesh held in a polymer plastic frame, allowing for a more robust part giving more reliability and longevity in its use. Injection moulding can take many forms and Share Filters is fully capable to help develop and produce the injection moulded filter product that will best suit our customers' needs, as well as, offering any additional advice or service along the way.


Stainless Steel Water Filter In High Pressure Washer

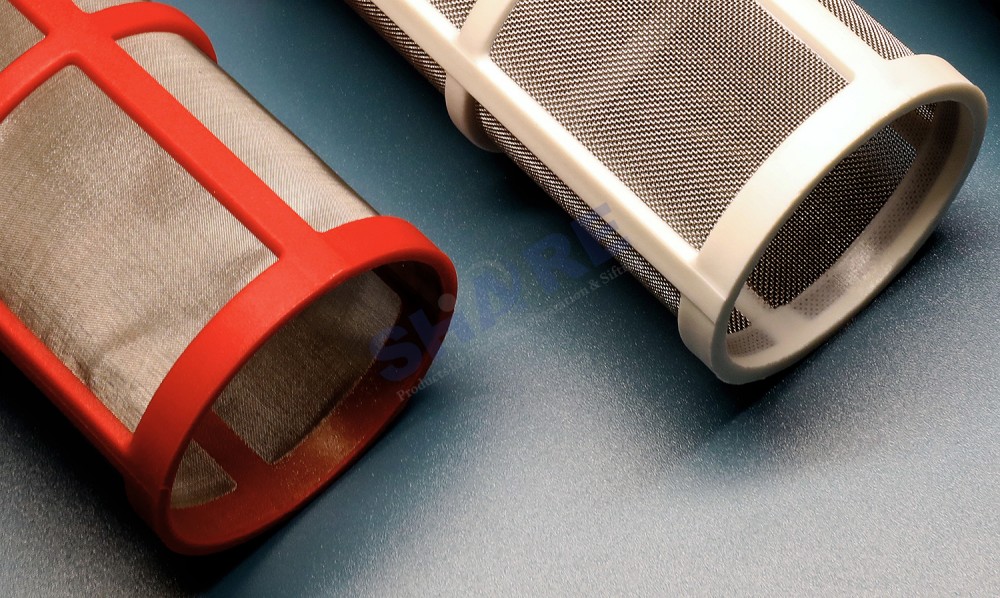

stainless steel filtering element for pressure gearbox


Injection Moulding Process
Injection moulding can provide a part or product that carries a more complex shape for more specific functionality, as well as, still being cost-effective and able to be produced in larger numbers consistently and within a deadline.

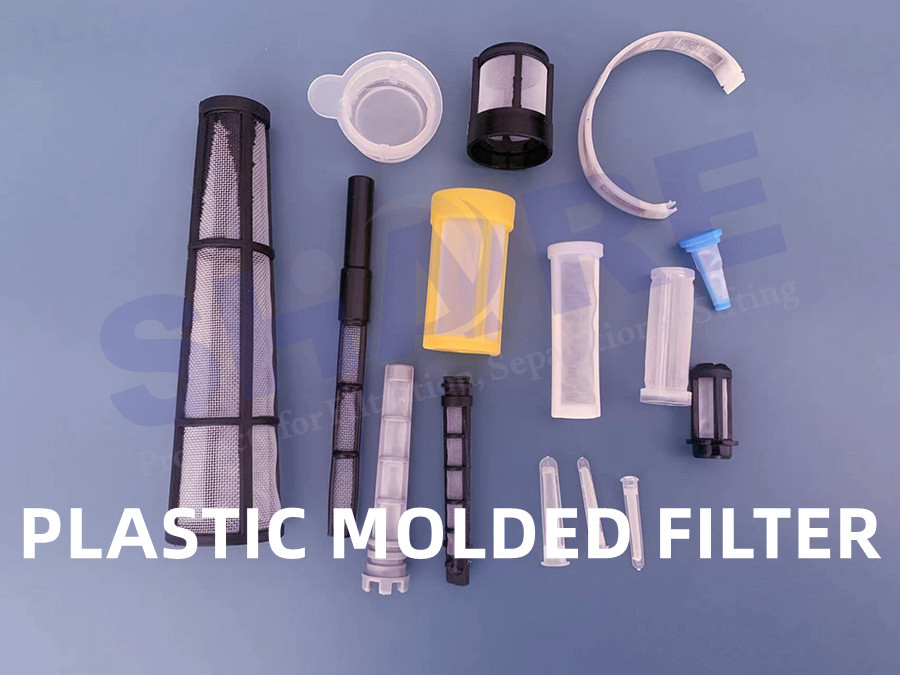

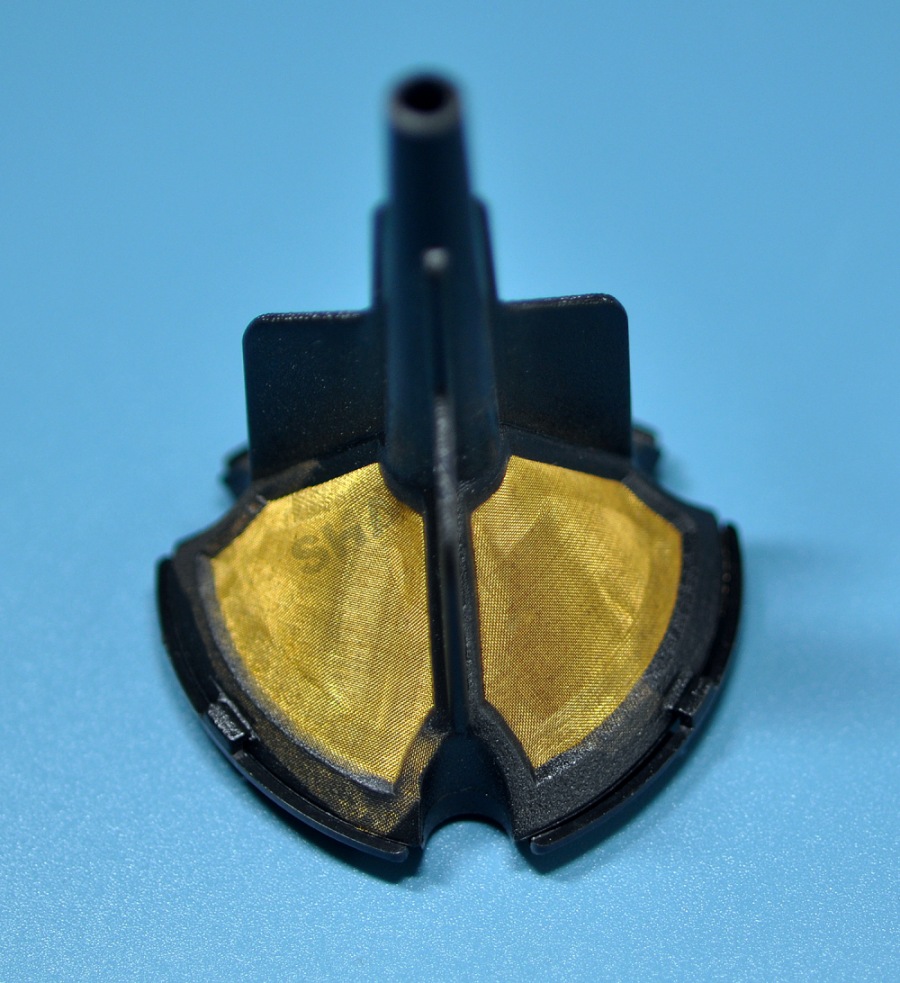

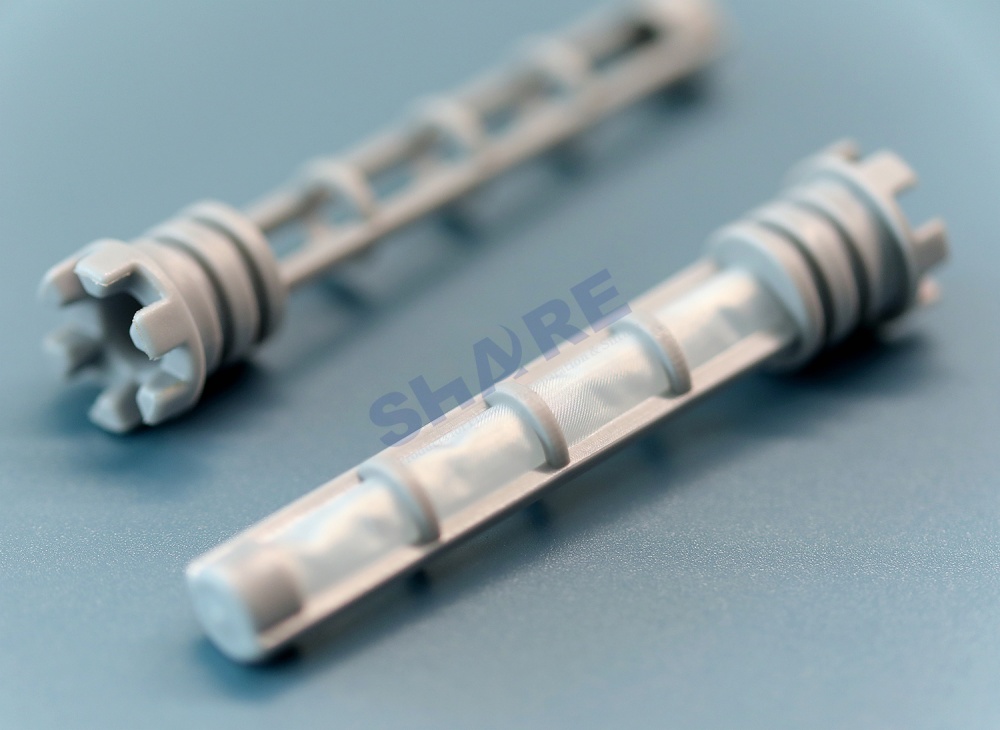

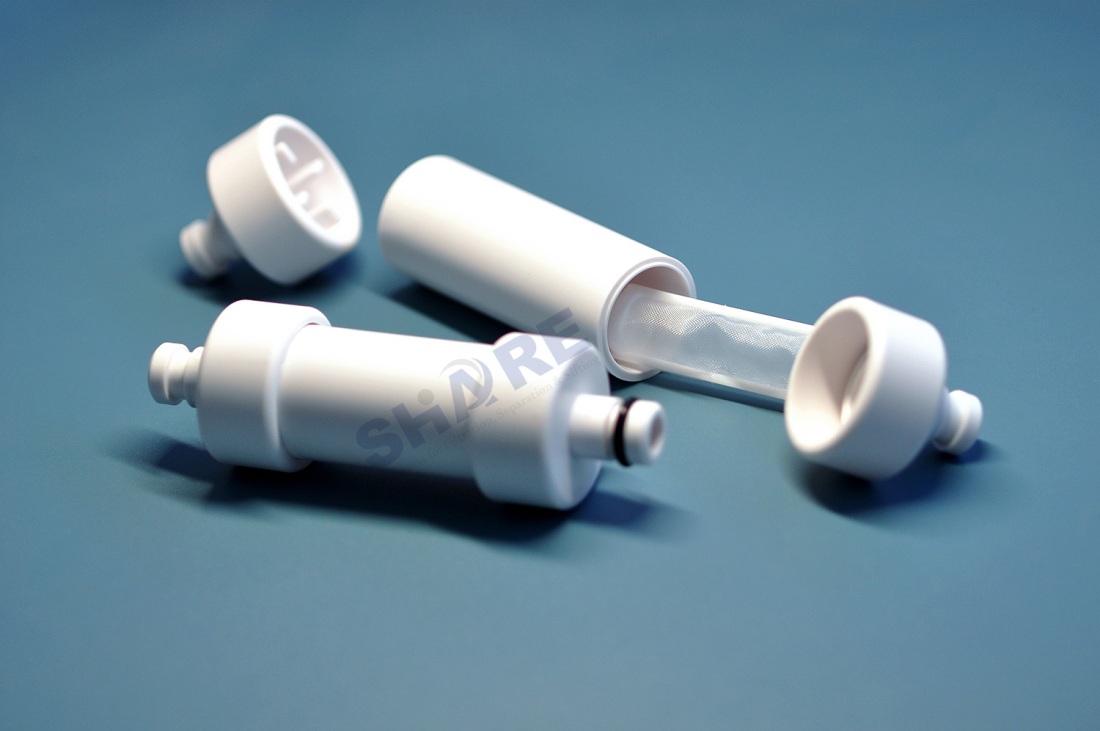

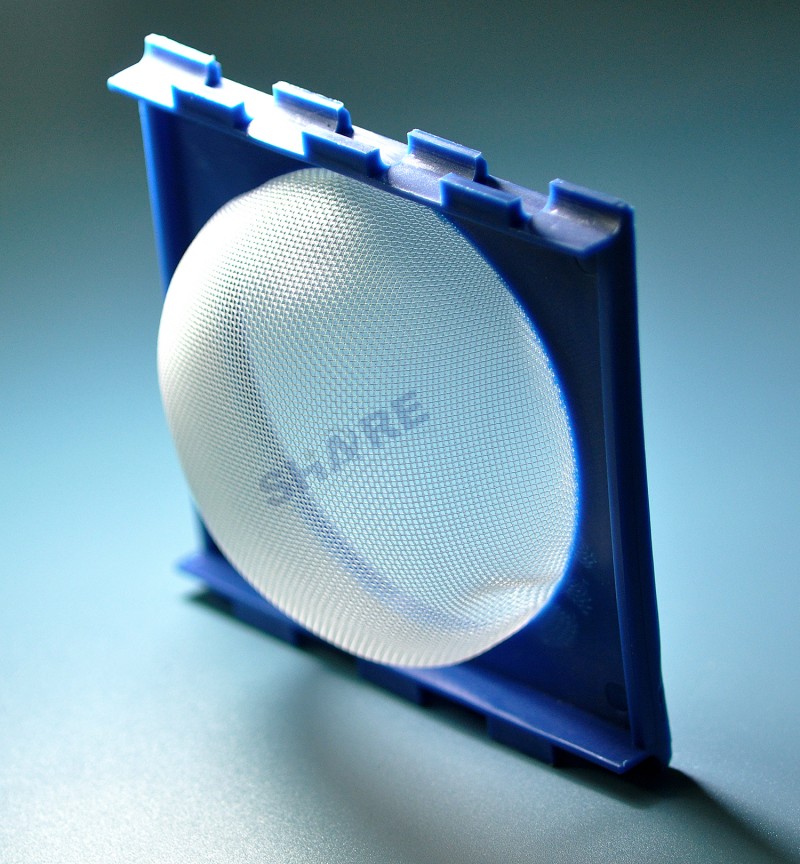

Other OEM Mesh Insert Injection Molded Plastic Filters

oil filter proofer cup oil filter fuel filter


Share Filtes Plastic Moulded Materials Options


Support rim materialPA6, PA66, PET, PP, ABS, POM, and other high- performance thermoplastics
Filter mediaNylon mesh, polyester mesh, PP mesh, stainless steel mesh, brass mesh
Micron rating3μm - 3233μm
plasticMesh parts fabricationSlitting, cutting, sonic welding
Process methodMesh insert injection moulding
SpecificationCustom
ColourCustom

How to select the right filter mesh? You can follow these points.


filter mesh
  • Mesh size or the size of the particle you need to filter
  • Mesh material (consider the working condition)
  • Mesh thread diameter, Mesh thickness
  • Opening area

Stainless Steel Wire Mesh Specification


MeshWire Dia. (MM)Opening (MM)Material (AISI)
7meshx7mesh1.002.63304 or316
10meshx10mesh0.601.94304 or316
12meshx12mesh0.501.62304 or316
16meshx16mesh0.401.19304 or316
16meshx16mesh0.351.24304 or316
18meshx18mesh0.351.06304 or316
20meshx20mesh0.400.87304 or316
24meshx24mesh0.260.80304 or316
30meshx30mesh0.300.55304 or316
35meshx35mesh0.170.56304 or316
40meshx40mesh0.230.40304 or316
50meshx50mesh0.200.31304 or316
60meshx60mesh0.150.27304 or316
70meshx70mesh0.120.24304 or316
80meshx80mesh0.130.19304 or316
90meshx90mesh0.120.16304 or316
100meshx100mesh0.100.15304 or316
120meshx120mesh0.090.12304 or316
150meshx150mesh0.0630.11304 or316
180meshx180mesh0.0530.09304 or316
200meshx200mesh0.0530.07304 or316

This data sheet just include our common specification, please contact us if you have other custom specification


Properties of Thermoplastic


PA6 (polyamide 6) Tough, abrasion-resistant, good vibration damping, resistant to solvents, fuels and lubricant
PA66 (polyamide6.6) Rigid, stiff, abrasion-resistant, dimensionally stable at heat exposure.
PET (polyethyleneterehthalate) High rigidity, high hardness, high chemical resistance, good dimensional stability.
PP (polypropylene) Good chemical resistance, more heat resistant than PVC
PEEK (polyetheretherketone) High mechanical strength, stiffness, toughness, temperature, chemical and radiation resistance

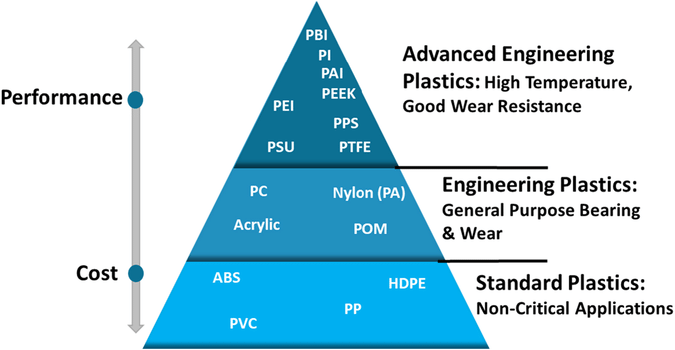

polymer performance

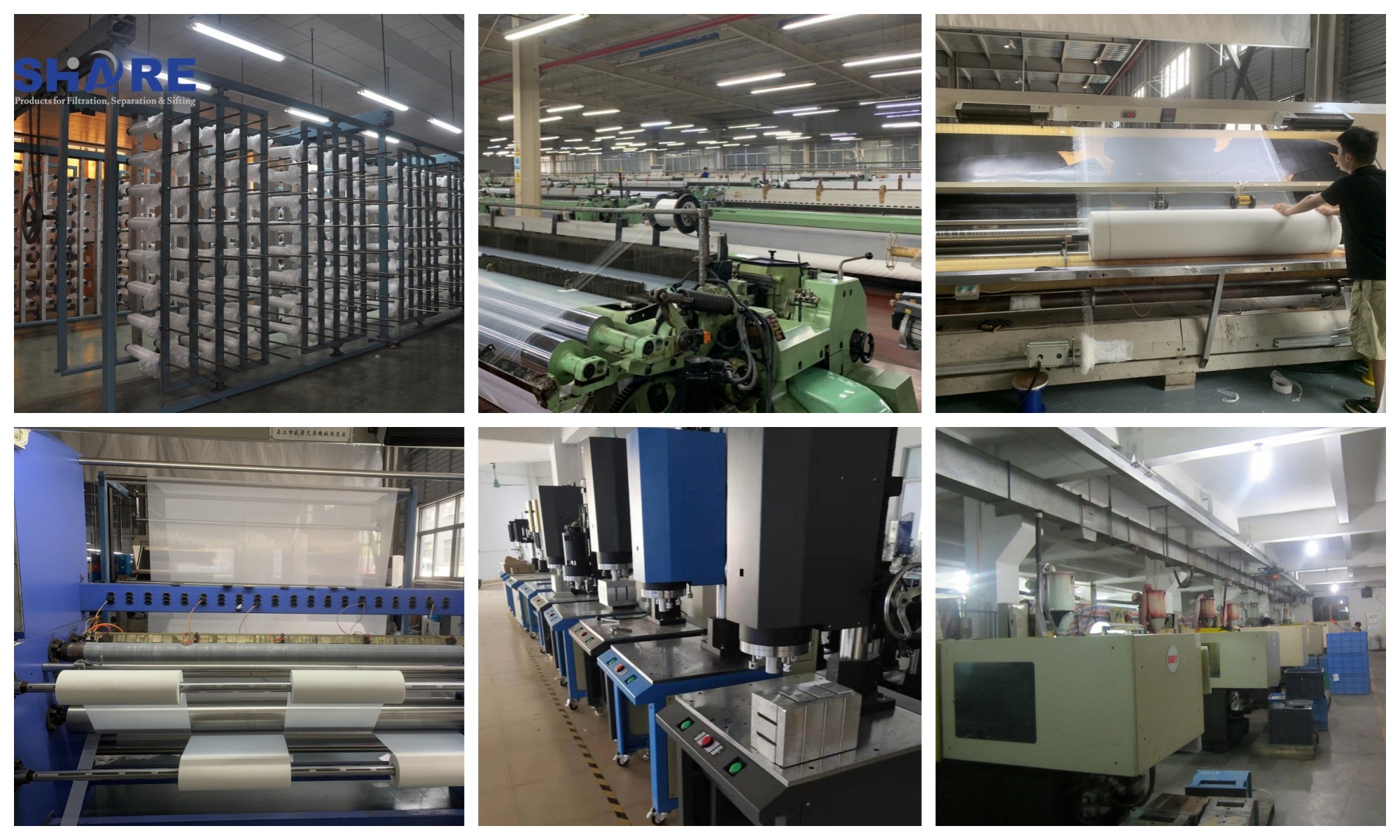

Share Filters Factory Facilities

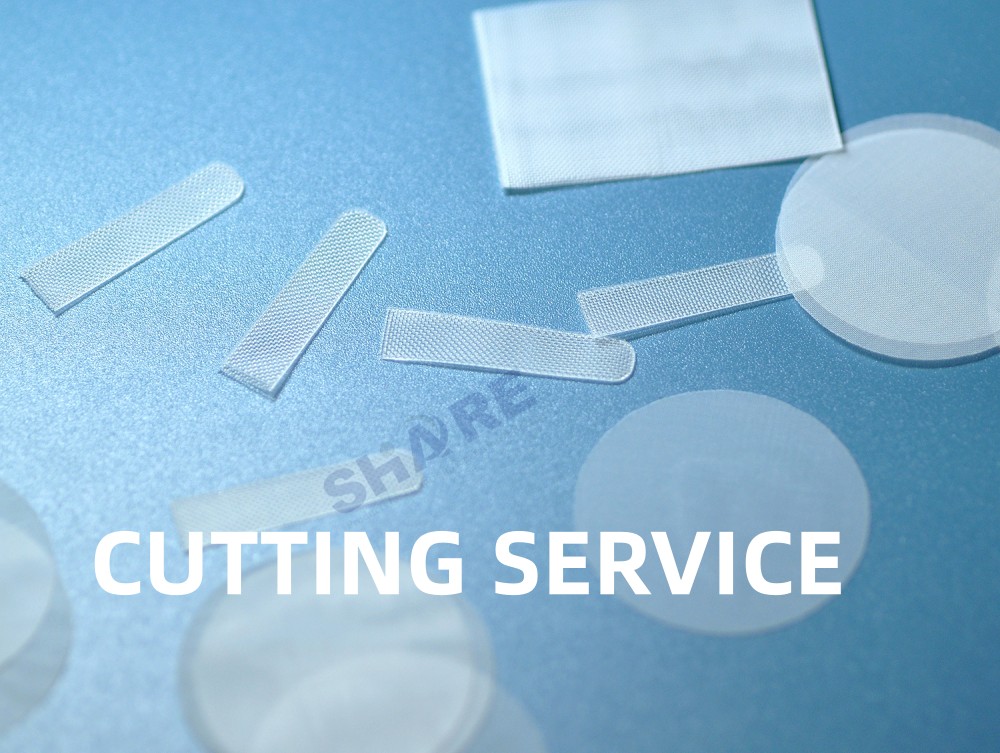

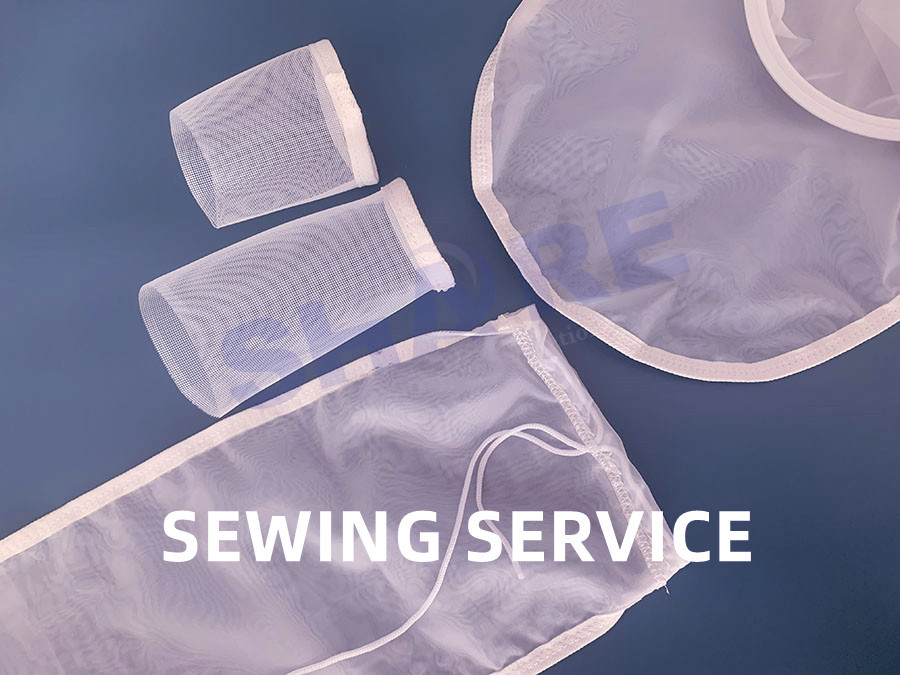

Synthetic MeshSlittingCuttingWeldingSewingInjection Moulding

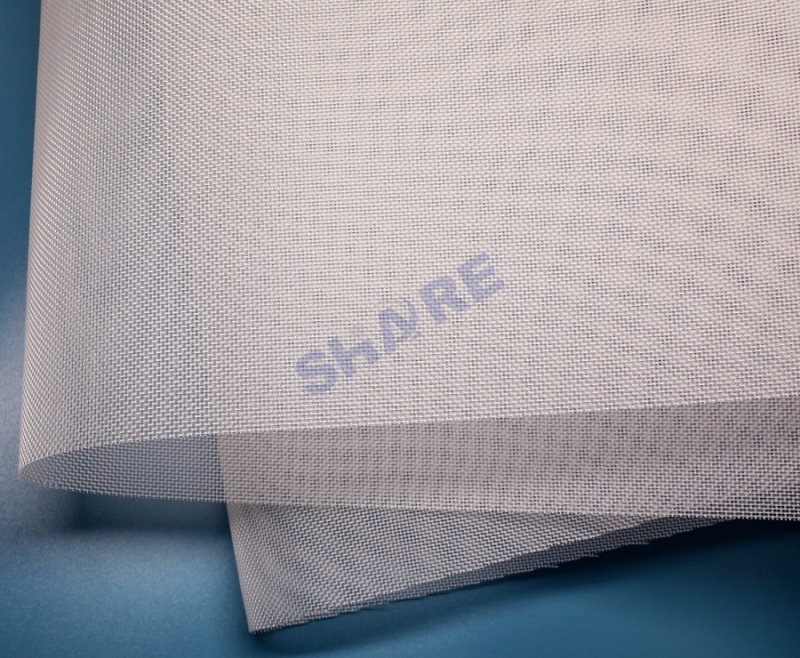

nylon meshslittingfilter mesh shapenylon filter mesh tubemesh filter bag

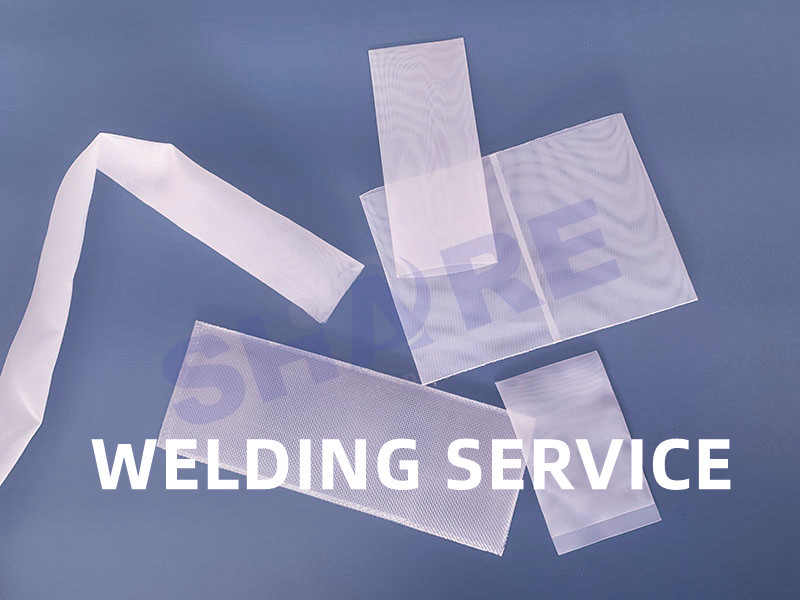

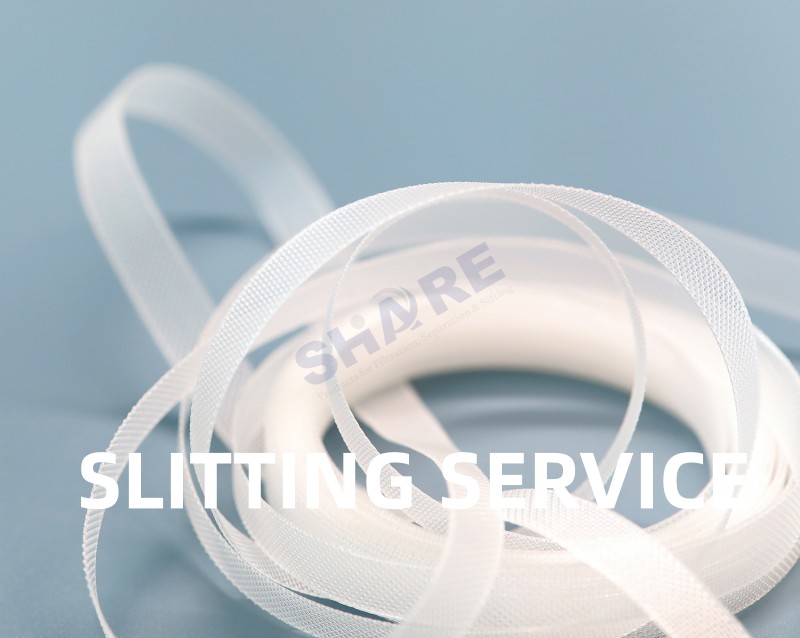

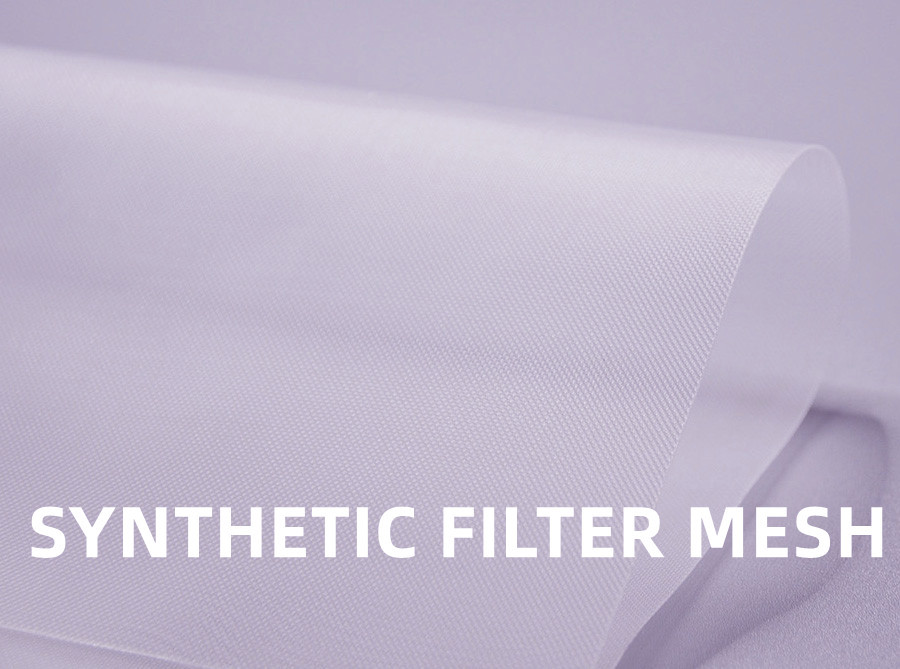

Share Filters synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the roll or cut shape.Ultrasonic slitting is also used for manufacturing fabric strips and produces a closed edge with very little material build up at the edge.Our cutting method include Laser cutting, Cold cutting, Hot cutting, Slitting, Stamping. Professional cutting using custom made tools that will not damage the materials.Sonic welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology.Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality.Custom plastic molded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory.



About Share Filters


Share Filters has over 20 years of experience developing and manufacturing filter meshes and solutions for our customer's screen and filtration needs. Many of our custom filters products are molded from mesh and plastic, utilizing our insert injection molding or pot molding capabilities. These processes allow for flexibility in design and material selection. They also offer significant advantages in cost and ease of manufacture over other potential solutions.


share filter workshop


Share Filters Products Applications


AutomotiveApplianceMedicalFood & BeverageChemicalEnvironmental
