| Categories | Helium Leak Detector |
|---|---|
| Brand Name: | Wayeal |
| Model Number: | SFJ-16D |
| Certification: | CE |
| Place of Origin: | Anhui, China |
| MOQ: | 1 Unit |
| Price: | Negotiate |
| Payment Terms: | T/T, VISA |
| Supply Ability: | 200 Units/Month |
| Delivery Time: | 35 days |
| Packaging Details: | Wooden Case |

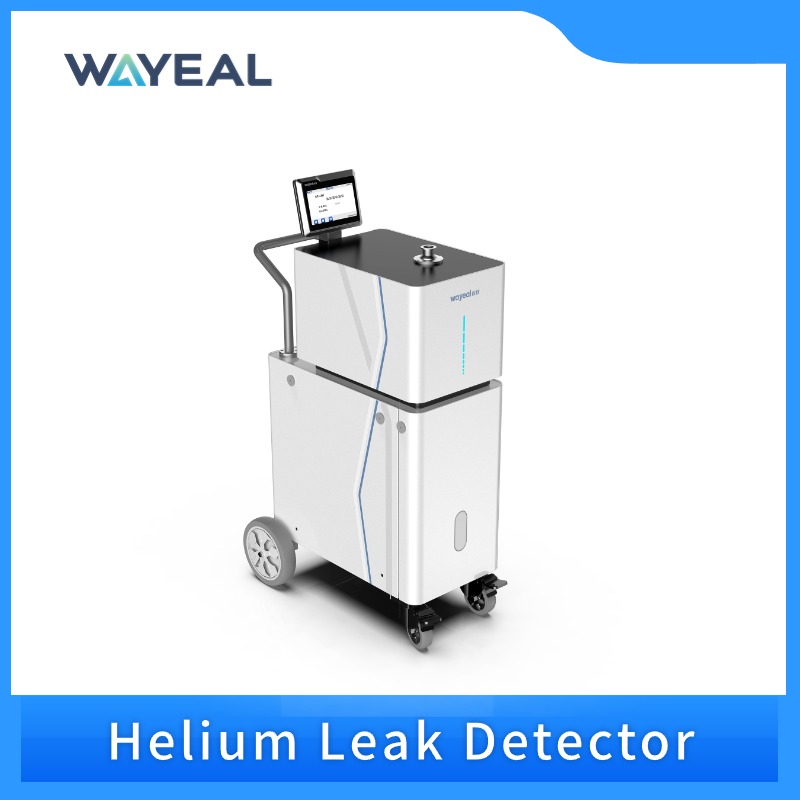

| Product Name: | Helium Leak Detector |
| Leak Detection Port: | DN25KF |
| User Interface: | 7inch Color Touch Screen |
| Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode: | 2.5*10-9 Pa.m3/s |
| Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode: | 5*10-13 Pa.m3/s |
| I/O Input output Interface: | 8 Inputs, 8 Outputs |
| Company Info. |
| Anhui Wanyi Science and Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Introduction of Helium Leak Detector:
A helium leak detector is a safe and easy leak testing instrument that uses helium gas. Helium leak detector is the most accurate type of leak testing. A big advantage of using helium for leak detection is its high sensitivity. Helium leak detectors can detect even the smallest leaks, enabling the detection of leaks that could easily go unnoticed with other methods. The high level of sensitivity ensures accurate and reliable leak detection, reducing false positives and minimizing the risk of overlooking future leaks.
Technical Parameters of Helium Leak Detector:
SFJ-16D Mobile Vaccum Helium Leak Detector Machine for Accurate Leak Detection | |
|---|---|
Product Name | Helium Leak Detector |
| Detection Method | Helium Mass Spectrometer |
| Leak Detection Port | DN25KF |
| Leak Rate Display | Numbers, Bar Charts, Graphs |
| Response Time(s) | <1s |
| User Interface | 7inch Color Touch Screen |
| Operating temperature | 0~40°C |
| Max Allowable Leak Detection Pressure (Pa) | 1800Pa |
| Communication Interface | RS232/485, LAN |
| Detectable Quality | 2, 3, 4 (H2, He-3, He-4) |
| Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode | 2.5*10 -9 Pa.m3/s |
| Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode | 5.0*10-13 Pa.m3/s |
| Startup Time (min) | ≤1.58 |
| Backing Pumps | Scroll Vacuum Pump |
| Diamension | 755*467*1180mm |
| Power Supply | 220V, 50Hz/60Hz |
| Language | Chinese/English |
Applications of Helium Leak Detector:
Automotive: In the automotive industry, helium leak testing is used for testing fuel tanks, radiators, air-conditioning systems.
Battery: In the energy industry, helium leak testing is used to test the integrity of the battery pack, battery housing, and even pouches and cells to prevent leaks and ensure safety.
Aerospace: Ensuring the integrity of fuel systems, oxygen supply lines, and other critical components is paramount in aerospace applications.
Methods of Helium Leak Detection (Helium Leak Detector)

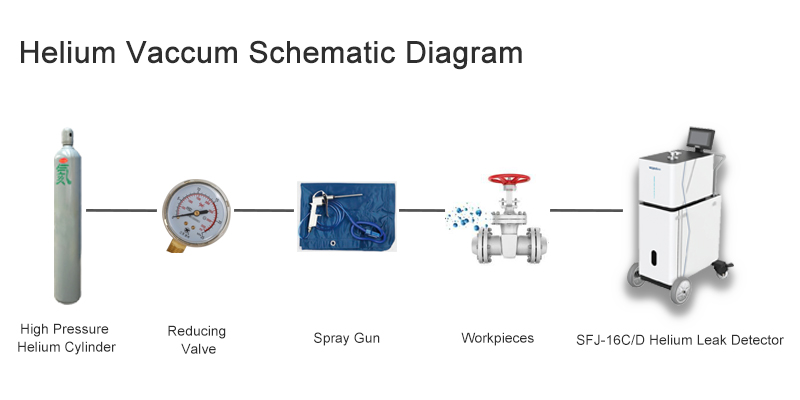

Helium Vacuum Method

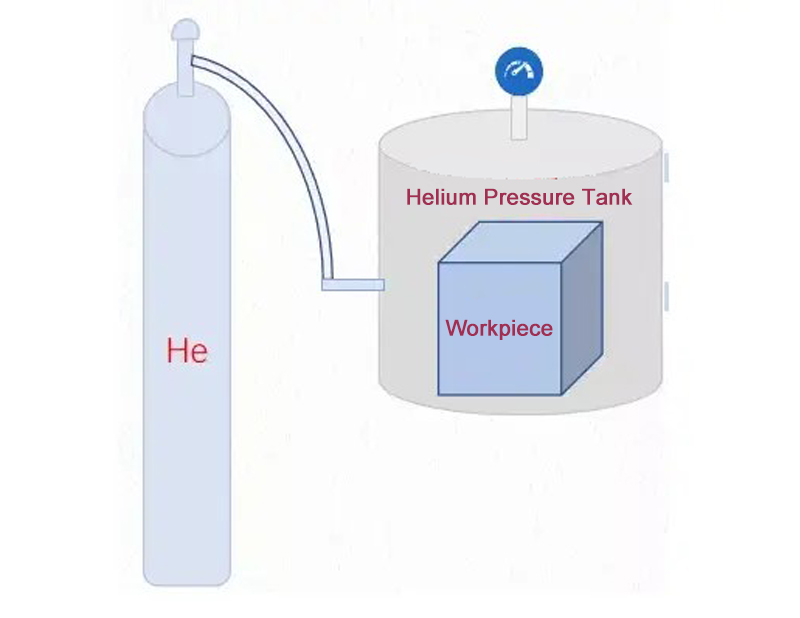

Helium Hood Method

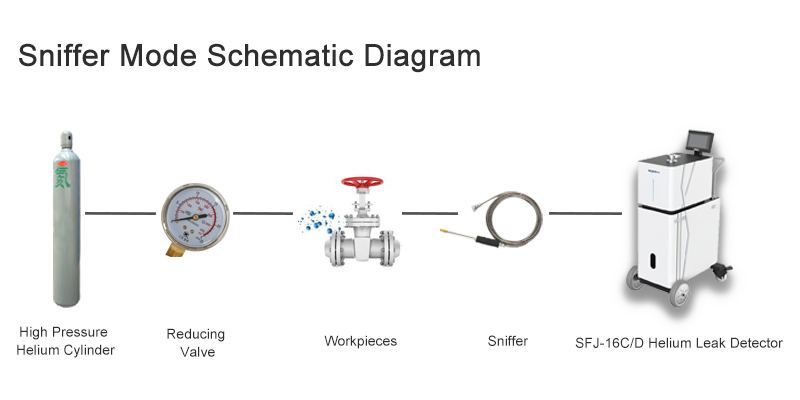

Sniffer Method
|
