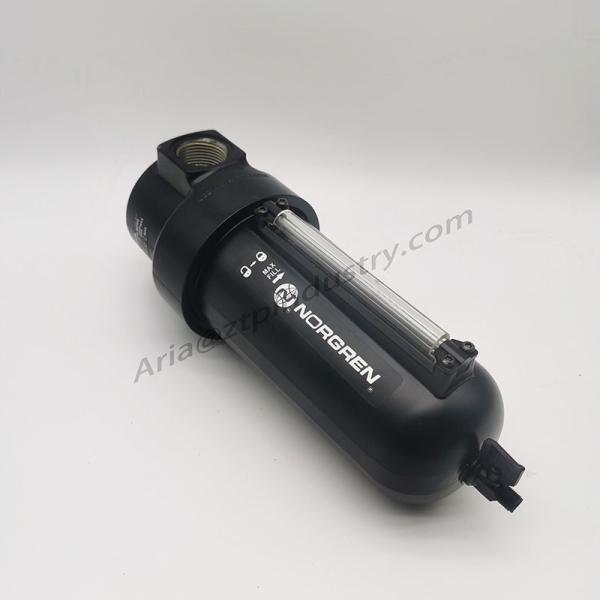

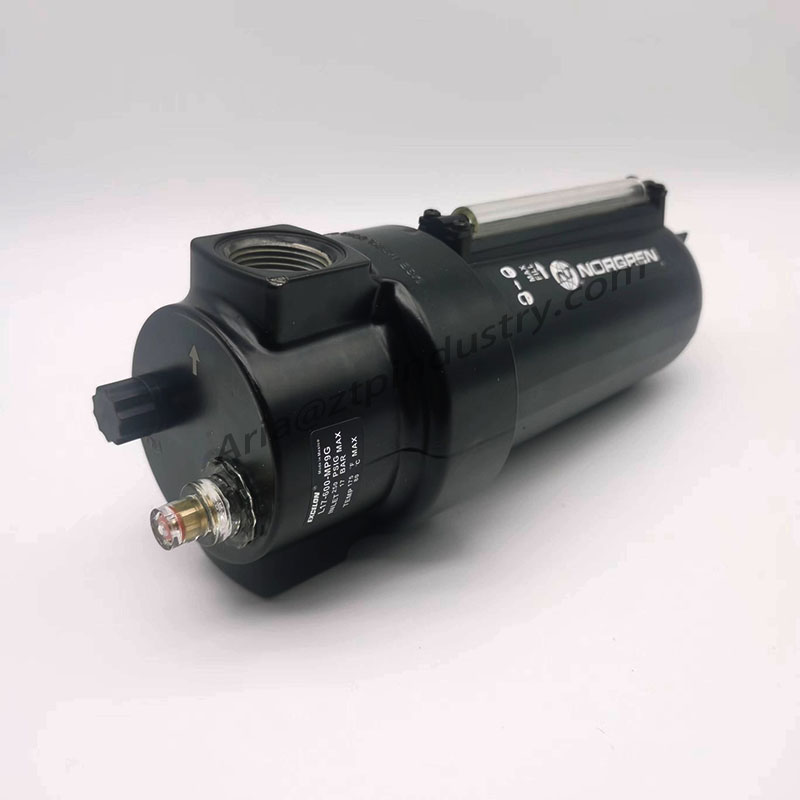

L17 Series Oil-fog Lubricator 1-1/2" NPT Ports Metal Bowl

L17 Series, oil-fog lubricator, 1-1/2" NPT ports

>All around (360°) visibility of the sightfeed dome simplifies installation and adjustment

> Screw-on bowl reduces maintenance time

> Can be disassembled without the use of tools or removal from the air line

> Flow sensor design provides a nearly constant oil/air ratio over a wide range of air flows

Technical data

L17

Fluid: Compressed air, neutral gases

NOTE: Contact technical support for use with other media.

Maximum pressure: 250 psig (17 bar)

Operating temperature*:

0° to 175°F (-20° to 80°C) * Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C).

Start point (minimum flow required for lubricator operation):

8 scfm (3.8 dm3/s) at 90 psig (6.3 bar) inlet pressure 1" ports: 275 scfm (130 dm3 /s)

Reservoirs:

1 pint (0.5 liter)

1 quart (1 liter)

2 gallon (8 liter)

5 gallon (20 liter)

Materials

Body: aluminum

Reservoirs:

1 pint: aluminum

1 quart: aluminum

2 and 5 gallon: steel reservoirs that are ASME rated according to the ASME Pressure Vessel Code, Section VII

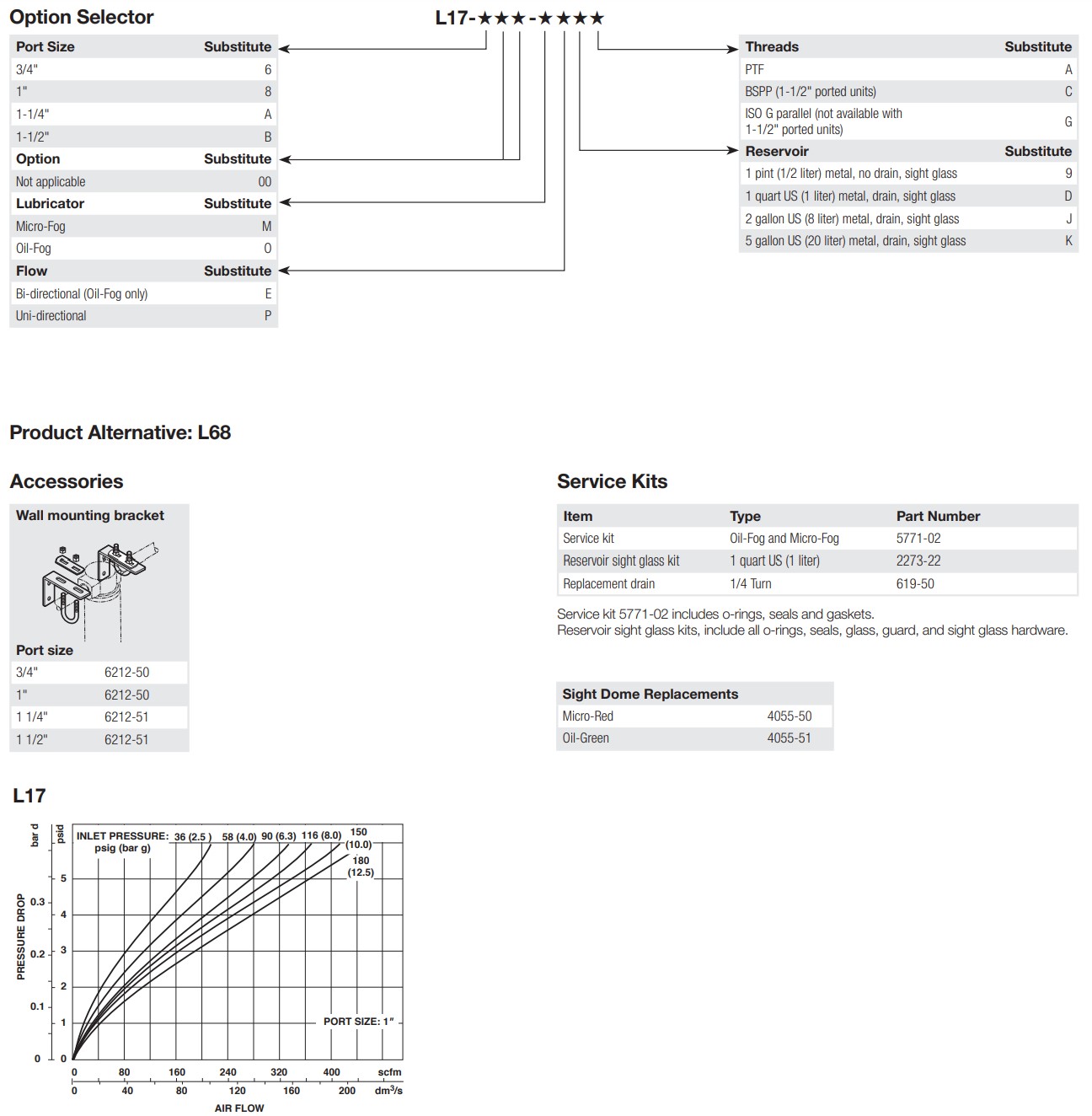

Ordering information

Models listed have PTF threads

** Models listed in the order table must not be located downstream of frequently cycling directional control valves. Order the optional bi-directional Oil-Fog Lubricator for use under such conditions. † Typical flow with 90 psig (6.3 bar) inlet pressure and a pressure drop of 5 psig (0.35 bar).
