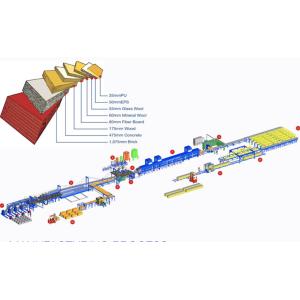

200mm Polyurethane Sandwich Panel Manufacturing Line 20M/Min

30mm -200mm Panel High Speed PU Sandwich Panel Machine For Steel Sheet 0.4mm -2mm

Machine Specifications

1. Raw material: color steel, galvanzied steel
2. Material Thickness: 25-100mm
3. Working speed: 4-15m/min
4. Number of Roller rows: about 16 to 20 rows
5. Decoiler Type : hydraulic/ automatic
6. Decoiler ID: 510mm-610mm
7. Decoiler OD: Max 1300mm
8. Driven motion: motor
9. Transmission: Rubber Belt Conveyor
10. Roller material: GCR15 steel with heat treatment
11. Axis diameter: 80mm
12. Axis material: High grade 45# steel
13. Main motor: 30kw
14. Cutting power: 11kw
15. Hydraulic pressure:20Mpa
16. Cutting length tolerance: +/-1.5mm(per 3m)
17. Cutting dies material: GCr12 with quenched treatmentHR58-62
18. Power of oil pump: 11kw
19. Oil of Hydraulic station: 40# carbon
20. Control system: PLC frequency control system with touch screen
21. PLC brand: Japan panasonic
22. Encoder brand: Ombrand
23. Transducer: Panasonic
24. Coil material Yield strength: G250Mpa
25. Linear Speed of production:<60
26. Reciprocating times of injection head per minute: 2-6 m/min

Machine Features

• Best material: We carefully choose the best material of every parts of the machine
• Rich experience: Our engineers have more than 15 years' experience in design the rollers of the machine , our factory exported a lot of PU Sandwich Panel machine to MIddel East , Africa, South America, India, Parkistan,South Asia, Russia and Europe.
• .Good-After service:Engineers are availablr to customers factory tp test the machine and teach the workers to operate.
• High efficiency and simple operation, PU Sandwich production line is widely used in the construction of steel structure enclosures, cold storages, and mobile buildings. In order to satisfy various customer requirements, we design and manufacture PU sandwich panel lines in different specs, models and configurations. the whole line is controled by the PLC , Only need 2 workers to operate the machine.

Products Pictures

Payment Term

The payment shall be made by L/C or T/T(30% down payment and the balance for 70%

shall be paid before container loading at the seller`s factory when the buyer confirms the quality is up

to the contracted requirements

Delivery Time

60-75 working days.

Warranty

2-year warranty from date of shipment.

Packing

Suitable for sea transportation.Usually one High precision Grape stake roller formed facility loads

in one container.Depends on the machine's size and weight
