IEC 60884-1 Tensile Strength Testing Machine with Soft Cable Retention Force Testing Machine

Categories Tensile Strength Testing Machine
Brand Name: HongCe
Model Number: HC9917
Certification: Calibration certificate(cost additional)
Place of Origin: China
MOQ: 1 Set
Price: Negotiable
Payment Terms: T/T
Supply Ability: 10 set per month
Delivery Time: 60 days
Packaging Details: Plywood
Test station: 1 station
Test weight: 10N*1, 60N*1, 20N*2
Test rate: 60 times /min
working stroke: 35mm
Cord bushes: 5 pieces
Test times: 0-9999, preset
Name: Apparatus For Testing Cord Retention
Warranty: 1 year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

IEC 60884-1 Tensile Strength Testing Machine with Soft Cable Retention Force Testing Machine

Soft Cable Retention Force Testing Machine


Standard with Tensile Strength Testing Machine:

IEC 60884-1 'Plugs and socket-outlets for household and similar purposes – Part 1: General requirements' clause 23.2, figure 20


Application with Tensile Strength Testing Machine:

It is for testing rewirable plugs and rewirable portable socket-outlets shall be provided with a cord anchorage such that the conductors are relieved from strain, including twisting, where they are connected to the terminals and that their covering is protected from abrasion. The machine conducts automatically after the test started, it will stop working after reaching the setting number of times.


Test sample with Tensile Strength Testing Machine:

Non-rewirable plug and socket-outlet, rewirable plug and socket-outlet.


Product Parameters with Tensile Strength Testing Machine:

Power SupplyAC 220V 50Hz
Weight Configurations10N*1, 60N*1, 20N*2
Testing Rate60 times/min
Test Times0-9999 times, preset. Default 100 times.
Cord Bushings5 pieces (Φ6mm, Φ8mm, Φ10mm, Φ12mm, Φ16mm)
Working Stroke35mm

The pull force to the flexible cable:

Rated Current of the Flexible Cable (A)Rated Voltage of the Flexible Cable (V)Tensile Force (N)
2.5-50
2.5~16<25060
2.5~16>25080
>16-100

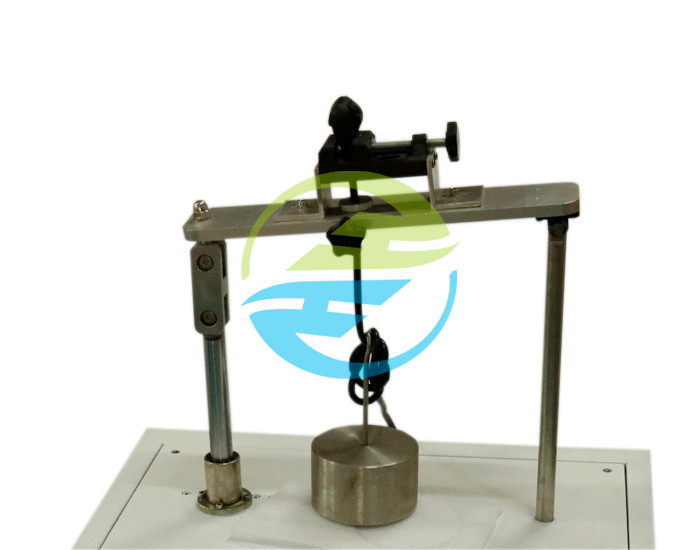

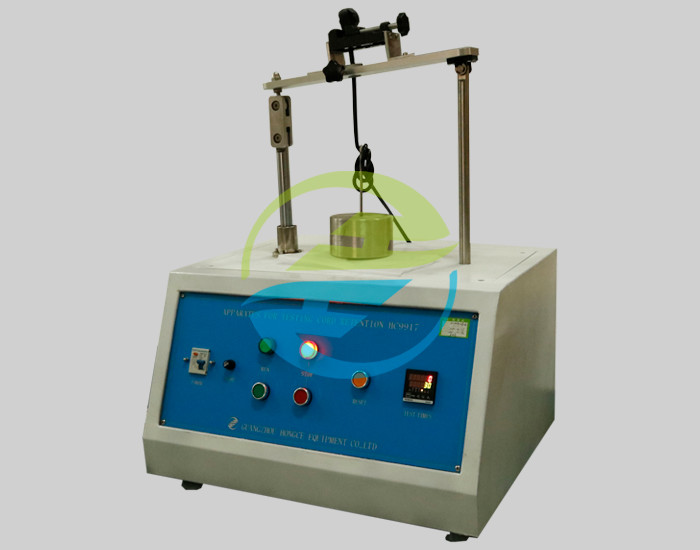

Product Image with Tensile Strength Testing Machine:


Our advantage service:

We have our own developing and designing team, which ensure our own technological and innovative products for customers.

For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products.


Technical support:

All our workers are experienced and skilled.


After sale service:

Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.


About Us:

Guangzhou Hongce Equipment Co., Ltd is a leading company in inspection equipment industry, established in 2003 and located in Guangdong, China. Our company introduced advanced equipment, combined with the most advanced technology production processes, strict quality control system to control the entire process of production. The company combined with a number of high-tech management personnel and advanced equipment, and together with the modern management, computer design and control, our products has reached the international advanced level. The company set R&D design, production, sales as one, specializing in producing electric wire inspection equipment of plug and socket, mechanical robustness testing equipment of electronics, inspection equipment of electronics’ on-fire danger, testing indicator of anti-electric shock and solid objects' entry, general inspection equipment, and other non-standard testing equipment. Our products enhance good selling at home and abroad, and have established supply relationships with a number of well-known companies.
