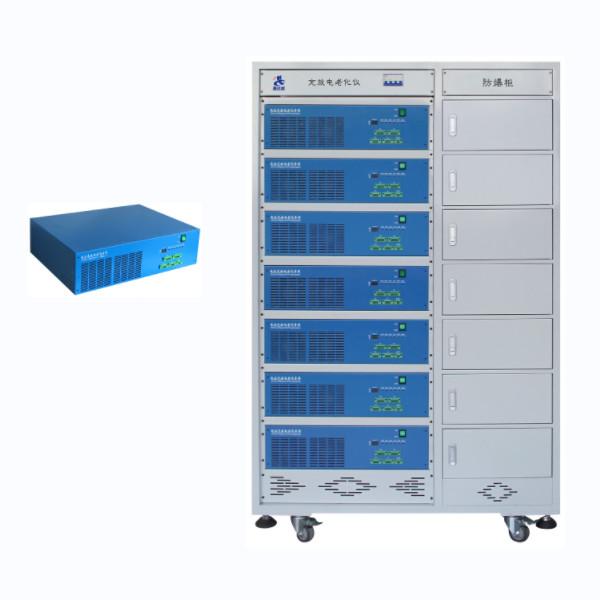

100V Battery Charge Discharge Tester for Electric Tricycle Capacity and Aging Tester
1. Equipment Introduction
The battery cahrge discharge tester has four test steps , charging , discharge , sheland cycling .
By editing the corresponding steps, the battery capacity can be tested according to the set process.
2. Scope Of Application
The charge discharge tester is applied in electric tools , electric bicycle and other lithium battery pack cycle charging , discharge , battery pack function test and charge and discharge data monitoring integrated charging and discharge cycle test system .
3. Equipment Parameter Description
| Product model | BCDS100V-10A-20A(1400W) | |
| Voltage | measuring range | 9 ~ 100V |
| precision | ± ( 0.2% of reading + 0.2% of range) | |
| Current | Charging range | 50~ 10000mA |
| Discharge range | 50 ~ 20000mA | |
| precision | ±(0.2% of reading + 0.2% of range ) | |
| Battery charging | Constant pressure cut - off current | Minimum 50 mA |
| Volume | precision | ±1‰ |
| Power | Discharge power | ≤ 1400W |
| Time | Inspection time | Receive real - time < 2S |
| Timed range | 0~999 Hours / Step | |
| Data recording interval | ≥5S | |
| Medium machine version | 1.1 Series | |
| Battery Charging | Charging mode | Constant current constant pressure charging |
| cut - off condition | Voltage , current , relative time , overcharge protection | |
| Discharge | Discharge mode | constant - current discharge |
| cut - off condition | Voltage , relative time , and overdischarge protection | |
| Circulate | Cycle measurement range | 1 ~ 999 Times |
| Number of single cycle steps | 100 | |
| Voltage and current detection and sampling | Four - line sampling | |
| Data base | The SQL database was used to manage the test data | |
| Upper - computer communication mode | Based on TCP / IP protocol network port , serial port | |
| Data output mode | EXCEL , TXT , Chart files | |
4. How long Is The Warranty?
If the equipment parts are damaged , the equipment warranty period is 1 year for 1 year due to non - human factors
and we will provide the replacement parts at cost.
|
