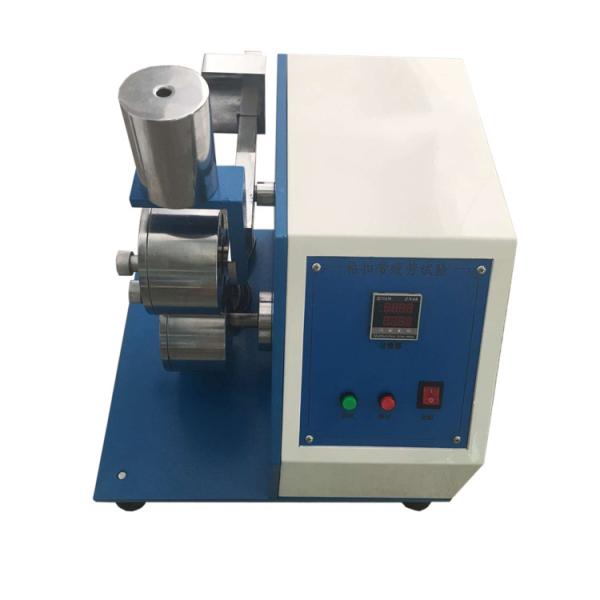

DIN 3415 SATRA TM 103 Magic Tape Fatigue Tester

Categories Life Testing Apparatus
Brand Name: AISRY
Model Number: ASR-7109
Certification: ISO
Place of Origin: China
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Delivery Time: 15 work days
Packaging Details: Standard export wooden case
Trolley diameter: top roundФ162.5mm , base roundФ160mm
Trolley Width: 80mm
Trolley speed: 72rpm
Counter: LCD,0~999,999
Dimension: 45×55×57cm
Weight: 35 kg
Power: 1∮ AC220V,3A
Standards: DIN-3415, SATRAPM123
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

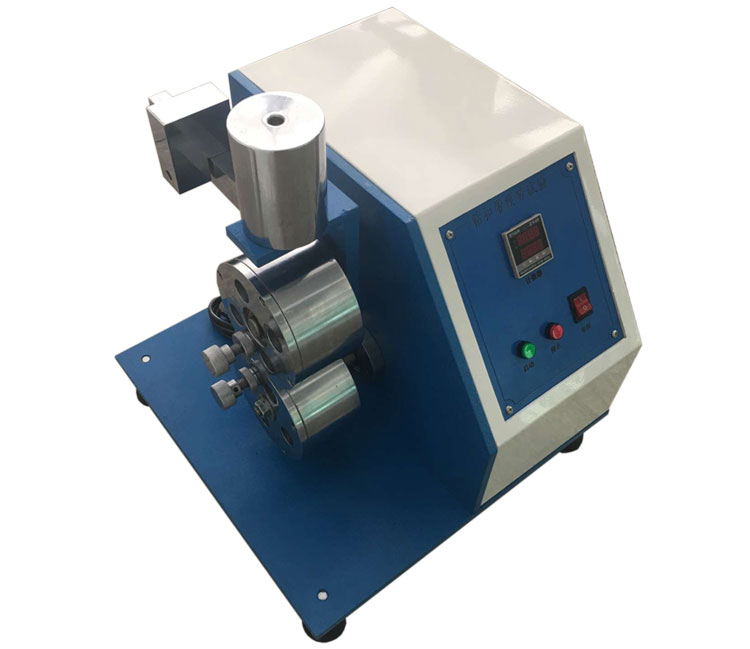

DIN 3415 SATRA TM 103 Magic Tape Fatigue Tester

SATRA TM 103 Magic Tape Fatigue Tester Magic Tape Life Testing Apparatus


Application:

Digital Magic Tape Fatigue Tester, to determine the capability of Velcro used for shoes, garments, etc.Cut the specimen 540mm by 20 or 50mm in dimension from the sample being tested into the wheel of Velcro tester to be fitted completely. To subject Velcro (hook & loop) to repeated stripping and peeling for a certain number of times. Use tensile machine (another purchase) to measure its peeling strength (AS) and shear strength (PA) after this test.

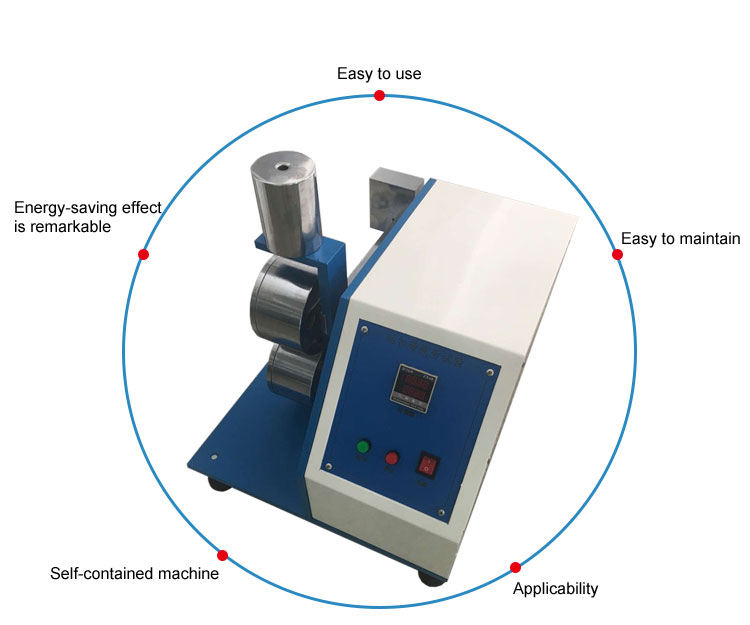

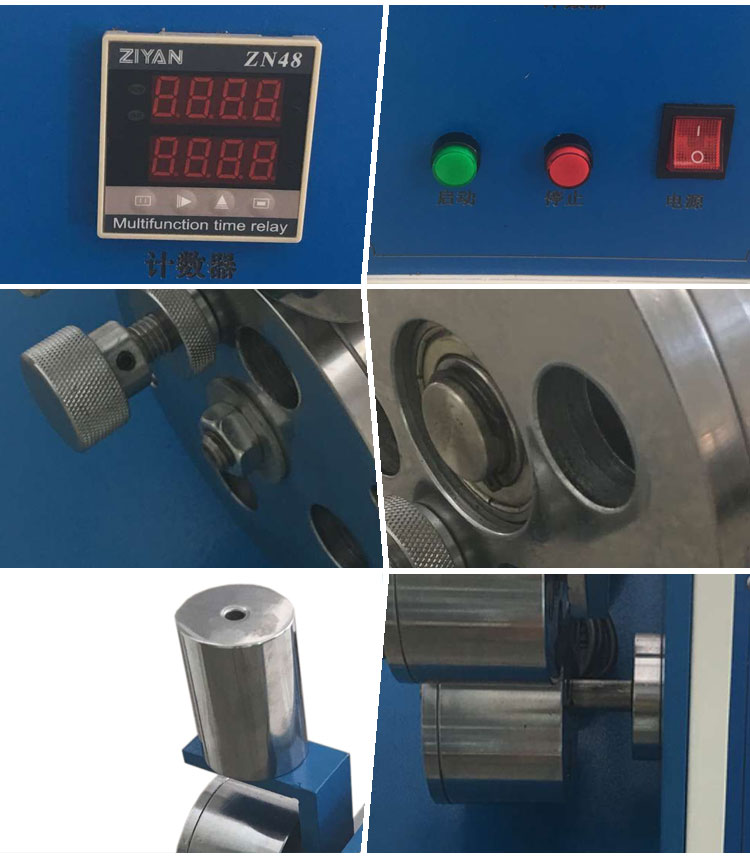

Features :

1. PLC closed-loop controller controlled. AC servomotor ensures accurate and durable running.

2. Rigid construction and advanced AC servomotor ensures quiet running.

3. Transparent plastic cover ensures safe and convenient operating.


Specifications :

1. Upper Roller Dia. 162+/- 0.5 mm, 70 mm in width

2. Lower Roller Dia. 160+/- 0.5 mm, 70 mm in width

3. Roller Speed 60+/-5 r/min

4. Load 1+/-0.1 N/mm

5. Number of test cycles 5,000

6. Counter LCD display, 1- 9, 999 times, adjustable

7. Power 220 /110 V 50/60 Hz 4A

8. Weight 105 Kg(standard)

9. Dimensions 450 x 550 x 570mm ( L x W x H )

Standards : BS EN ISO 22776, DIN-3415, SATRA TM 123


Parameters:


Trolley diametertop roundФ162.5mm , base roundФ160mm
Trolley Width80mm
Trolley speed72rpm
CounterLCD,0~999,999
Dimension45×55×57cm
Weight35 kg
Power1∮ AC220V,3A
StandardsDIN-3415, SATRAPM123
