Categories | Life Testing Apparatus |
---|---|
Brand Name: | AISRY |
Model Number: | ASR-5620 |
Certification: | ISO |
Place of Origin: | China |
MOQ: | 1 set |
Price: | Negotiable |
Payment Terms: | T/T, Western Union |
Supply Ability: | 200 sets per month |
Delivery Time: | 15 work days |
Packaging Details: | Standard export wooden case |
Application: | Zipper life tester |
Warranty: | 1 Year |
Standard: | CNS-1083,QB/T2171~2173 |
Function: | Zipper life testing machine |
Reciprocating stroke: | 75mm |
Weight: | About 50kg |
Motor: | 1/4HP |
Counter: | LCD, 0-999,999 |

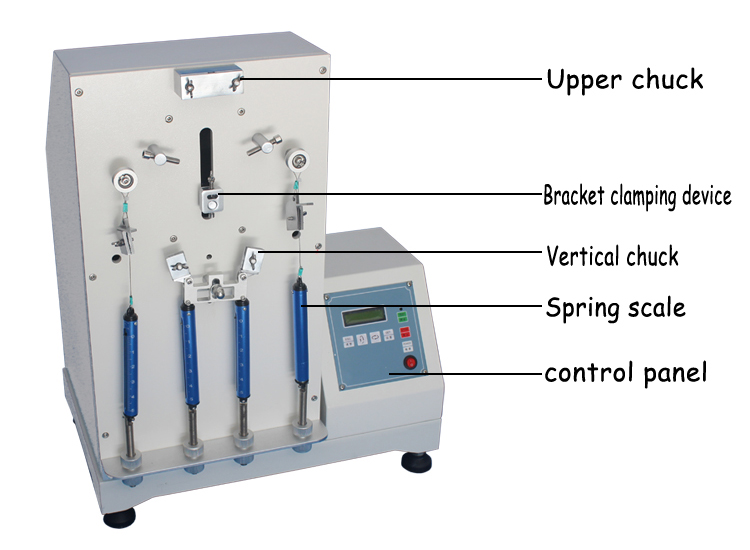

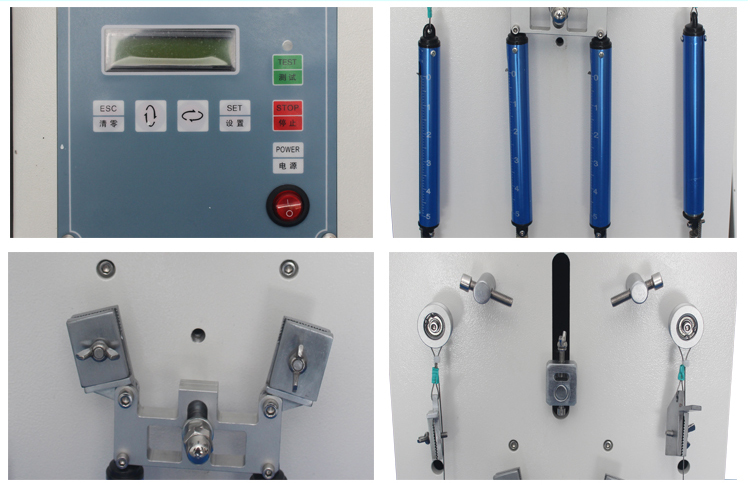

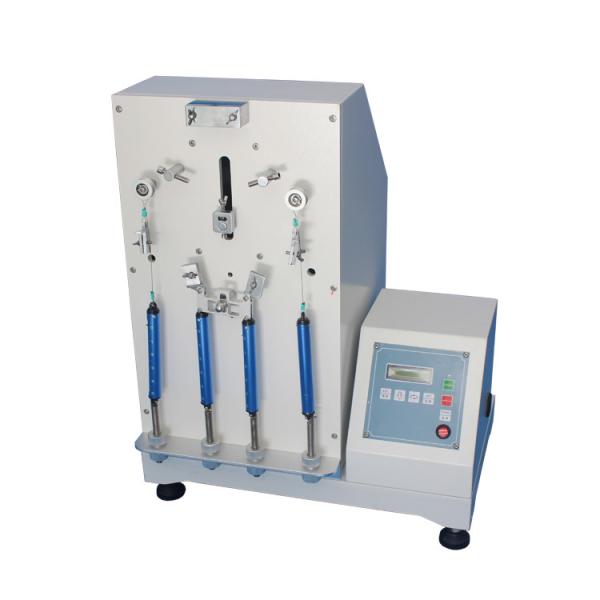

Reliable And Good Zipper Reciprocating Fatigue Testing Machine
Application :
This machine applies to test the reciprocating pulling strength of zipper in vertical and lateral tension, when doing testing, the machine is pulling the zip slider by constant speed at 30 times per minute.
Standard:
CNS-1083,QB/T2171-2173
Specification:
Displacement | 75mm |
Motor | 1/4HP |
Counter | LCD, 0-999,999 |
Machine Size | 280*550*660mm |
Weight | 35KG |
Power | 1, AC220V, 3A |
Transverse clamping device width | 25mm |
Total weight of clamping device | 0.28-0.34kg |
Distance between two device | 6.35mm |
Opening Angle of sample | 60° |
Interdigitation angle of sample | 30° |
![]() |
