| Categories | Universal Testing Machine |
|---|---|
| Brand Name: | GSKA |
| Model Number: | Clamping Force Tester |
| Certification: | CE |
| Place of Origin: | Dongguan China |
| MOQ: | Negotiate |
| Price: | Negotiate |
| Supply Ability: | 100 Set / Sets per Month |
| Delivery Time: | 10-60days after confirmed payment or by contract stipulation |
| Packaging Details: | Export package |
| Clamping Capacity: | 0～2000(kg) |
| Up/Down Height: | 0～300(mm) |
| The Distance Between Plates: | 400～1200(mm) |
| Overall Dimension: | 1200×700×900(mm) |
| Table Weight: | 1500(kg) |
| Measurement & Control System: | PLC/PC controlled (optional) |
| Working Environment: | Temperature Range 0～40℃, Humidity≤80% (no condense) |
| Power: | AC 380V ±10% 50Hz |

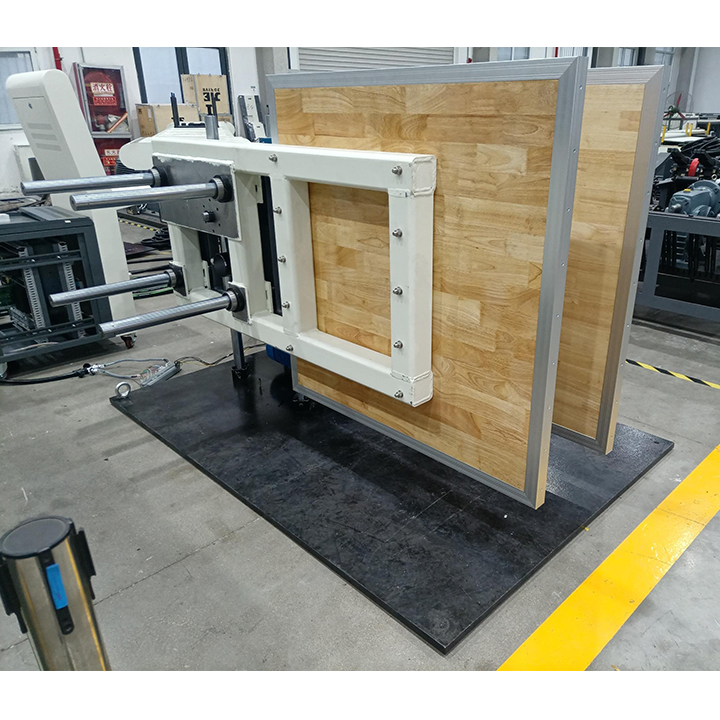

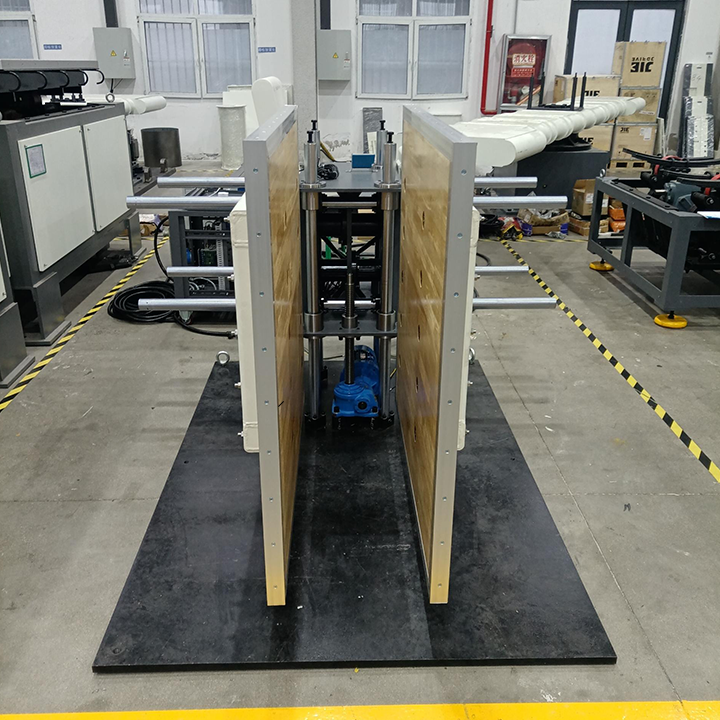

GSKA102 series clamping force tester is an indispensable test method for improving products into high-quality fields. It is suitable for research, development, quality control and manufacturing of electronics, electromechanical, optoelectronic, automotive, toy, packaging and other industries. It can simulate the situation that the goods in the container are clamped when they are transported from the container to the warehouse. Whether the goods are damaged due to the clamping, so as to evaluate the anti- clamping ability of the packaging.
The clamping force tester is a commonly used testing equipment for strength testing of scientific research institutions, colleges and universities, packaging technology testing centers, packaging material manufacturers, and foreign trade and transportation departments.
Technical Specifications:
Model Parameters | GSKA102-1 | GSKA102-2 |
Clamping Capacity (kg) | 0～1000 | 0～2000 |
Clamping Plate Size (mm) | 1000×1000 | 1200×1200 |
The Distance Between Plates (mm) | 400～1000 | 400～1200 |
Up/Down Height (mm) | 0～300 | 0～300 |
Overall Dimension (mm) | 1200×700×900 | 1200×700×900 |
Table Weight (kg) | 1300 | 1500 |
Measurement & Control System | PLC/PC controlled (optional) | |
Requirement for Foundation | Flat cement floor | |
| Power Supply | AC380V , 50Hz | |
Working Environment | Temperature range: 0～40℃, humidity≤80% (no condense) | |
| Standards | ASTMD6055, American SEARS enterprise standards etc. | |
| Remarks | The indicator parameters can be customized by your requirements. | |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
|
