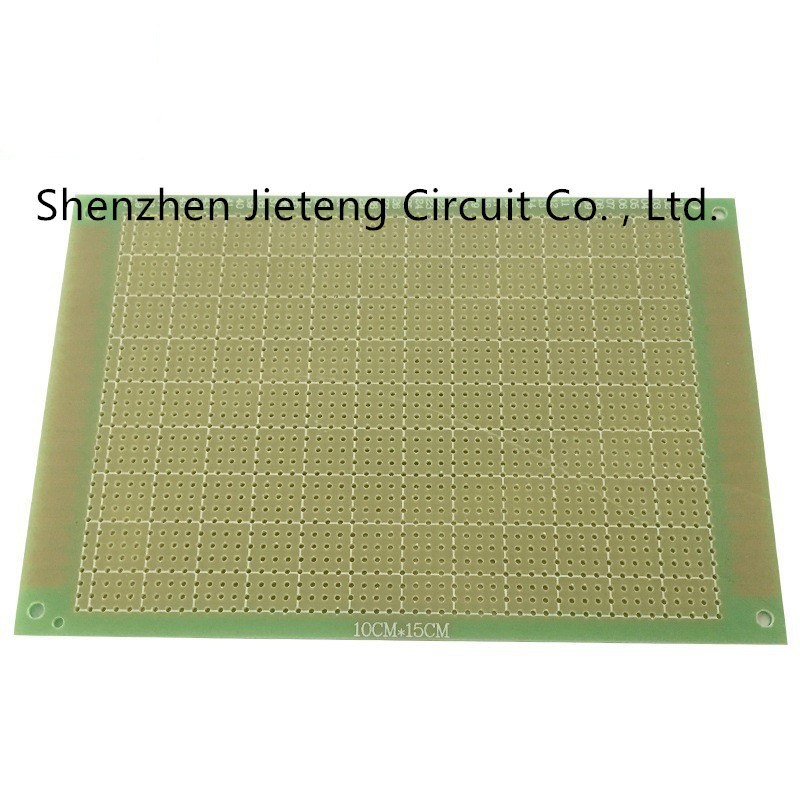

Batch Production M4 M6 Flex PCB Prototype SMT Assembly Service

PCB circuit board blower development design PCB batch production plug-in PCBA one-stop service

Essential details

Model Number:: PCB board

Place of Origin:: Guangdong, China

Brand Name:: JIETENG

Base Material:: FR4, FR4/High TG FR-4/M4/ M6/Rogers/Nelco/Isola

Copper Thickness:: 0.5-10oz

Board Thickness:: 0.4-6.5mm

Min. Hole Size:: 0.1-6.5mm

Min. Line Width:: 3mil

Min. Line Spacing:: 3mil

Surface Finishing:: ENIG,HASL,OSP,ENEPIG

Board Size:: Pcb maker size

Keywords:: pcb maker

Max Layer:: 60L

PCB Standard:: IPC-A-600

Solder Mask:: Green,Black,Blue,Red,Matt Green

Legend:: White,Black,Red,Yellow

Product quotation:: Within 2 Hours

Service:: 24Hours technical services

Sample delivery:: Within 24 Hours

QC test:: 100% test

Item	RIGID	FLEX	RIGID-FLEX
Max Layer	60L	8L	36L
Inner Layer Min Trace/Space	3/3mil	3/3mil	3/3mil
Out Layer Min Trace/Space	3/3mil	3.5/4mil	3.5/4mil
Inner Layer Max Copper	6oz	2oz	6oz
Out Layer Max Copper	6oz	2oz	3oz
Min Mechanical Drilling	0.15mm	0.1mm	0.15mm
Min Laser Drilling	0.1mm	0.1mm	0.1mm
Aspect Ratio(Mechanical Drilling)	20:1	10:1	12:1
Aspect Ratio(Laser Drilling)	1:1	/	1:1
Press Fit Hole Ttolerance	±0.05mm	±0.05mm	±0.05mm
PTH Tolerance	±0.075mm	±0.075mm	±0.075mm
NPTH Tolerance	±0.05mm	±0.05mm	±0.05mm
Countersink Tolerance	±0.15mm	±0.15mm	±0.15mm
Board Thickness	0.4-8mm	0.1-0.5mm	0.4-3mm
Board Thickness Tolerance(<1.0mm)	±0.1mm	±0.05mm	±0.1mm
Board Thickness Tolerance(≥1.0mm)	±10%	/	±10%
Impedance Tolerance	Single-Ended:±5Ω(≤50Ω),±7%(>50Ω)	Single-Ended:±5Ω(≤50Ω),±10%(>50Ω)	Single-Ended:±5Ω(≤50Ω),±10%(>50Ω)
Impedance Tolerance	Differential:±5Ω(≤50Ω),±7%(>50Ω)	Differential:±5Ω(≤50Ω),±10%(>50Ω)	Differential:±5Ω(≤50Ω),±10%(>50Ω)
Min Board Size	10*10mm	5*10mm	10*10mm
Max Board Size	22.5*30inch	9*14inch	22.5*30inch
Contour Tolerance	±0.1mm	±0.05mm	±0.1mm
Min BGA	7mil	7mil	7mil
Min SMT	7*10mil	7*10mil	7*10mil
Surface Treatment	ENIG,Gold Finger,Immersion Silver,Immersion Tin,HASL(LF),OSP,ENEPIG,Flash Gold;Hard gold plating	ENIG,Gold Finger,Immersion Silver,Immersion Tin,HASL(LF),OSP,ENEPIG,Flash Gold;Hard gold plating	ENIG,Gold Finger,Immersion Silver,Immersion Tin,HASL(LF),OSP,ENEPIG,Flash Gold;Hard gold plating
Solder Mask	Green,Black,Blue,Red,Matt Green	Green Solder Mask/Black PI/Yellow PI	Green,Black,Blue,Red,Matt Green
Min Solder Mask Clearance	1.5mil	3mil	1.5mil
Min Solder Mask Dam	3mil	8mil	3mil
Legend	White,Black,Red,Yellow	White,Black,Red,Yellow	White,Black,Red,Yellow
Min Legend Width/Height	4/23mil	4/23mil	4/23mil
Strain Fillet Width	/	1.5±0.5mm	1.5±0.5mm
Bow & Twist	0.30%	/	0.05%
