0.4deg/H Bias Single Axis Fiber Gyro , RS422 Output Angular Sensor

0.4deg/H Bias Gyro Low Price Single Axis Fiber Gyro RS422 Output Angular Sensor Price

Table 1 Main Performance Parameters

FOG-24 micro-nano fiber optic gyroscope (hereinafter referred to as this product) is an angular rate sensor integrating optics with digital output, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions.

This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.

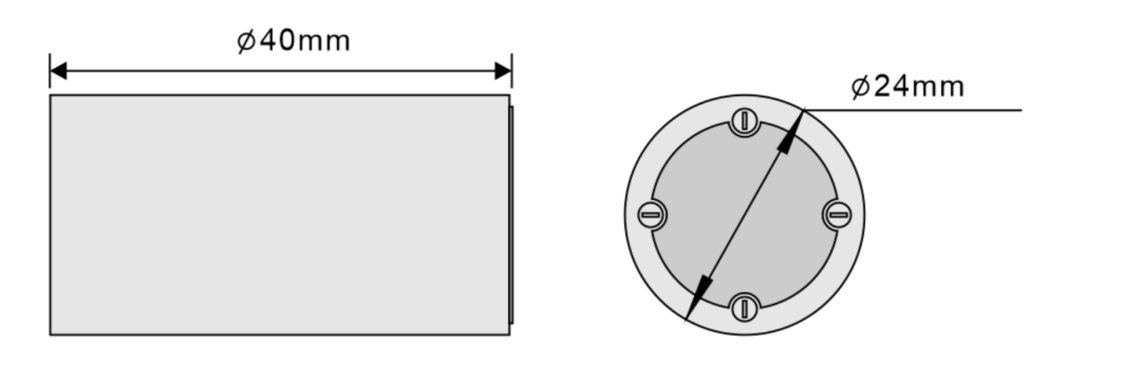

The product is cylindrical, with overall dimensions of φ24 mm × 40mm
Weight≤40g.
Operating temperature -40℃~+65℃.
Storage temperature -55℃~+85℃.
Random vibration level: 20g, frequency range: 20Hz ~ 2000Hz.
