365-395NM UVA LED Lamp Chip High Power Ceramic SMD Lighting and Circuit Design 3535

365-395NM UVA LED Lamp Chip High Power Ceramic SMD Lighting and Circuit Design 3535

365-395NM UVA LED Lamp Chip High Power Ceramic SMD Lighting and Circuit Design 3535
365-395NM UVA LED Lamp Chip High Power Ceramic SMD Lighting and Circuit Design 3535
Categories UV LED Chips
Brand Name: LEARNEW OPTO
Model Number: LN-CVS35UV-P120-A
Certification: CE/RoHs
Place of Origin: CHINA
MOQ: 5000
Price: Negotiable
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500,000PCS per month
Delivery Time: 1-7 working days for samples, 1-4Weeks for quantity Order
Packaging Details: Anti-static Blister packing
NAME: 3535 UVC LED CHIP
POWER: 300W
IF: 8400mA (Max=12A)
VF: 34-38V
Warranty: 10,000Hrs or 2 years
WHOLE SIZE: 35*35MM
Lighting Area: 22*35MM
VIEW ANGLE: 30°
Contact Now
Company Info.
Shenzhen Learnew Optoelectronics Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

365-395NM UVA LED Lamp Chip High Power Ceramic SMD Lighting and Circuit Design 3535

Free sample Custom made 365nm 385nm 398nm 300EW 3535 UV LAMP CHIP for LED growing market


3535 uv led chip Details

UV-APOWERDominant WavelengthOptical PowerIFVFCircuitWHOLE SIZELighting AreaVIEW ANGLELENSSUBSTRATECHIPS
LN-CVS35UVH-P120-A
(Hybrid version)		300W395nm 50%
385nm 50%		122000-145000mW8400mA
(Max=12A)		34-38V10S12P35*35MM22*35MM30°QUARTZ GLASS LENSALN CopperingVERTICAL
(LG or SEOUL SEMI)
LN-CVS35UV-P120-A300W365nm95000-110000mW
385nm120000-140000mW
395nm125000-150000mW

UV LED CHIP Design Advantage:

  • Long life span
  • low thermal resistance
  • High effiency 40%-50%
  • Ingorganic encapsulation
  • High density and intensity
  • Screw free assemble for high power curing use
  • Multi wavelength 365nm/385nm/395nm/405nm/420nm in one design
  • Special view angle in 30DEG or 120DEG

​

UVA CHIP Appilcation:

  • UV curing
  • LED growing market
  • Offset printer
  • 3D printer
  • Exposure machines
  • Inkjet printer
  • High intensity curing Market like 3KW,7kW,15KW...

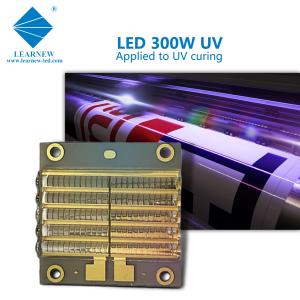

3535 UVA LED CHIP picture


3535 UV LED CHIPS FAQ


Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2:All the pictures are real photo?

A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on or ask our team.
Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly on . Or you can contact us for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
