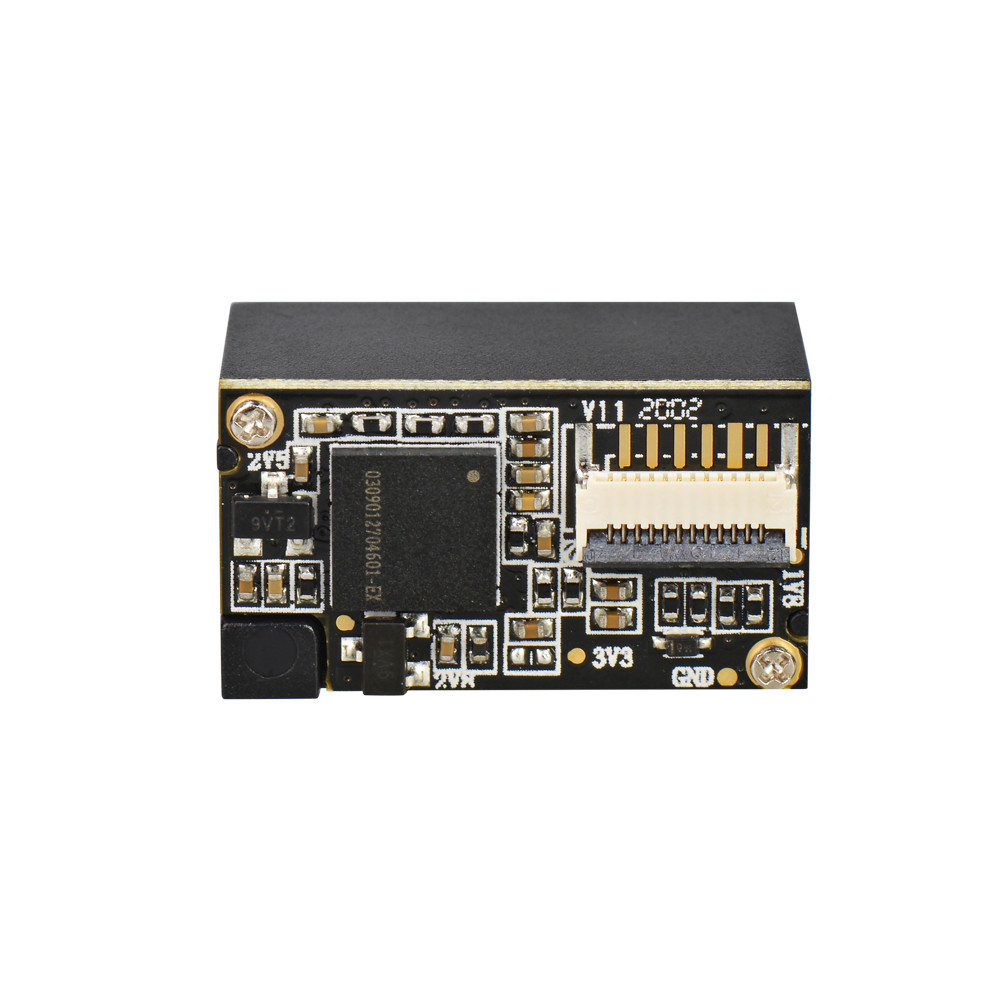

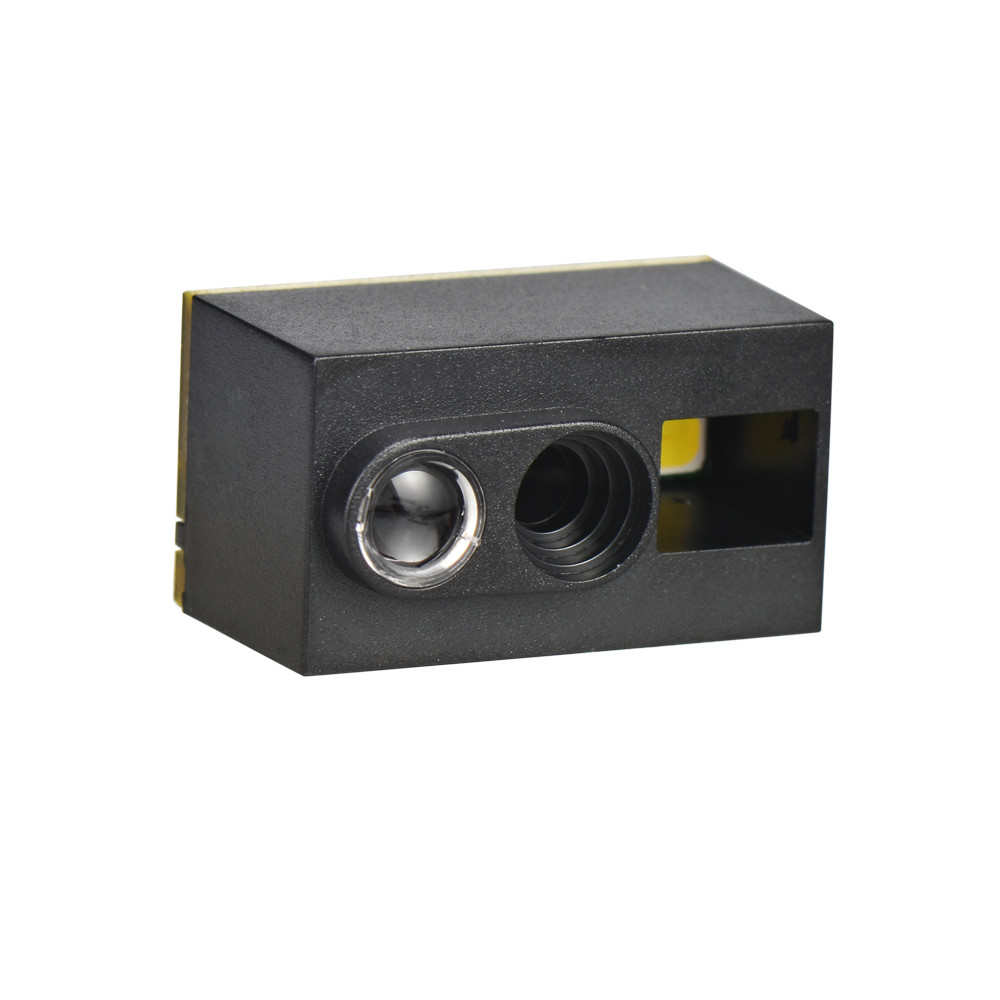

1D 2D Fixed Mount Barcode Scanners Fast Scanning USB RS232 TTL Qr Scanner Module

Technical parameters

Imaging Sensor : CMOS

Optical Source : (Aim) Green LED, (Illumination)white LED

Trigger Mode : Auto-sensing scanning

Indication : Buzzer & LED

Resolution : Ratio 640×480 CMOS (300,000 pixel)

Decoding Speed : 500times/second

Interface : RS232,USB,TTL,Micro USB

Resolution : 4mil

Decoding Capability : 1D: UPC/EAN,with complementary UPC/EAN,Code128,Code39,Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.

2D: PDF417 QR Aztec DataMatrix Maxicode MicroPDF417 etc

Depth of field : 40-100mm Code 39(5MIL),50-220mm EAN-13 (13MIL),50-90mm Data Marix(10MIL),30-150mm PDF417(6.67MIL),25-240mm QR Code(20MIL)

Scan Angle : Roll 360°, Pitch± 55°, Skew ±55°

Current Working :160mA Stand-by : 20mA

Working Voltage : DC3.3 V

Storage Temperature : -40°C ~ 70°C / -40°to 158°F

Working Temperature : -20°C ~ 60°C / -4°to 140°F

Certificate : CE,FCC,ROHS,IP54,FDA,SGS

Shenzhen Yuhengda Technology Co., Ltd(YHDAA) is one of the leading and professional barcode scanner and thermal printer manufacturers in China. YHDAA focus on barcode read technology with over 10 years of experience in barcode scan and print technology industry area.

YHDAA products include 1D&2D barcode scanner,laser and CCD barcode scanner,wireless barcode scanner, barcode scanner module,scan engines,omnidirectional scanning platform, thermal printer etc. YHDAA products have been widely used in logistic, supermarket,retailing, medical,postal communication, office automation,manufacturing etc. All products are certificated by CE,FCC,RoHS,IP54,FDA,RF etc.

We have our own R&D department, Quality Control department,sale and after-sale department. As a barcode scanner manufacturers,We have full set of hi-tech testing equipment,also with strictly management and process on production.we support the OEM and ODM orders, No matter who you are, an end-user, a trader, a software integrator, a branding hardware distributor, we are deeply convinced that you can find cost effective products with high performance.

We have exported our products to America, Canada, Europe, India, Turkey,Russia, UK,Indonesia, and more than 100 countries with more than 10,000 customers.

YHDAA insists on the business principle of "Quality First, Credit Utmost",and YHDAA does the best to be your reliable business partner.,Facing the global market, we will follow the trends, growing and benefiting together with our customers and We will offer customers high quality products at competitive prices.

Welcome to China visit our factory!
