| Categories | Barcode Scanner Module |
|---|---|
| Brand Name: | YHDAA |
| Model Number: | YHD-M300D |
| Certification: | CE,FCC,ROHS,IP54,FDA,SGS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Packaging Details: | YHD-M300C 1D CCD Barcode Scanner Module Standard List : Scanne Module*1, Cable *1, Manual *1, Box *1. |
| Type: | 1D CCD Barcode Scanner Module |
| CPU: | ARM 32-bit Cortex |
| Interface: | TTL,Micro USB,RS232,USB |
| Resolution Ratio: | 2500 pixel |
| Imaging Sensor: | CCD |
| Trigger Mode: | Continuous,Auto-Induction |

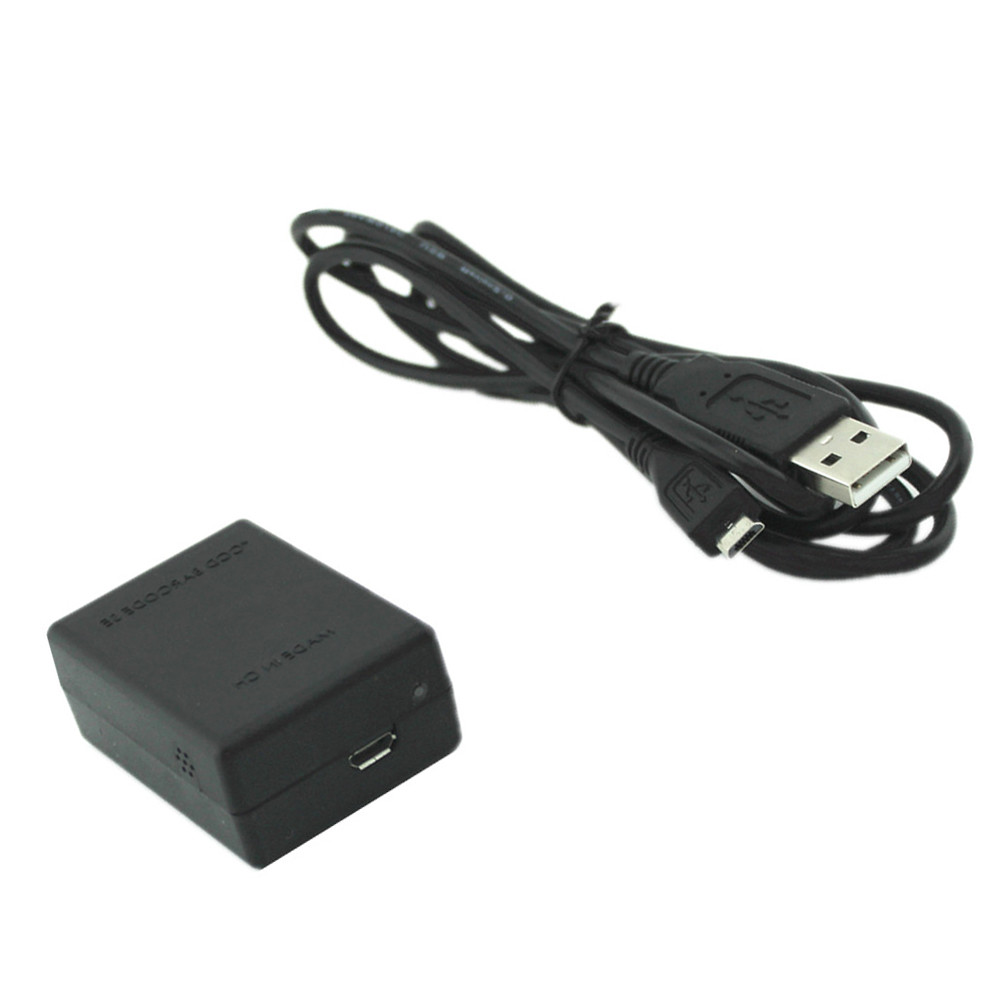

CCD Sensor 1D Barcode Scanner Module USB RS232 Serial TTL YHD-M300C
YHD-M300D Auto-sensing scanning,can saves power and time,when the product barcode passes through the scanning window, the module wakes up to read the barcode instantly.It can be applied in parcel locker,supermarket locker, ticket machine, self-service vending machine, intelligent express cabinet, kiosk,locker, access control machine,self-service store, check-in machine, bank counter machine, factory assembly line,logistics,hospital,etc.
Features
● Mini Size: 5 *3.7 *2.2cm/ 1.9 *1.4 *0.8in.
● Powerful decoding capacity for most 1D codes.
● Plug and play, driver-free, convenient for usage.
● Supports Continuous/Auto-Induction , 2modes for option.
● Can scan the phone, computer and other electronic screen.
● Super scanning and decoding ability, can read incomplete and fuzzy codes.
● Small size,easily to integrate into any device, especially for limit space application.
● Support secondary development -- the serial port development instruction is complete to satisfy each kind of host computer control interactive demand.
Technical parameters
CPU : ARM 32-bit Cortex
Optical Source : 620nm Visible red light diode
Resolution : Ratio 2500 pixel
Imaging Sensor : CCD
Trigger Mode : Continuous,Auto-Induction
Indication : Buzzer & LED
Decoding Speed : 300times/second
Interface : Micro USB,TTL,RS232,USB
Resolution : 4mil
Weight (without cable) : 22g
Dimensions(scanner) : 50×37×22 mm(Length x Width x Height)
Minimum Contrast : ≥ 25%
Decoding Capability UPC/EAN,with complementary UPC/EAN,Code128,Code39,
Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.
International general 1D barcodes.etc
Depth of field : 40-120mm Code 39(5MIL),20-300mm EAN-13 (13MIL),25-340mm Code 39(20MIL),15-500mm Code 39(40MIL)
Scan Angle : Tilt ±60°, Rotate ± 65°, Deflection ±42°
Current Max. : 86mA Working :33mA~86mA Stand-by : 33mA
Working Voltage : DC5/3.3 V ± 10%
Storage Temperature : -40°C ~ 70°C / -40°to 158°F
Working Temperature : -20°C ~ 60°C / -4°to 140°F
Relative Humidity : 0%-95%, no condensation state
Drop test : 1.5m fall to concrete
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List: Scanne Module*1, Cable *1, Manual *1, Box *1.
Single Package Size: 123*90*42mm (USB/TTL/Micro USB) ; 120*60*120mm(RS232)
Single Gross Weight: 0.15kg(USB/TTL/Micro USB) ; 0.2kg(RS232)
Carton: 50pcs/7KG( USB/TTL/Micro USB) ; Carton Size: 470*220*260mm
Carton: 50pcs/9KG(RS232) ; Carton Size: 600*300*240mm









|   |
