Ptm600 Toxic And Harmful Portable Multi Gas Monitor Sound Alarm

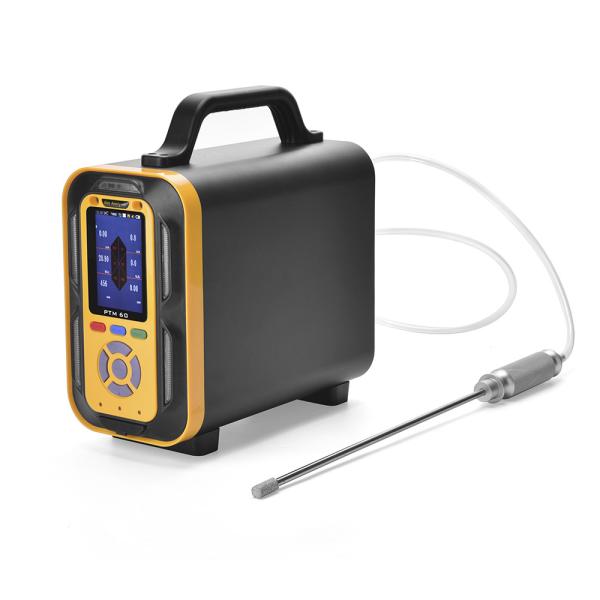

PTM600 Portable Multi-Gas Analyzer

OVERVIEW

PTM600 Portable Multi-Gas Analyzer with a world-famous brand sensor could test 18 gases at the most. With a pressure sensor, temperature and humidity sensor works with different temperature sampling probes. It could quickly acquire and analyze concentration components in scientific research, university and chemistry, environment and flue gas.

PARAMETERS

Gases to be detected	Range	Minimum reading	Response time T90
Combustible gas ( EX )	0-100%LEL	0.1%LEL	≤10 seconds
Methane ( CH4 )	0-100%LEL	0.1%LEL	≤10 seconds
Oxygen gas ( O2 )	0-30%Vol	0.01%Vol	≤10 seconds
Carbon monoxide ( CO )	0-100ppm	0.1ppm	≤25 seconds
Carbon dioxide ( CO2 )	0-500ppm	1ppm	≤20 seconds
Ozone ( O3 )	0-1ppm	0.001ppm	≤20 seconds
Hydrogen sulfide ( H2S )	0-10ppm	0.001ppm	≤30 seconds
Sulfur dioxide ( SO2 )	0-10ppm	0.001ppm	≤30 seconds
Nitric oxide ( NO )	0-10ppm	0.001ppm	≤30 seconds
TotalVolatileOrganic Compound gases ( TVOC )	0-10ppm	0.001ppm	≤30 seconds
Volatile gases ( PID )	0-10ppm	0.001ppm	≤30 seconds

Gases	Combination of 1 ~ 6 types of gases which can be expanded to 18 or more types of gases, such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on.
Application scenarios	All the cases require the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
Detection range	0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 0 ~ 200 mg/L, 0 ~ 100%LEL, 0 ~ 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
Resolution	0.01ppm or 0.001ppm (0 ~ 10 ppm);
	0.01ppm (0 ~ 100 ppm),
	0.1ppm (0 ~ 1000 ppm),
	1ppm (0 ~ 10000 ppm or more),
	0.01 mg/l (0 ~ 200 mg/l),
	0.1% LEL,
	0.01%LEL
	0.001% Vol
Detection principle	Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, Laser or others, depending on the type of gas, range, field environment and user demand.
Accurancy	≤±2% F.S (other or higher precision levels can be customized)
Linearity	≤±2%	Repeatability	≤±2%	Uncertainty	≤±2%
Response time	T90≤20 seconds			Recovery time	≤30 seconds
Working environment	Temperature: -40 ℃ ~ + 70 ℃ humidity: ≤10 ~ 95% RH and built-in filters can be used in high humidity or high dust environment.
Sample gas temperature	-40 ℃ ~ + 70 ℃ the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300 ℃.

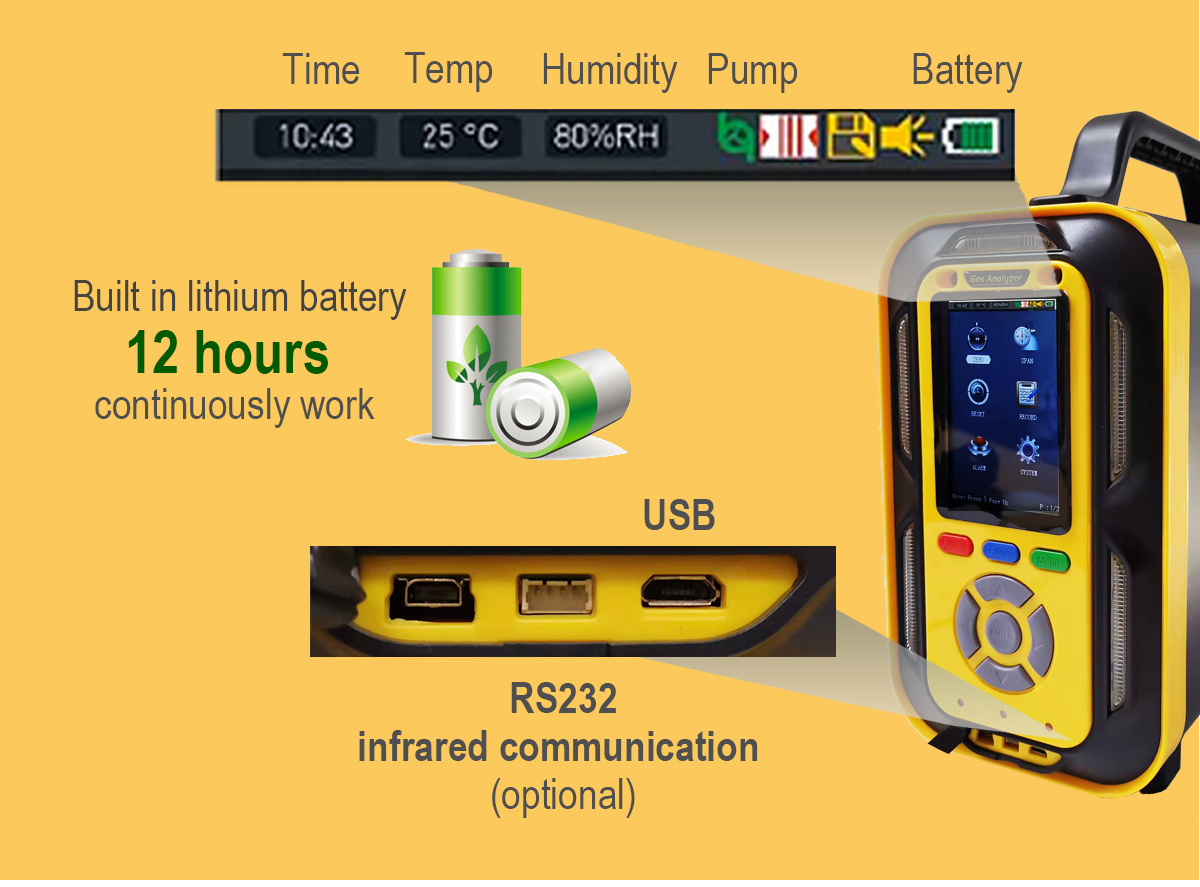

Power supply	3.6VDC, 10000mA high capacity rechargeable polymer battery
Detection mode	Built-in pumped type with 800 ml/min flow rate

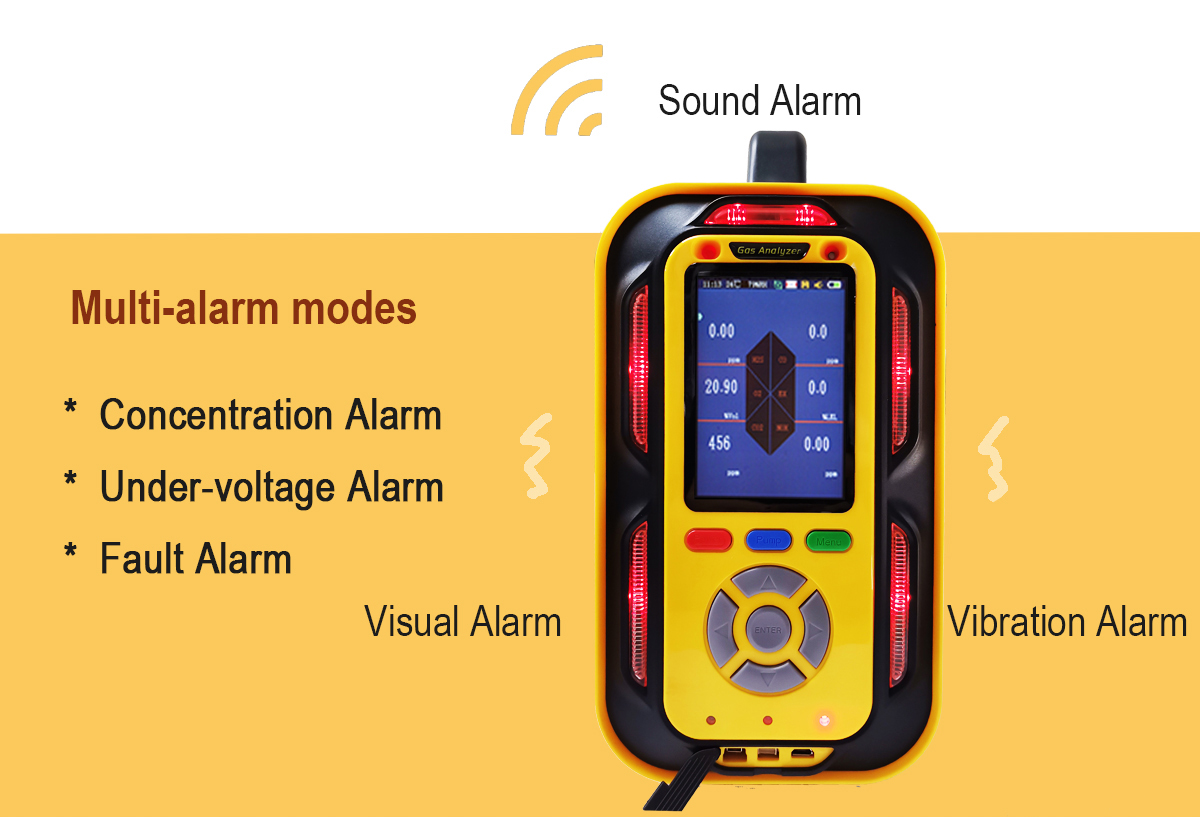

Alarm mode	sound & light and vibration alarm

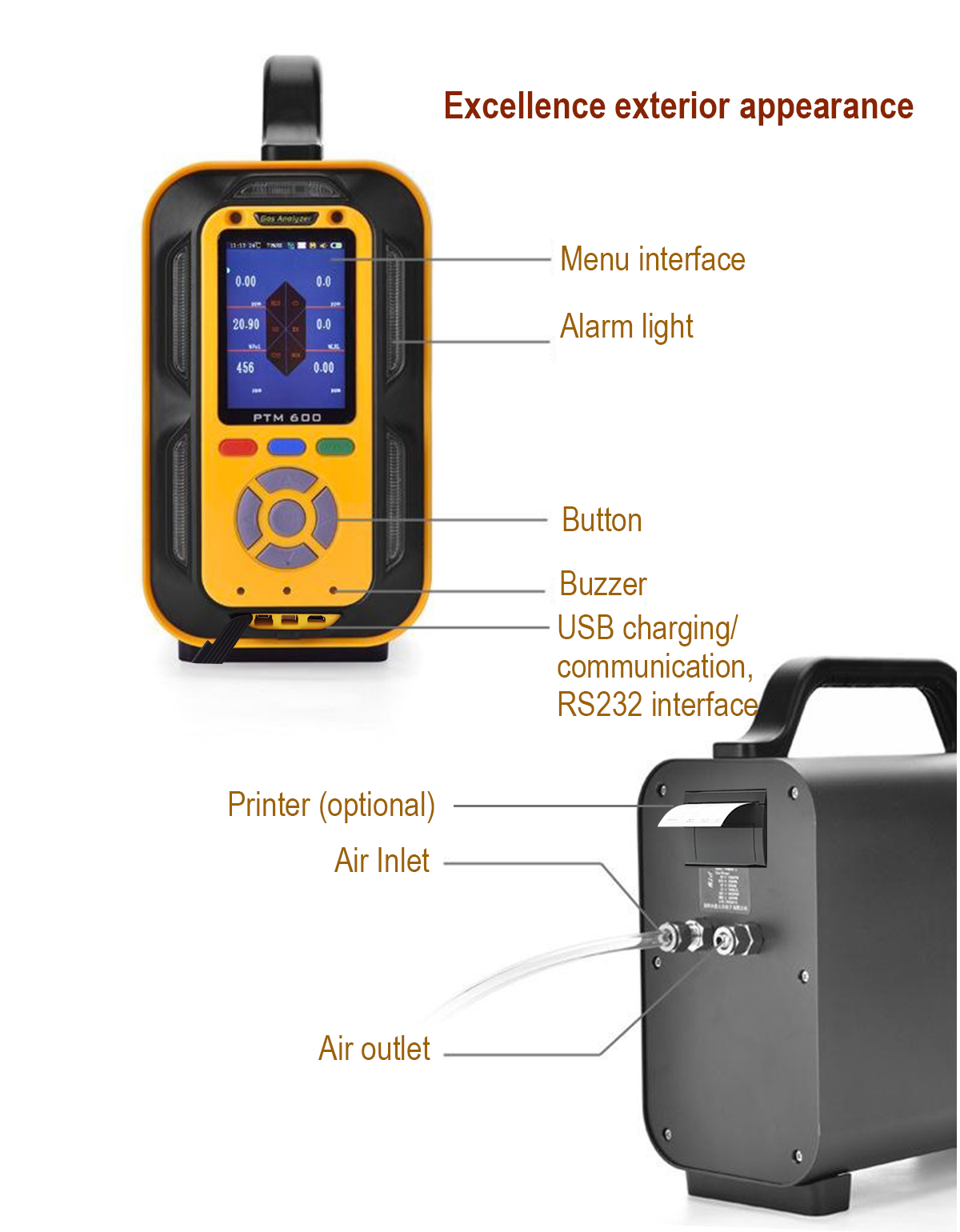

Communication interface	USB (charging and communication), optional: RS232, infrared communication, automatic recognition
Data storage	Standard configuration is the data storage capacity for 100, 000 entries; SD card storage and USB disk storage functions are optional configurations.
Protection level	IP66
Explosion-proof type	Intrinsically safe type
Explosion-proof mark	Exia II CT6
Exterior dimensions	230×210×120 mm (L×H×W)
Weight	2.5Kg
Standard accessories	Manual, qualification certificate, warranty card, USB charger (including the data cable), aluminum carrying case
	Built-in humidity dust filter, 0.4-meter stainless steel sampling handle (1 meter of hose, with a dust filter, not retractable)

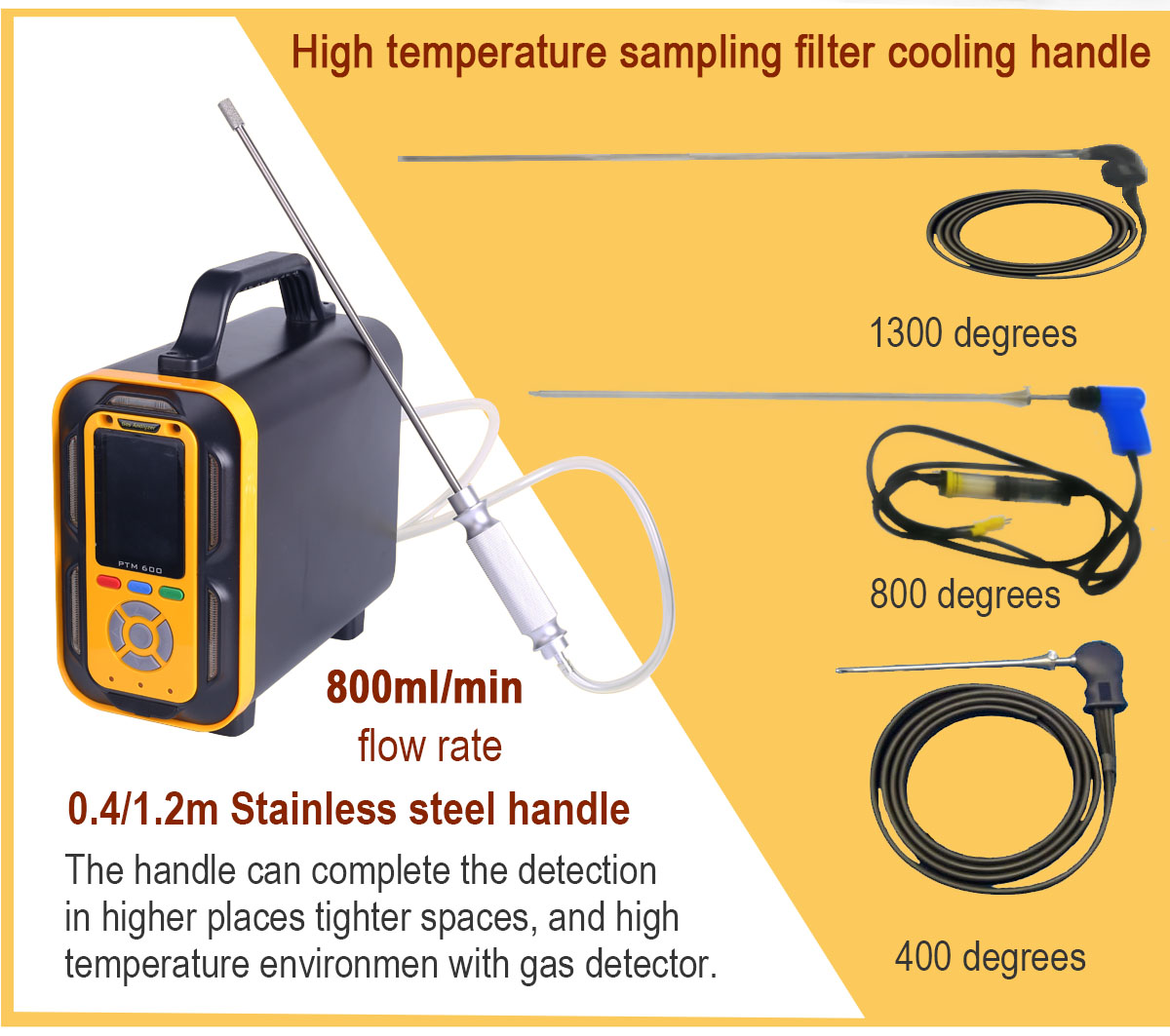

Optional items	1.2 m retractable sampling handle
	High-temperature sampling and cooling filter handle, high-temperature humidity pretreatment system
	External mini wireless infrared printer or built-in mini printer
	SD card storage, USB disk storage, and wireless data communications.
