| Categories | Cable Testing Machine |
|---|---|
| Brand Name: | ZL |
| Model Number: | ZL-1027B |
| Certification: | CE,ISO |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 60 Sets |
| Delivery Time: | 5-8 work days |
| Packaging Details: | IEC884-1 360° Cable Plug Bend Testing Machine with 6 Groups Test Stations is packaged within wooden case. |
| Product name: | IEC884-1 360° Cable Plug Bend Testing Machine with 6 Groups Test Stations |
| Total count: | 0-999999 times can be set manually |
| Bending angle: | 10°-360°(Manually adjustable ±1°) |
| Test speed: | 5-60 times/minute adjustable |
| Load: | 50g,100g,200g,300g,500g |
| Total power: | 200W |
| Power supply: | AC220V/50Hz/2A |
| Key words: | 360° Bend |
| Company Info. |
| Dongguan Zhongli Instrument Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

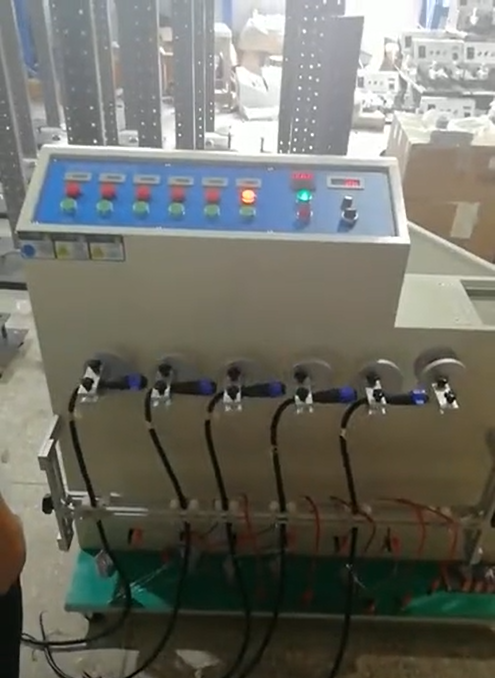

IEC884-1 360° Cable Plug Bend Testing Machine with 6 Groups Test Stations
Application:
This testing machine complies with UL817, CSA222, CCC, VDE, GB2099.1, IEC884-1, SAA and other relevant standards "General safety requirements for flexible cord components and power cords". It is suitable for bending test of power cord and DC cord by related manufacturers and quality inspection departments.
It is used to test the bending resistance and performance of the products under certain speed, lifting weight, and times of wires, cables and various products.
ZL-1027 Cable plug bend testing machine.pdf
Corresponding standard:UL817,CSA222,CCC,VDE,GB2099.1,IEC884-1,SAA
Specification:
| Model | ZL-1027B |
| Test station | 6 groups of wire bending tests are carried out at the same time each time |
| Counting function | wire breakage and power failure saving test times function |
| Total count | 0-999999 times can be set manually |
| Bending angle | 10°-360°(Manually adjustable ±1°) |
| Test speed | 5-60 times/minute adjustable (digits directly display the current test times) |
| Load | 50g,100g,200g,300g,500g (6 ±2g each, or as specified by customer) |
| Motor | Jingyan brand motor AC: 90W |
| Counter/Relay | Imported Oumulon is stable and durable |
| Weight | 110kg |
| Dimension (WxDxH) | 1250*400*1100mm |
| Total power | 200W |
| Power supply | AC220V/50Hz/2A |
Accessories:
Operation manual, 1 copy
Power cord 1 pc
Inner hexagon 1 pc
|
