Socket Plug Insertion Force Tester , LCD Display Computer Testing Equipment

Categories Mobile Phone Test Equipment
Brand Name: ZL
Model Number: ZL-2808
Certification: ISO
Place of Origin: China
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 set per month
Delivery Time: 7-10 days
Packaging Details: Packaged within wooden case
Power: 220v 50hz
Frequency range: 0 to 999999
Plug Power range: 0 ~ 20kg
Test Speed: 0 ~ 60MM (digital display)
Examples stroke adjustment: 0 ~ 50MM
Minimum Insertion Force Resolution: 0.01kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Socket Plug Insertion Force Tester , LCD Display Computer Testing Equipment

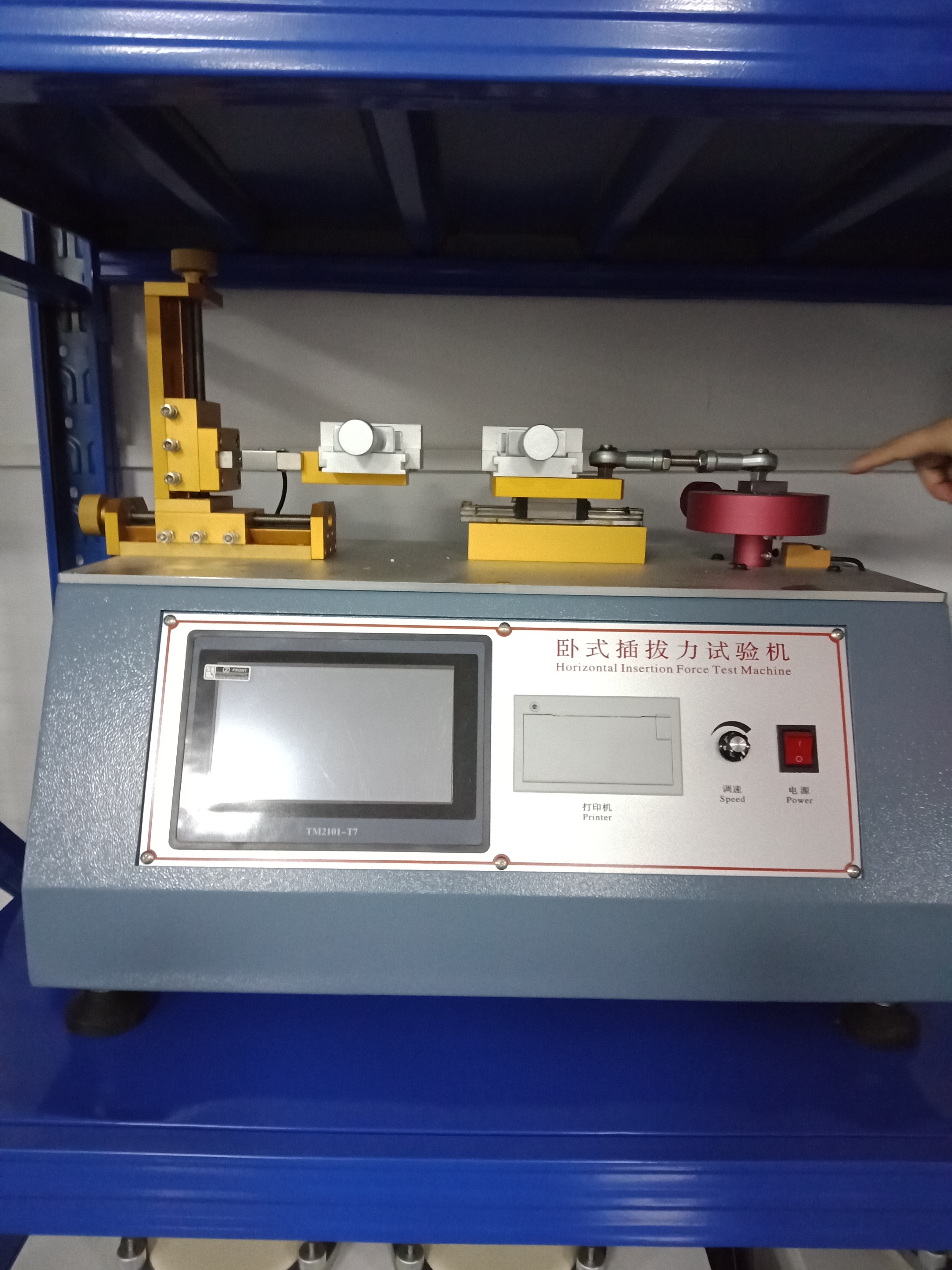

Socket Plug Insertion Force Tester with LCD Display
Phone and Laptop Connector Testing Equipment
The socket plug insertion force tester is designed for comprehensive connector plug testing applications. Featuring embedded microcomputer control technology, this equipment provides precise measurement and display of insertion force, extraction force, and real-time force values.
Key Features
  • Programmable test cycles with adjustable count settings
  • Variable travel speed with digital speed display
  • Automatic zero calibration function
  • Mathematical computation capabilities
  • Rotating eccentric power transmission design
  • Independent test speed from stroke length
  • Dual unit conversion between Newtons (N) and Kilograms (KG)
  • Equally efficient for both long and short stroke connectors
Technical Specifications
ModelSocket Plug Insertion Force Tester
Frequency Range0 to 999,999 cycles
Transmission ModeRotating Eccentric Mechanism
DisplayLarge-screen LCD Real-time Display
Force Measurement Range0 ~ 20 kg
Minimum Force Resolution0.01 kg
Stroke Adjustment Range0 ~ 50 mm
Test Speed0 ~ 60 mm/s (Digital Display)
Zero SettingAutomatic Origin Zeroing
Unit ConversionN, KG
Dimensions550 (D) × 470 (W) × 450 (H) mm
Operating VoltageSingle-phase 220V
Socket Plug Insertion Force Testing Equipment with LCD Display
