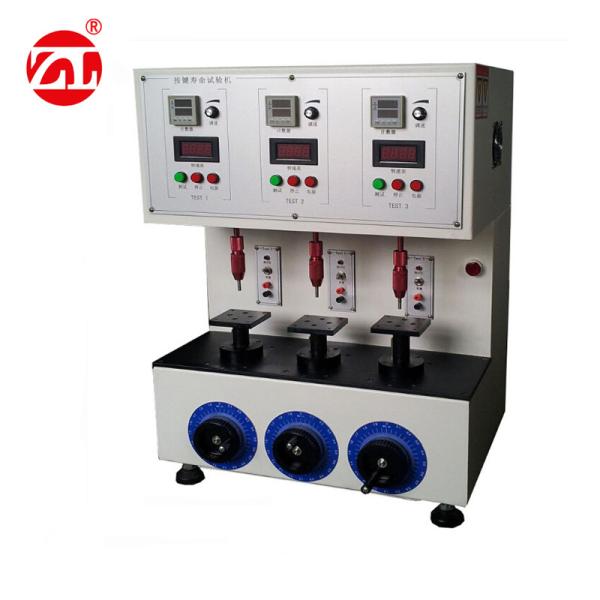

Advanced Programmable Controllers Triaxial Key and Button Life Testing Machine
Equipment summary:
Phone keys striking life aging test machineis suitable for striking life aging test of button switches,
computer keyboards, conductive rubber keypads, metal shrapnel keys (commonly known as” pot son”)
orthe same type of buttons and keys. The advanced programmable controllers will supervise the entire progress of key life test.
Technologic parameter:
| Model | ZL-2801 |
| Specifications | uni-axial LT-1, tri-axial LT-3 ,five axises LT-5 |
| Durable speed | 1-6 rounds/s OR speed adjustable |
| Test pressure | MAX load: 2kgf , loaded weight adjustable |
| Up and dowm stroke | 10mm |
| The amount of movement in the test bench | 80 * 80mm |
| The panel size | 50mm |
| The impact way of movement | up and down compression using linear bearing motion,accurate positioning |
| Conductive test button | Automatic stopping devices if the keys non-conductive and destroyed |
| Automatic stop device can be set to 8 digits | 99999999 times automatic shutdown |
| Touch warming lights | connected by touch probe with metal reeds |
Download Brief:
ZL-2801A Four-station key life testing machine.pdf...
|
