| Categories | Handheld Barcode Scanner |
|---|---|
| Brand Name: | symcode |
| Model Number: | MJ-6709 |
| Certification: | CE / RoHS / FCC |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 50,000pcs per month |
| Delivery Time: | Sample order:1-3 days / Bulk order:7-15days |
| Packaging Details: | Carton box |
| Reading Mode: | laser |
| Decode: | 1D |
| Interface: | RS-232, USB , PS2 |
| Reading capacity: | Read barcode symbology from phone screen(Mobile phone,PC etc.)(opetioanl) |
| Environment luminance:: | 5,000 Lux Max(Fluorescence) |
| Depth of scanning field:: | 0-280mm(0.33mm.PCS 90%) |
| Reading Distance: | 2.5-600mm(100%UPC/EAN) |
| Scan Rate: | 100 scans/second |
| Voltage:: | DC 5V±1% |
| Shock proof: | withstand multiple drops from 1.8m |

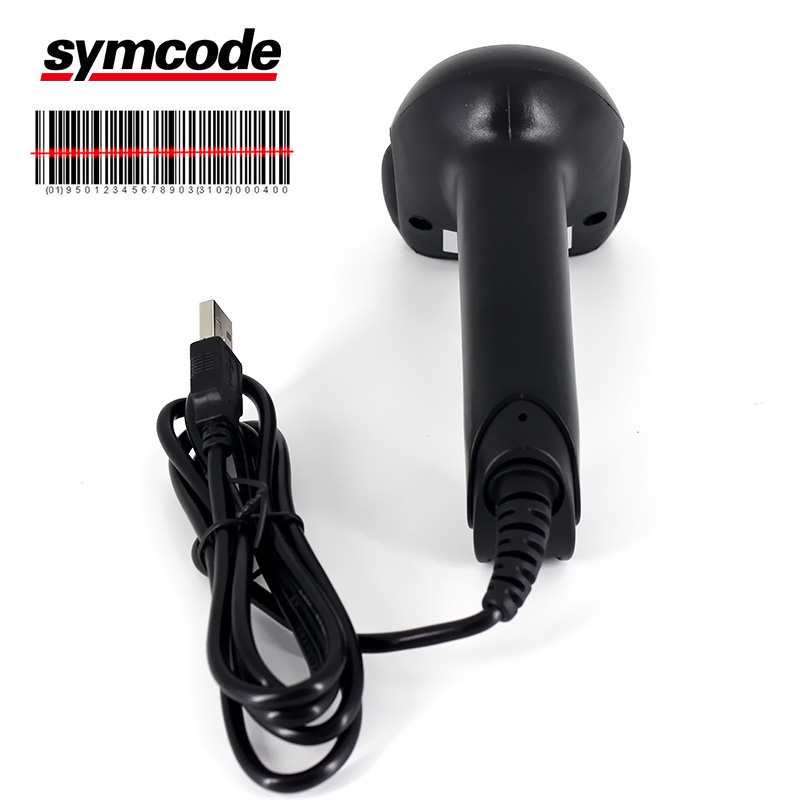

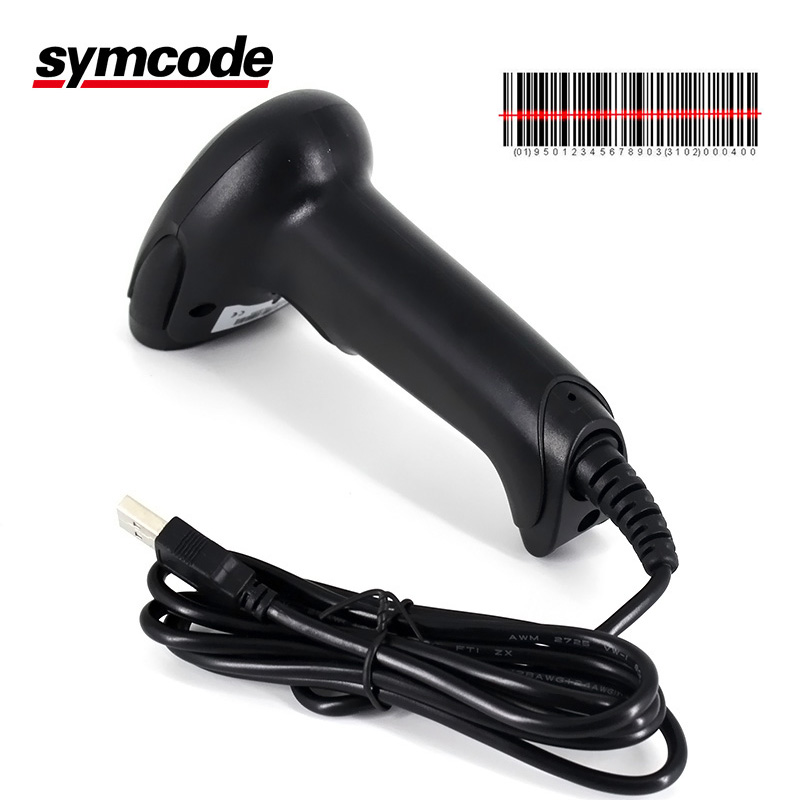

USB Laser Barcode Scanner MJ-6709
Wired Handheld Bar Code Scanner Reader Black White
Features:
1. Sharp design with comfortable feeling in hand
2. High decoding ability and high performance
3. High reading ability with auto-sensor mode
4. Support universal keyboard language
5. OEM ODM project is welcomed.
6. Water & dust proof
7. Competitve price
8. Fast delivery
9. Good performance
10. CE FCC ROHS IP54 certificated
11. MOQ 1 piece
12. Read quickly
13. Easy to use
14. Economic and practical
Plug the USB receiver into your computer,when you scan a barcode, the value is entered into the field your cursor is in
Decode capacity:
UPC/EAN(include complement code), Code128
UCC/EAN128, Code39, Code 39Full ASCII, Code128Full
ASCII, Codabar, Interleaved 2 of 5, Code93, MSI, Code11,
ISBN, ISSN, china post code, etc
Support to read UPS,USPS, FedEx,DHL, BOOK barcode.
Compatible Computer System
Windows, Mac and Linux
Trigger Mode:
Manual trigger,Continuous scanning (do not need to press the button)
Opetional Auto mode
| Performanceparameters | Description |
| Light Source: | Visible Laser diode ,650nm |
| Scan rate: | 300scans per second |
| Scanning Angle: | ±55°±65°±30°(left&right, front&back, turn) |
| Scanning wideth: | 30mm@ scanning window 220mm@200mm |
| Scanning type: | Single-line |
| Resolution: | 0.1mm(4mil)at pcs 0.9 |
| Depth of scanning field: | 0-280mm(0.33mm.PCS 90%) |
| Print Contrast Minimum: | 30%,minimum reflective difference(@650nm) |
| Indicator light: | LED DIODE |
| Interface Support | USB,PS2,RS232 |
| Minimum Resolution: | 3mil |
| Pysical Charateristic | Description |
| Voltage: | DC 5V±1% |
| Current: | 85mA(Operating mode),36mA(Quiescent current) |
| Dimensions: | L83mm*W70mm*H172mm |
| Weight: | 205g(include the cable) |
| USB: | 2M(Can not remove) |
| Housing Materials: | ABS+PC |
| User Environment: | |
| Operating Temperature: | -10°~50° |
| Storage Temperature: | -40°~70° |
| Operating Humdity: | 5~95% relative humidity,non-condensing |
| Environment luminance: | 5,000 Lux Max(Fluorescence) |
| IP Level: | IP54 |
| Drop Specification: | withstands multiple 3m drops to concrete |
| Safe: | |
| EMI/RFI: | FCC class A and CE |
| Laser safety: | CDRH class 2 laser product |
Decode Capability: | UPC-A,UPC-E,EAN-13,EAN-8,Code 39,code128, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5 ,Codabar, EAN 128,M ,China Post code,ect. |
| Certificate | RoHS,CE,FC,IP54 |
|
