Touch Screen 4 Side Seal Packing Machine For 4 Lanes Military Compressed Biscuits

Categories Alcohol Swab Machine
Brand Name: Sayok
Model Number: SN-280A
Certification: CE
Place of Origin: China
MOQ: 1 set
Price: Negotiate
Payment Terms: T/T, L/C
Supply Ability: 100 set /month
Delivery Time: 15-30 working days
Packaging Details: Exported wooden case
Product Name: Auto Fragrance Tablet Packing Machine
Capacity: 180-280 Pack/min
Control System: PLC
Display System: Touch Screen
Material: Stainless Steel
Power Consumption: 200W
Power Supply: AC 220V 50Hz
Size: 2800*1300*1500mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

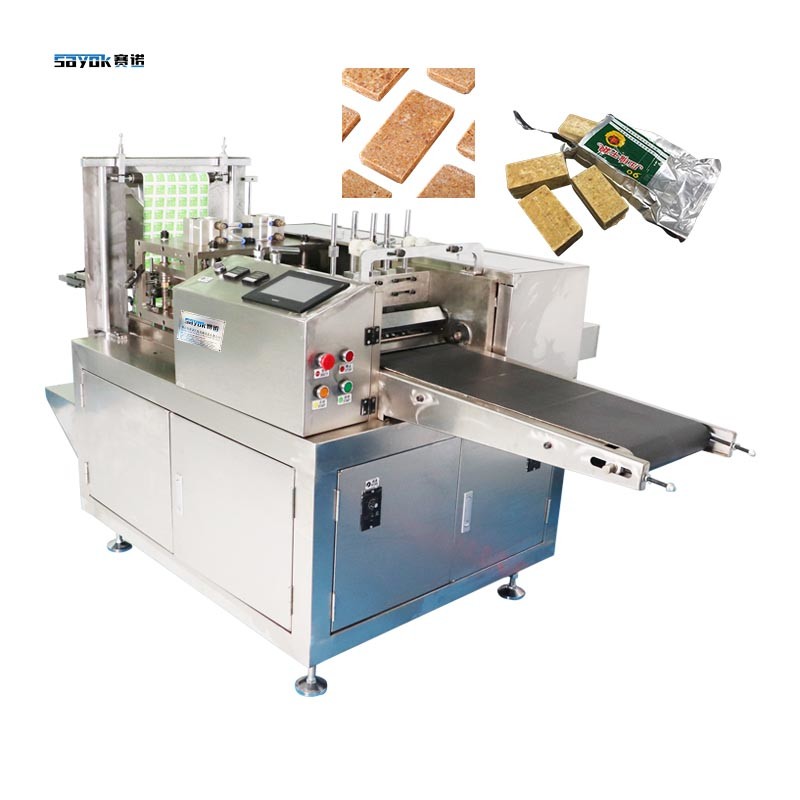

Touch Screen 4 Side Seal Packing Machine For 4 Lanes Military Compressed Biscuits

SN-280A 4 Lanes Military Compressed Biscuits Durable 4 Side Seal Packing Machine


FEATURES AT A GLANCE
1. Color touch screen operation interface operation; Servo drive system is adopted; PLC programmable controller intelligently controls the operation of the whole machine, precise film feeding, stable transmission of cotton sheets, and precise bag cutting.
2. Inlet liquid pump, the amount of liquid added can be set directly on the touch screen.
3. Under the premise of high liquid volume, the sealing is tight, no liquid leakage, no foaming
4. Independent guide column die set, mobile synchronous heat sealing system, the temperature of the sealing surface is more uniform and stable, the edge sealing is tight, and it is durable! .
5. Packaging materials of different thicknesses and materials have wider adaptability.
6. Multi-purpose: This machine is also suitable for: single film automatic slitting and sealing.


Specifications:


Model

SN-280A

Bag Size(L) 50mm×(W)50mm, to be customized
Film requirements

73-110g/ ,paper-aluminum film composite wrapping paper, Φ≤350 mm, width 400 mm, inner diameter of paper core 76.2

Inner diameter of raw paper coreΦ 76.2mm (=3")
Power220v ,50hz ,1.5 kw
Packing Speed200-280 Bag/min, depends on products
Machine Size(L*W*H)2800×1300×1500mm
Weight500 KG
Applicationssuitable for Car Fragrance Tablet, Drying Tablet, Mosquito Fragrance Tablet, Hotel Soap, Drying Tablet, Aromatherapy Tablet and Compressed Biscuits Cookies etc square blocks' packaging
Optional itemspacking lanes can be customized.

Machine Details:

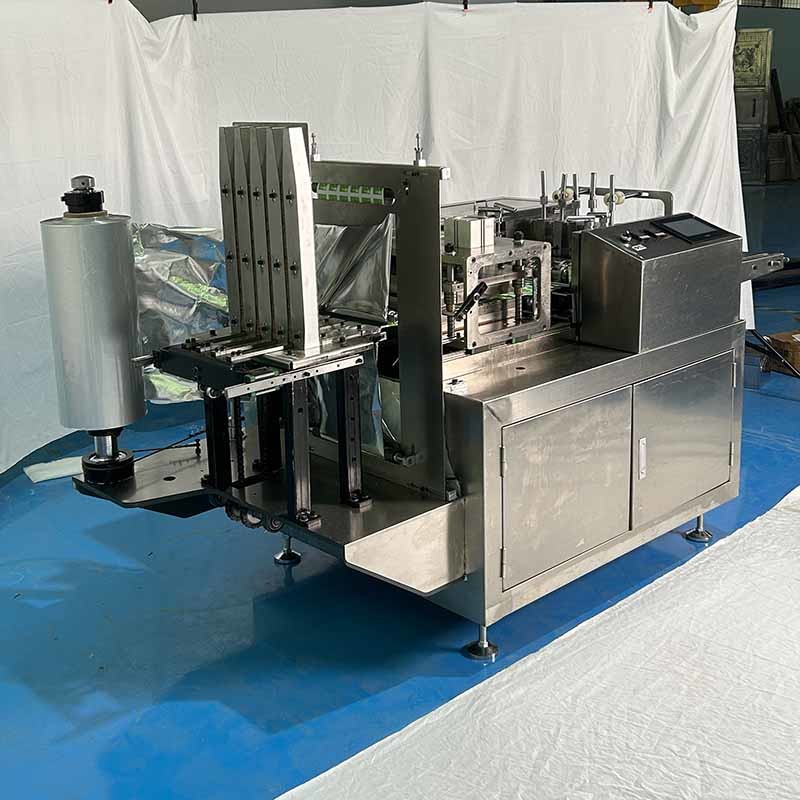

1. Packaging machine appearance

High quality stainless steel appearance, durable and long life in use.

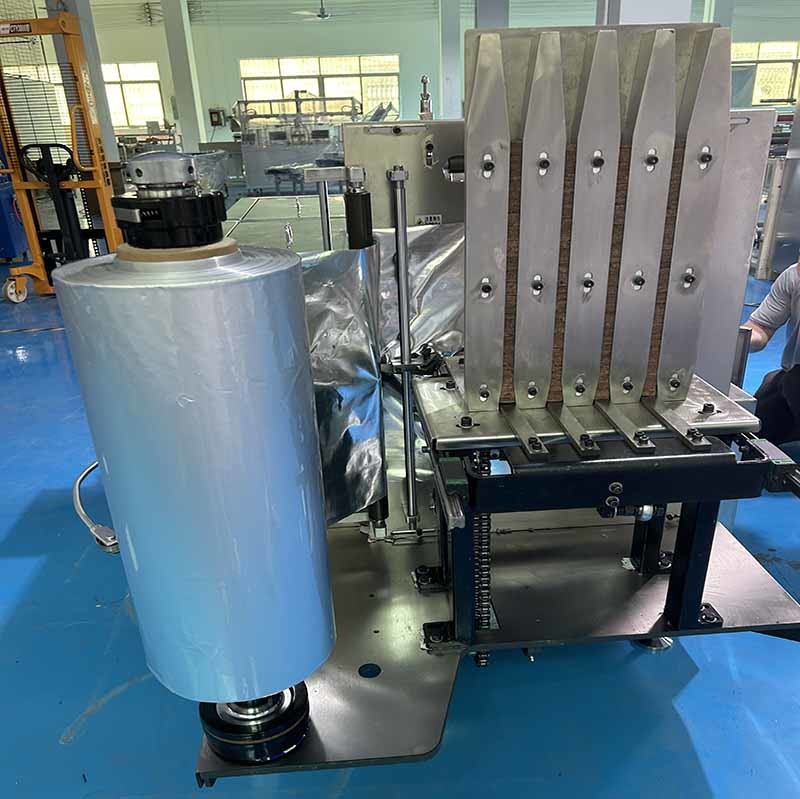

2.Automatic feeding design

It can realize the one-step process of material release, packaging and sealing and cutting, 4 lanes design for high productivity. Big film roll holder, can support different size product and films.

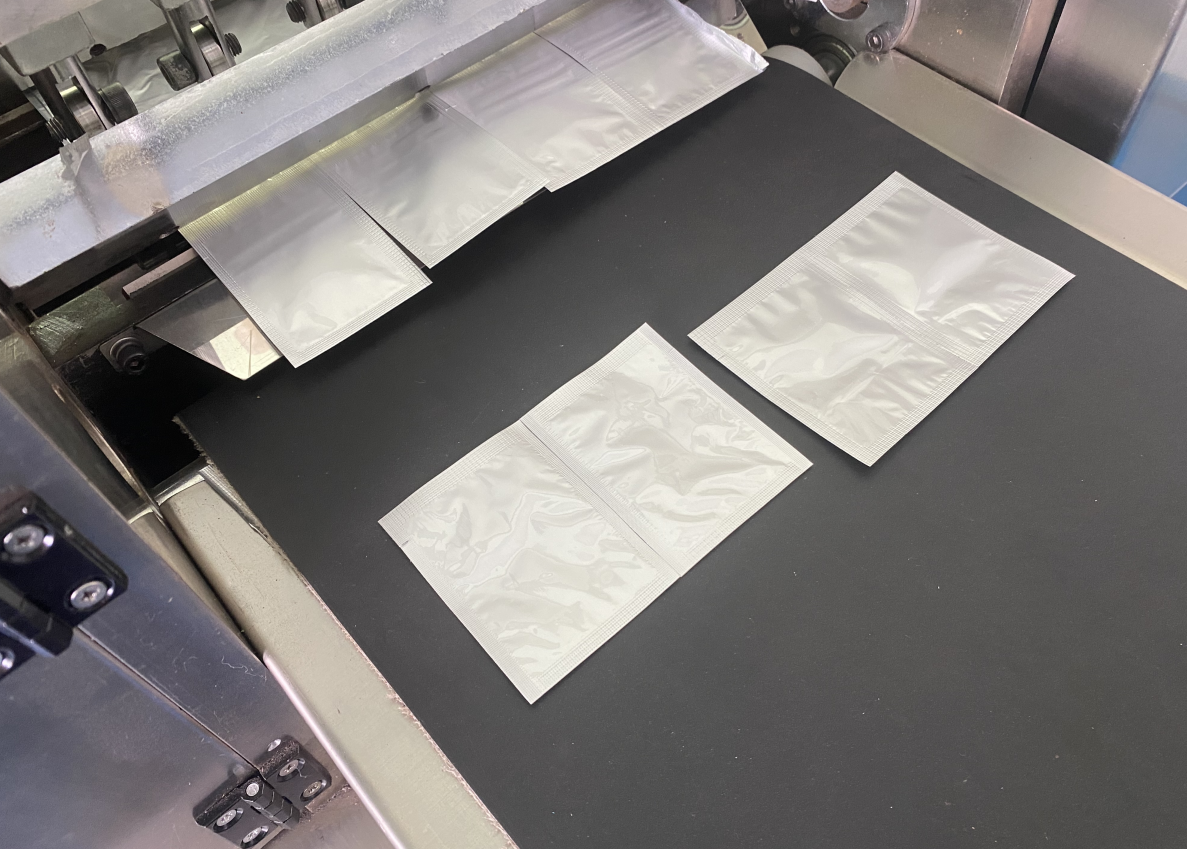

3. Automatic bag forming
Good quality hardness cutter to devide, make sure each bags with neat edges. Automatic bag forming from fill rolls, save time and cost.

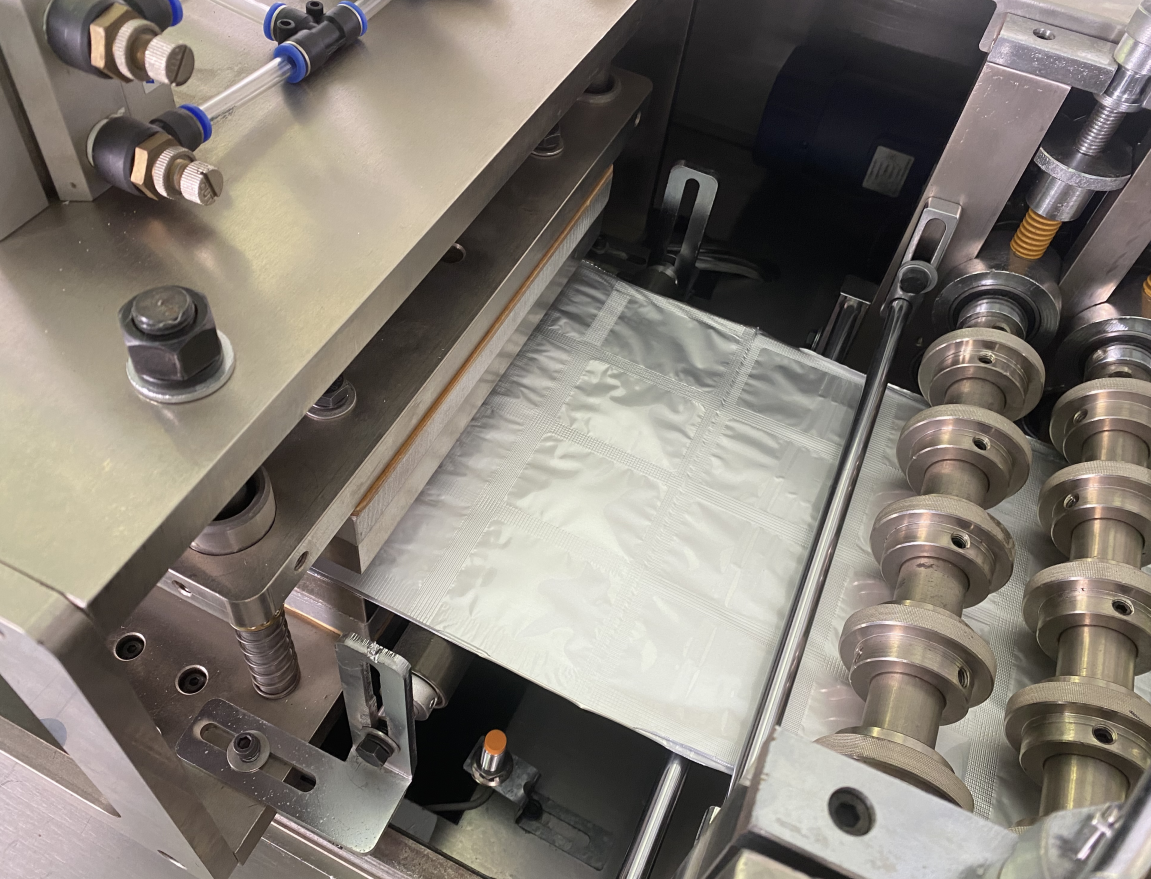

4.Good sealing and no leaking issue
Four side seal packing with good sealing effect, meet medical supplies and other products requires for high sealing. And equipped with easy tearing stripe, it is very convenient for comsumer to open the package.

5. Control System

High quality big brand servo driven system, make sure the machine can be operating stablely.

6. Applications

Multiple sizes available, widely use for different product size, suitable for Car Fragrance Tablet, Drying Tablet, Mosquito Fragrance Tablet, Hotel Soap, Drying Tablet, Aromatherapy Tablet and Compressed Biscuits Cookies etc square blocks' packaging.
