RJ45 5A 24 Pin Circular Connector For LED Soltions

RJ45 5A 24 Pin Circular Connector For LED Soltions

RJ45 5A 24 Pin Circular Connector For LED Soltions
RJ45 5A 24 Pin Circular Connector For LED Soltions
Categories Waterproof Circular Connectors
Brand Name: Cnlinko
Model Number: YM-24-C24PE
Certification: UL, CE
Place of Origin: CHINA
MOQ: 10pcs
Price: 3-5USD per set
Payment Terms: T/T,PAYPAL
Supply Ability: 100000 set per month
Delivery Time: 5-7 work days
Packaging Details: 6 pcs in box, 144 pcs in carton
material: PBT
current: 5A
voltage: 250V
contacts: gold plated copper
Contact Now
Company Info.
Shenzhen Linko Electric Co., Ltd.
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

RJ45 5A 24 Pin Circular Connector For LED Soltions

24 Pin and Multi-pin connector for LED and Automatic Industrial Soltions

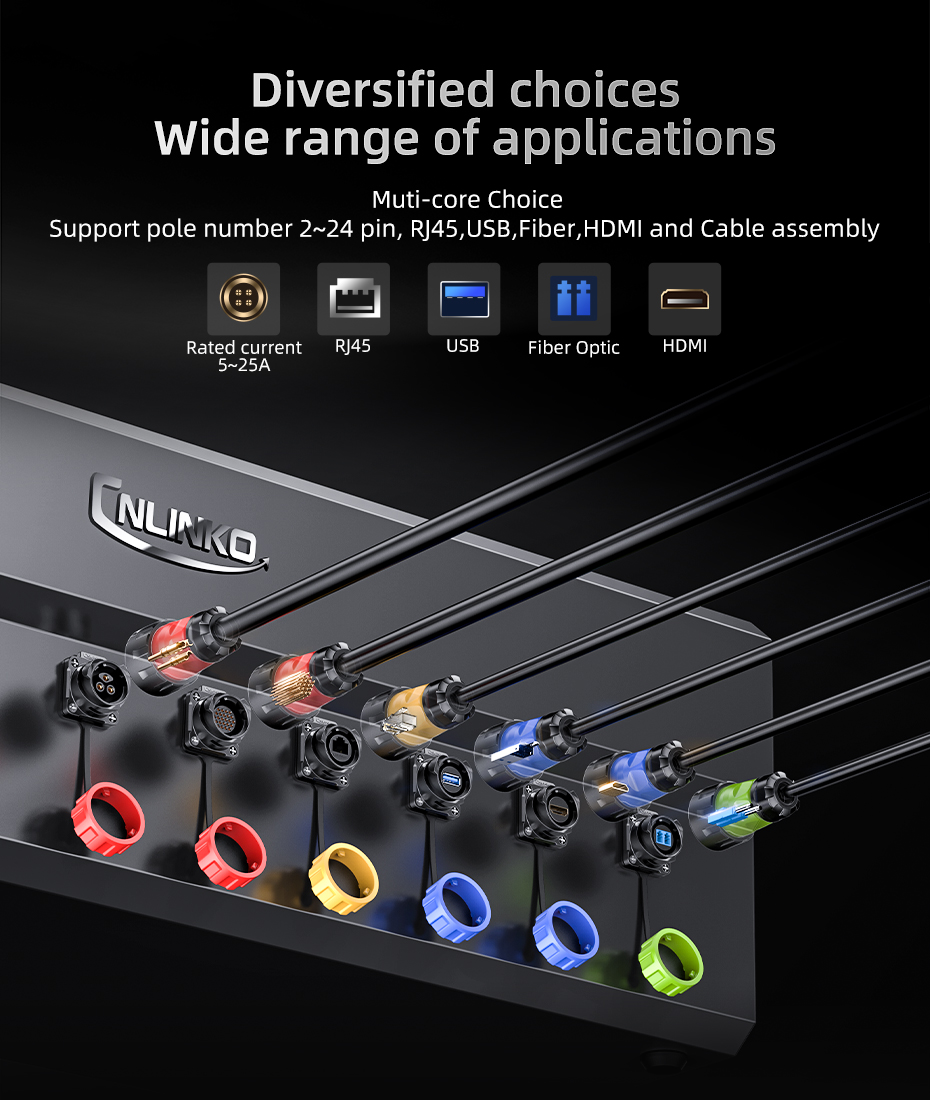

A variety of styles (fiber, USB, RJ45, power supply) to adapt to different industrial needs.
Stable power and signal transmission, power multi-core dressing and reverse mounting design (optional slotting).
The power line's unique wire spring technology design is more suitable for stable current transmission and low temperature rise.
The power supply copper pin crimping and soldering optional connection method is fully compatible with outdoor installation work.
The product is IP65/IP67 rated in the connected state.




Specifications
Connecting modePlug/unplug
Protection levelIP67
Cable specification0.3mm2 ~ 0.5mm2 /22~20AWG

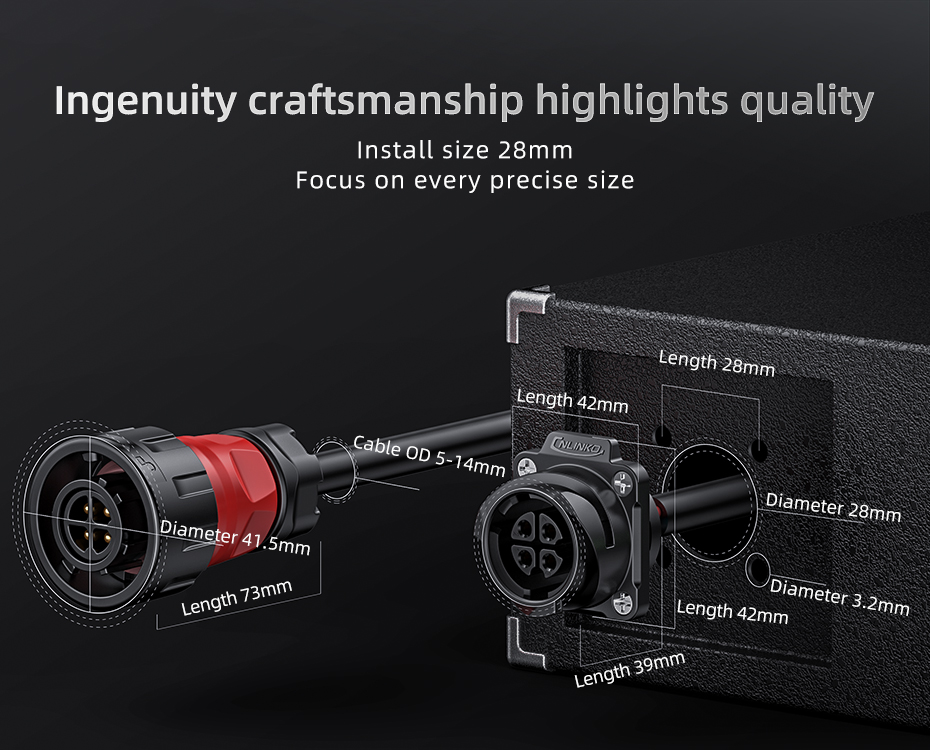

Diameter rangeΦ5.0mm ~Φ6.5mm
Contact diameter×Qty1.0×24
Current rating(A)5A
Operating voltage(AC.V.rms)125V
Withstand voltage(AC.V)1minAC 1000V
Contact resistance<5mΩ
Insulation resistance>500MΩ
Durability≥500 mating&unmating cycles
Temperature rating-40°C~80°C
Prevent the combustion levelUL94-V0

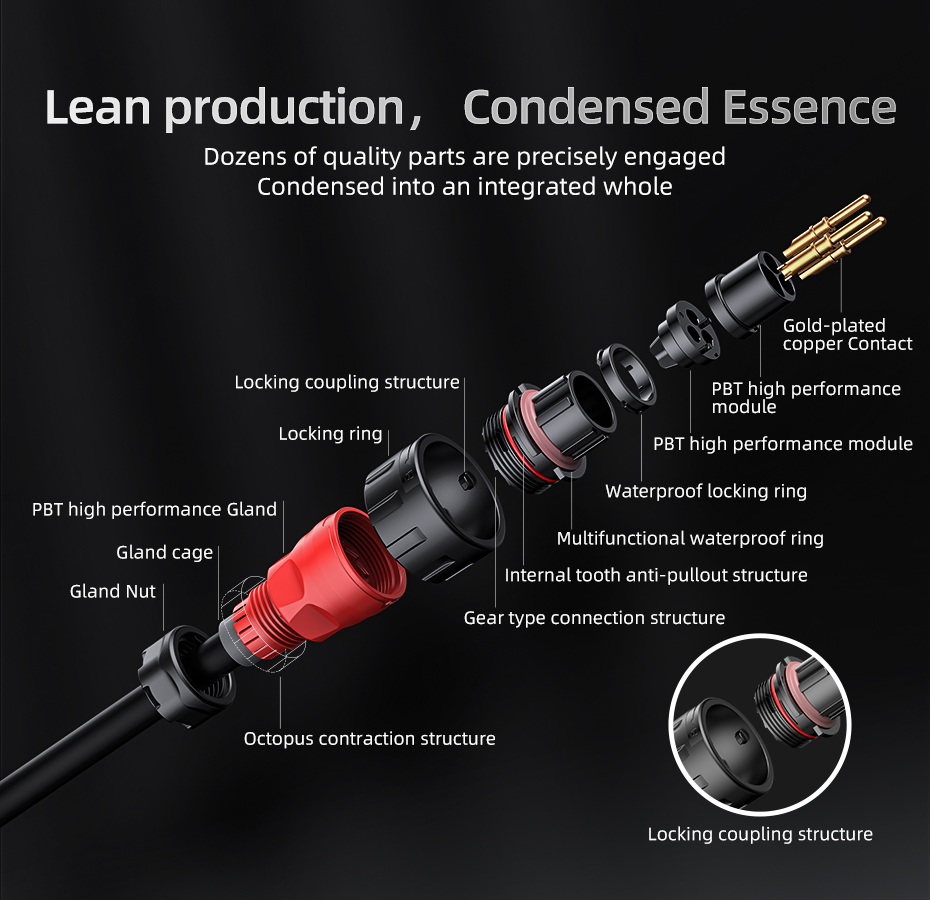

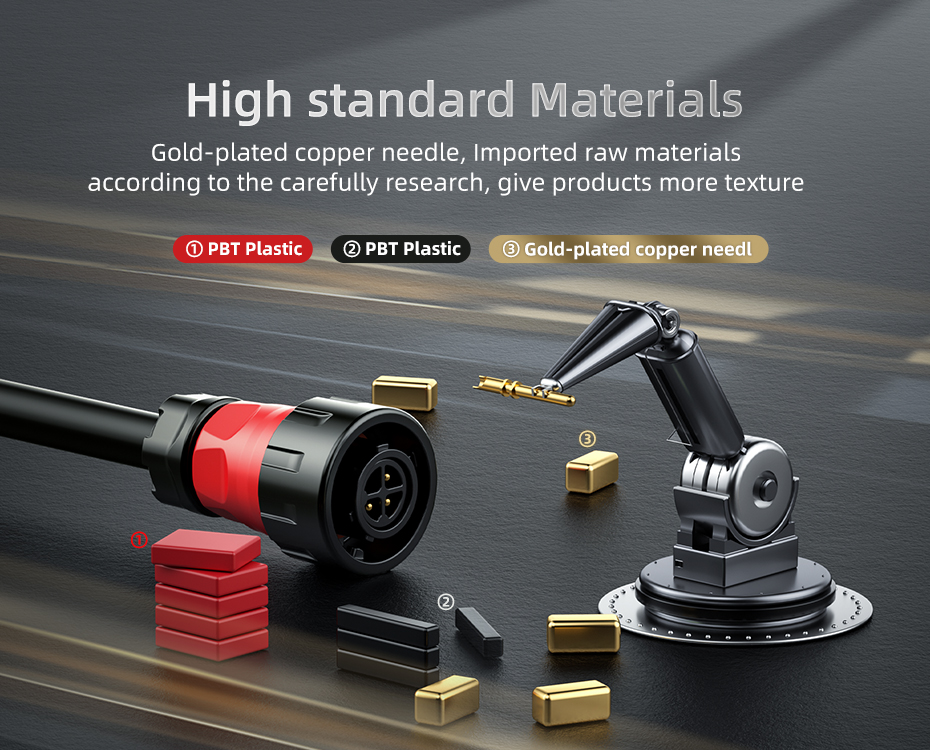

Material
Shell&insulated partsHigh performance engineering plastics
Hardware metalZinc alloy(pearl hard chromium)
Contact pinCopper alloy(gold-plated)
SpringStainless steel
SealingSilica gel

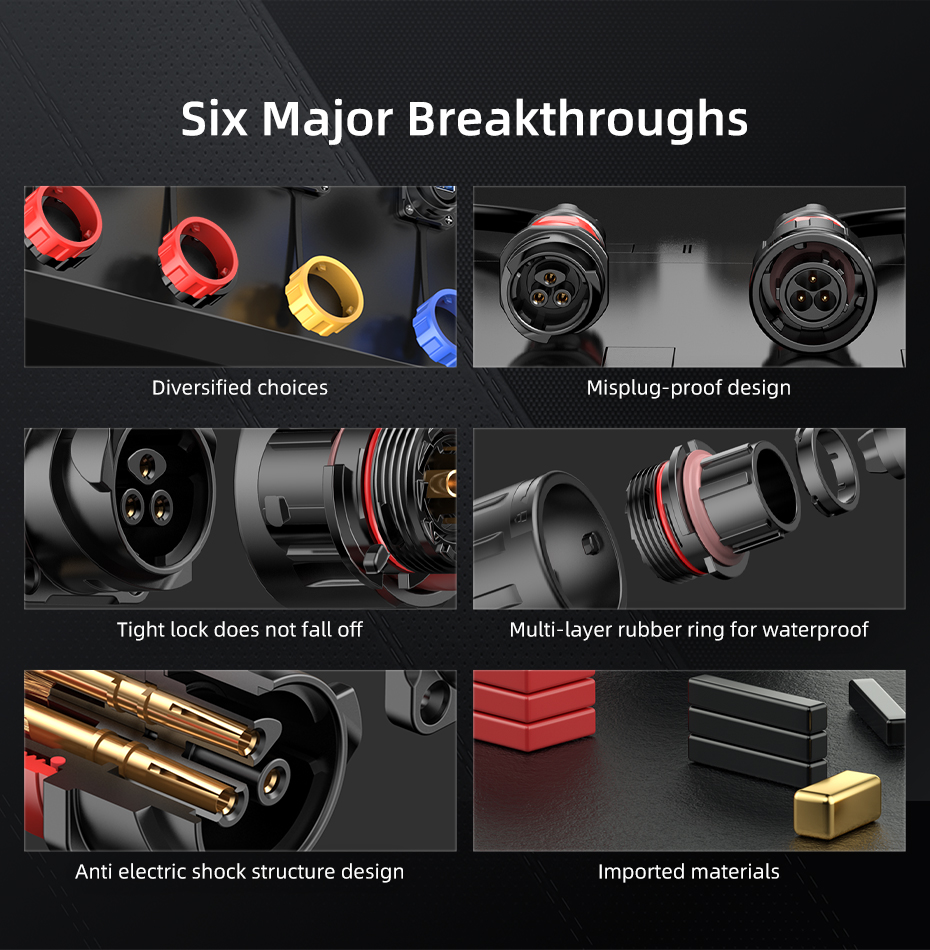

Main characteristics
- Sealed against dust and fluid (IP68)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out
Application industries
- Stage equipment- The smart grid
- Medical equipment- Server
- Solar energy equipment- Ship equipment
- Electric power equipment- Vehicle equipment

Packaging & Shipping
1. 5pcs to a box, 40 boxes to a carton,or use customized packing with MOQ1000 pcs/model boxes.
2. Lead time: 7-10 working days after received deposit
3. DHL/UPS/Fedex/EMS/TNT(door to door) or use customer partner

Our Service
1. Supply OEM and ODM service
2. With professional quality control system and R&D department
3. To make customized needs with national level laboratory
4. Free samples are available
5. Supply the best service to you with the contact details below:
FAQ:
Q1: What are connectors?
A1: Connectors are connected to the electrical and mechanical components of electrical circuits.
(all in all: cable to cable; cable to machines)

Q2: What classes do connectors have?

Shape		FrequencyFunction
circularhigh-frequencyfor printed board; cabinets;
rectangularlow frequencysocket connectors; for audio equipment, power, signal, etc.

Q3: Why to choose CNLINKO? Any advantages?
A3: The answer is Yes. There are 5 major advantages (reasons).

1) Mutual Benefits: Our connectors are with high quality and competitive in price.
2) Customize: We can make the product as per your special request, Shape and Quality can meet your request.
3) OEM: Design your packing box(≥1000PCS per model).
4) Mix Order: We accept mix order, different model and small quantity order.
5) high quality: Our products have passed UL,CUL,CCC,CE and ROHS certification.

Using PBT material that import from abroad, carrying stable,compression, anti-explosion and anti-deformation quality; Using Zinc alloy material against high frequency noise and electromagnetic interference Use gold-plated contact with high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.

Q4: Can I order one piece for sample testing usage?
A4: Yes, we recommend you to check the sample before order. Please order the sample from us directly.

Q5: May I have your catalogue and price list for trial order in MOQ quantity?
A5: All our products were shown on alibaba, please have a detailed looking and choose the interested models from our site, sending us inquiry directly, we'll quote you accordingly right away.

Q6: Is there cheap shipping cost to import to our country?
A6: For small order, express will be best. As for bulk order,sea ship way is best but takes much time.
For urgent orders, we suggest via air to airport plus our ship partner send to your door.

Q7:Can we get support if we have our own market position?
A7: Pls inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
