| Categories | C Frame Motors |
|---|---|
| Brand Name: | MH motors |
| Model Number: | MH6029-29398 |
| Certification: | ETL/CE/CCC |
| Place of Origin: | China |
| MOQ: | 480PCS |
| Price: | Negotiable(EXW) |
| Payment Terms: | T/T |
| Supply Ability: | 2000PCS/day |
| Delivery Time: | 30 work days |
| Packaging Details: | Standard exporting carton package, ship by sea or airfreight |
| product name: | 80W 0.74A 2.38" C Frame Motor Shade pole |
| MH MODEL: | MH6029-29398 |
| Rated Voltage/Frequency: | 230V50/60Hz |
| Current（A): | 0.74 |
| Input Power（W）: | 80 |
| Output Speed（RPM): | 3000 |
| Hi-Pot TEST: | 1800vac50hz,3Ma,1s |
| Bearing Type: | sleeve Bearing |
| Insulation Class: | H |
| Agency: | ETL/CE/CCC |
| Application: | pellet fireplace, electric heater |
| Protect Method: | TP |
| High Light: | China 80W 0.74A, 2.38" C Frame Motor, AC Single Phase Shade Pole |
| Company Info. |
| Shanghai MH Electric Co., Ltd. |
| View Contact Details |
| Product List |

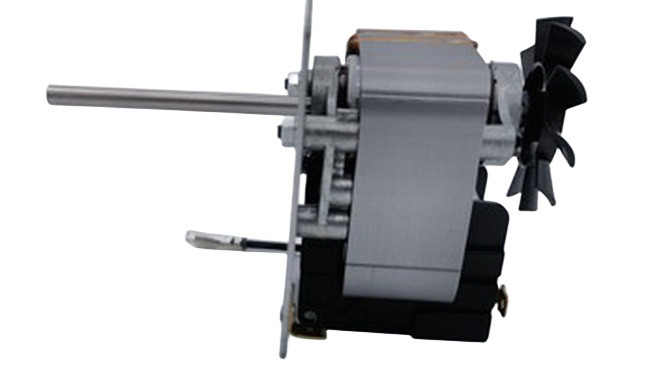

China 80W 0.74A 2.38" C Frame Motor AC Single Phase Shade Pole for Pump
This motor is specifically designed for pump applications and operates on a single-phase AC power supply. With a power input of 80W and a current rating of 0.74A, it provides efficient and reliable performance which further enhances its functionality, allowing for smooth operation and reduced vibrations.
Specification:
| Stack Length (L) (mm/inch) | Voltage (V) | Frequency (Hz) | Speed(RPM) | Max Torque(Oz.in) | Max HP Output |
| 21.88(7/8) | 110-120V/220-240V | 50/60 | 3000 | 7.5 | 1/45 |
| 25.40(1) | 3000 | 9.3 | 1/40 | ||
| 28.123(1 1/8) | 3000 | 11.2 | 1/30 | ||
| 34.93(1 3/8) | 3000 | 16 | 1/25 | ||
| 38.10(1 1/2) | 3000 | 18.5 | 1/18 | ||
| 50.80(2) | 3000 | 24.8 | 1/13 |
Note: Listed are representative only for reference, can be customized according to customer requirements

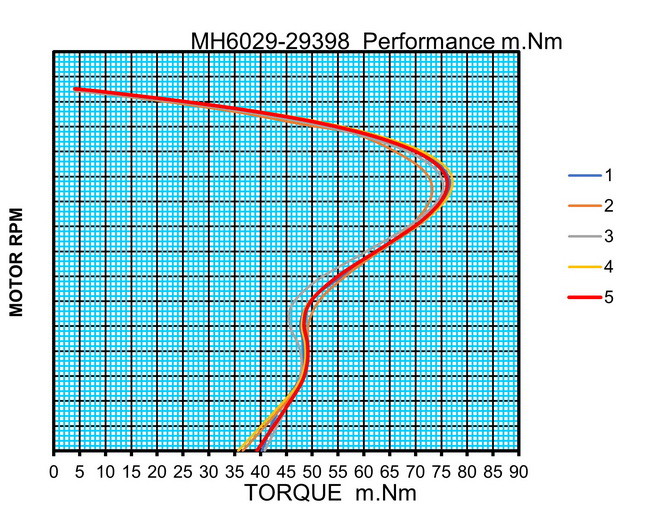

Performance Curve:
Production Feature :
1. 2.38" C-FRAME MOTOR
2. Heavy-duty steel and die-cast construction
3. Several shaft size options
4. Several mounting options available
5. Several lead configurations available
6. Ball bearing or Sleeve bearing available
Prodcution Package :
Our technicians will design the most suitable motor packaging solution according to different motor structures, the length of the shaft, and the specific assembly and circulation requirements of customers, to meet the final use requirements of customers.
Main Appilication:

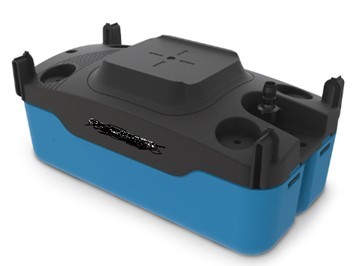

1. Air conditioning condensate pump
2. Specialized motor for landscape water pumps
Welcome your business chat and visit. Shanghai MH Electric Co.,Ltd has several years of experience engineering and manufacturing C-frame motors and blowers.Our Team members have more than 18 years of rich experience in the motor field. MH can provide the most cost-effective C-frame motor and air moving solutions for customers.
Thank you very much for viewing this page
Sincerely looking forward to our cooperation!
|
