| Categories | 2D Coordinate Measuring Machine |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | WM-3D |
| Model Number: | VMS-4030F |
| Certification: | iso9001 |
| Packaging Details: | Image Measuring Instrument With Non-contact Optical Height Measuring System Export wooden box packaging Wooden case:1250*1050*1550mm |
| Price: | $5,100.00/sets 1-4 sets |
| Warranty: | 1 year, One year |
| Customized support: | OEM, ODM |
| Power: | Electronic, 220V /50HZ |

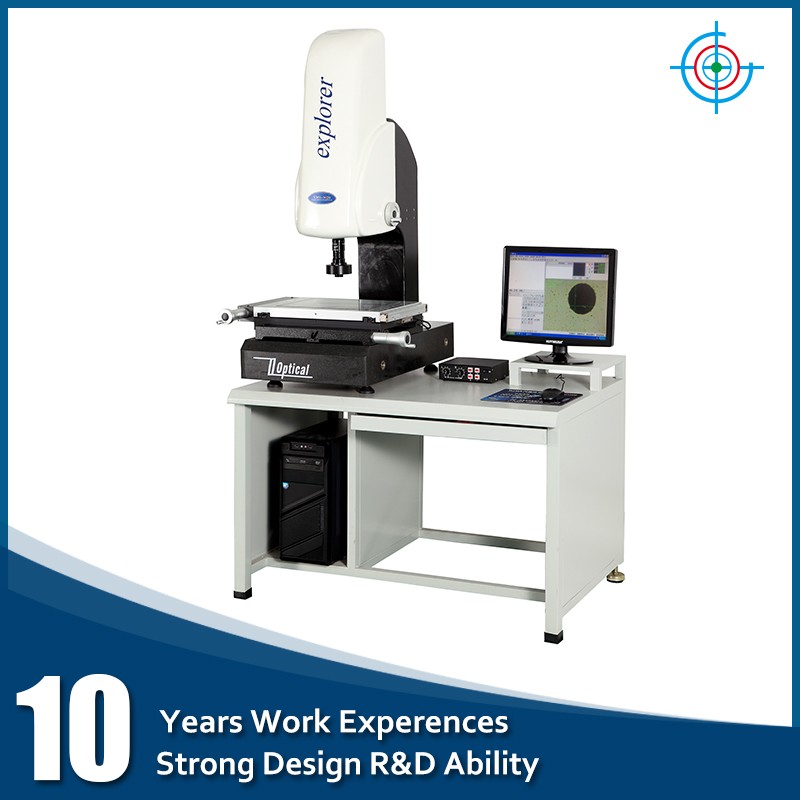

| Name: | Image Measuring Instrument-Non-contact Optical Height Measuring System |
| Accuracy: | 3um |
| General use: | Electrics,plastics,mold,machinery,connectors and mobile |
| Function: | Measuring and detect |
| Weight: | 300KG |
| Velocity: | Hand control |
| Color: | White |
| Product name: | Image Measuring Instrument-Non-contact Optical Height Measuring System |
| Company Info. |
| Dongguan Wang Min Optical Instrument Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Mainly for metallograhpic measurement & analysis!These "Universal"
models combine a measuring stand with the best of metallurgical
microscope components for high resolution imaging and critical
measurements. Featuring the full range of advanced infinity
objectives and microscopy techniques including:
brightfield,darkfield, DIC contrast, polarizing and
epifluorescence.Up to five objectives may bemounted on the
nosepiece.With more usages if upgraded.Model | VMS-2010F | VMS-3020F | VMS-4030F | VMS-5040F | |
Worktable | Metal table’s size(mm) | 350*220 | 450*350 | 550*450 | 700*600 |
Glass table’s size(mm) | 230*130 | 330*230 | 430*330 | 530*430 | |
Three axis travel Travel(mm) | 200*100 | 300*200 | 400*300 | 500*400 | |
Weight(kg) | 170 | 260 | 300 | 500 | |
Dimension(L)*(W)*(H) | 500*700*1100 | 600*750*1100 | 700*900*1150 | 850*1050*1200 | |
Measuring System (Standard Accessories) | Camera :SONY1 / 3" Color CCD Camera | ||||
Lens magnification :0.7~4.5X WD:95mm | |||||
Total magnification:30~230X Object view:7~1.1mm | |||||
Double Cross Line Generator Data Resolution:0.001mm | |||||
Z-axis lifting travel (mm):150mm (AUTO FOCUS) The indication error of X,Y-axis ≤(3+L/200)µm (L be regarded as measured length, units: mm) | |||||
Lighting: Surface light and transmission light are used LED, brightness adjustable Power:220/110V(AC),50HZ 30W | |||||
12 months warranty. Buy with confidence!
1. Within 12 months from the date of assemble and acceptance, but not exceeding 15 months from the date if shipment.
2. During this period, we will take phone and internet teaching to
users with a combinative after-sale advisory service.
3. We provide life warranty services of machine for users with
cost.
01. If machine failure caused by our side, you can send back the
spare parts to us and the cost by our side.
02. But if needs our technician come to customer side for training,
technical service is free,except ticket and accommodation.
4. Extra warranty period: We will provide to user after-sale long-life advisory service.
|
