| Categories | Optical Profile Projector |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | WM-3D |
| Model Number: | CNC-3020AH |
| Certification: | ISO9001 |
| Packaging Details: | R&D in ChinaHigh-volume workpiece measurer for machinery industry video measuring machine optical machinery optical instruments CNC-3020WM Image Test Machine Wooden case size:1250*1350*2150mm |
| Price: | $18,000.00/sets 1-4 sets |
| Warranty: | 3 years |
| Customized support: | OEM, ODM |

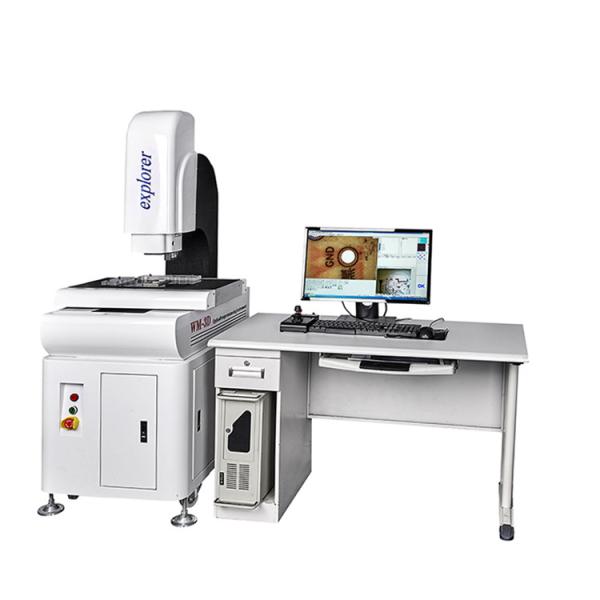

| Name: | CNC Optical Measuring System Price |
| Accuracy: | 3um |
| Velocity: | 200mm/s |
| Function: | Measuring and detect |
| General use: | Electrics,plastics,mold,machinery,connectors and mobile |
| Color: | White |
| Power: | 220V /50HZ |
| Product name: | CNC Optical Measuring System Price |
| Company Info. |
| Dongguan Wang Min Optical Instrument Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Model | CNC-3020 | ||||
Glass table Size | 330*230 | ||||
Metal table Size | 350*250 | ||||
Working travel X.Y | 300*200 | ||||
Z-axis travel lift(mm) | 200 focus | ||||
X.Y.Z-axis digital display resolution | 0.5um | ||||
X.Y axis value error | ≤(3+L/200)L is the measured length,unit mm) | ||||
Weight(kg) | 720 | ||||
Dimession | 700*900*1650 | ||||
Motor | Three axis velocity | 100mm/s | |||
Three axis positioning accuracy | 0.001mm | ||||
Image system | Camare | Sony color 1/3″CCD camera | |||
Zoom | coaxial optical zoom lens with a zoom lens (2 select one) | ||||
Zoom magnification | 0.7-4.5X | ||||
Video total magnification | 30-230X | ||||
Objector field | 11.1-1.7mm | ||||
Power | AC220V/AC110V | ||||
Power consumption | 100W | ||||
Insreument accessories | 1Xtube(option) | 0.5Xtube(option) | Working distance | ||
Zoom lens | 0.7-4.5X | 0.7-4.5X | |||
Add lens | Video magnification | Material side field(mm) | Video magnification | Material side field(mm) | |
0.5X option | 11.8X-74X | 22-3.4 | 5.9X-37X | 44-6.8 | 175 |
Standard | 23.5X-148X | 11.1-1.7X | 11.8X-74X | 22-3.4 | 92 |
2Xoption | 47X-296X | 5.5-0.9 | 23.5X-148X | 11.1-1.7 | 36 |
Mainly for metallograhpic measurement & analysis!These "Universal"
models combine a measuring stand with the best of metallurgical
microscope components for high resolution imaging and critical
measurements. Featuring the full range of advanced infinity
objectives and microscopy techniques including:
brightfield,darkfield, DIC contrast, polarizing and
epifluorescence.Up to five objectives may bemounted on the
nosepiece.With more usages if upgraded.
|
