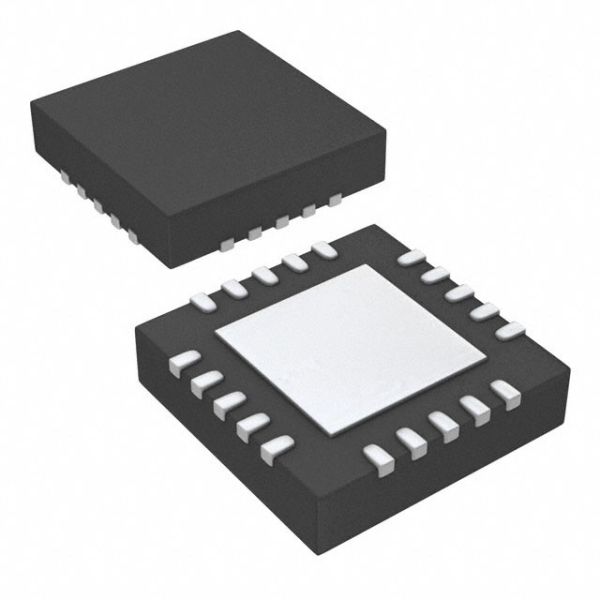

CC2500RGPR Wireless Power RF Integrated Circuits RF Transceiver Low-Power 2.4 GHz RF Transceiver

Applications

 2400-2483.5 MHz ISM/SRD band systems

 Consumer electronics

 Wireless game controllers

Key Features RF Performance

 High sensitivity (–104 dBm at 2.4 kBaud, 1% packet error rate)

 Low current consumption (13.3 mA in RX, 250 kBaud, input well above sensitivity limit)

 Programmable output power up to +1 dBm

 Excellent receiver selectivity and blocking

 Wireless audio
 Wireless keyboard and mouse  RF enabled remote controls

Product Description

The CC2500 is a low-cost 2.4 GHz transceiver designed for very low-power wireless appli- cations. The circuit is intended for the 2400- 2483.5 MHz ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency band.

The RF transceiver is integrated with a highly configurable baseband modem. The modem supports various modulation formats and has a configurable data rate up to 500 kBaud.

CC2500 provides extensive hardware support for packet handling, data buffering, burst transmissions, clear channel assessment, link quality indication, and wake-on-radio.

The main operating parameters and the 64- byte transmit/receive FIFOs of CC2500 can be controlled via an SPI interface. In a typical system, the CC2500 will be used together with a microcontroller and a few additional passive components.
