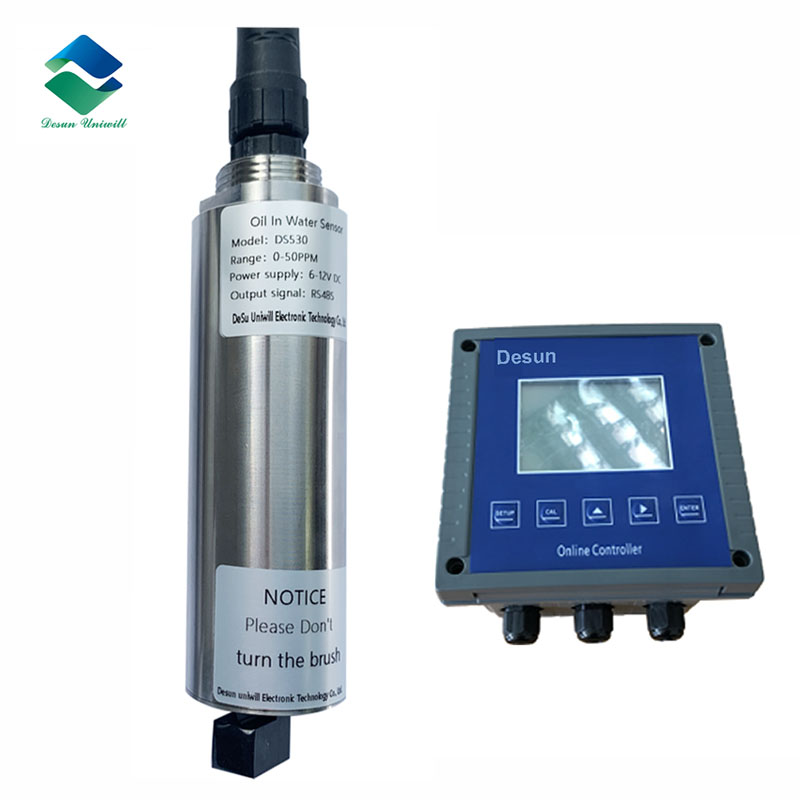

Factory Price Oil in Water Analyzer DS530 Oil in Water Sensor Probe

Features:

-Digital sensor, RS-485 output, support MODBUS.
-With an automatic cleaning brush to eliminate the impact of oil on the measurement.
-Unaffected by suspended solids in water.
-Eliminate the effects of ambient light on measurements with unique optical and electronic filtering techniques.

Technical parameters

Product	Oil in water sensor
Model Number	DS530
Max. working pressure	1 bar
Principle	Ultraviolet fluorescence method
Response Time	＜5 sec
Measuring Range	0-50ppm/0-200ppm or 0-0.40FLU
Precision	3%
Resolution	0.01ppm
Temp range	0-50℃
Linearity	R2>0.999
Protection level	Ip68
Output signal	Support RS-485, MODBUS protocol
Assembly	Input type, thread
Power information	DC 6~12V, current <50mA (when not cleaned)
Cable length	5 meters (default), can be customized
Housing material	SS316 (customizable titanium alloy)
Self-cleaning Brush	Have
Optical window	Have

Cases:

Sensor maintenance

1) Sensor outer surface: Wash the outer surface of the sensor with tap water. If there is still debris, wipe it with a damp soft cloth. For some stubborn dirt, you can add some household washing liquid to the tap water to clean it.

2) Measuring the outer surface of the window: use tap water to clean the outer surface of the sensor. For some stubborn dirt, you can use traditional detergent and a soft cloth to clean it.

3) Check the cable of the sensor: the cable should not be tightened during normal operation, otherwise the internal wires of the cable will be easily broken, causing the sensor to not work normally.

Xi'an Desun Uniwill Electronic Technology Co., Ltd.is located in Xi'an High-tech Development Zone. It is a high-tech company integrating production, research and development, sales and engineering services. Relying on Xi'an's rich high-tech resources, we carry out technical cooperation with many universities and scientific research institutions, constantly break through technical barriers, improve product performance, and provide high-quality products for the water quality monitoring industry with leading technology. We have launched a wireless water quality monitoring solution based on the current rapidly developing Internet of Things technology, which combines smart terminals and traditional display units through wireless transmission to realize real-time and dynamic water quality monitoring functions such as data cloud display, remote cloud control, and upper and lower limit alarms.

Desun Uniwill Electronics has won unanimous praise from domestic and foreign customers for its high-quality and sincere professional pre-sale, in-sale and after-sale services. On the basis of continuous optimization of innovative products, we will strictly control quality, strictly abide by industry standards, and work with partners to protect green mountains, green waters, and blue sky with high-quality products.
