RS422 Two Axis IR Electro Optical Sensor System For Unmanned Ship

Categories Electro Optical Sensor System
Brand Name: JOHO
Model Number: JHS209-S05-100
Certification: ISO9001
Place of Origin: China
MOQ: 1 set
Price: negotiation
Payment Terms: T/T, L/C,, Western Union, MoneyGram
Supply Ability: 50Sets/Year
Delivery Time: negotiation
Packaging Details: Standard Safety Equipment Case
Gyro Stabilised Gimbal: 2 Axis
Sensor: HD CCD and IR Thermal Imager
Application: Unmanned Ship, Unmanned Vehicle, Usv, Uav
Pixel: 1920x1080
Color: White & black
Stabilization accuracy: ≤0.5mrad
Communication: RS422
Uncooled Thermal Camera FOV: 24.55°×19.75°~8.3°×6.64°
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

RS422 Two Axis IR Electro Optical Sensor System For Unmanned Ship

JHS209-S05-100 2 Axis Infrared Optical Sensor System Pixel 1920x1080

First choice for small and medium-sized unmanned ships


Technical Specification


System parameters
Rotation rangeAzimuth: N×360°
Elevation: -90°~+60°(horizontal forward is 0°)
Rotational angular velocityAzimuth: ≥100°/s Elevation: ≥60°/s
Max rotating acceleration≥120°/ s2
Static pointing accuracy of system

Azimuth: <0.1mrad

Elevation: <0.1mrad

External interfacePower: DC 12V~36V
Average power consumption: ≤200W
Peak power consumption: ≤250W
Control, video and image data transmission: 2-way Gigabit Ethernet
Communication: RS422
Local Data Read Interface: USB3.0
Physical parametersDimension(L×W×H): 280mm×280mm×460mm
Weight: ≤20kg
Appearance: Navy Grey
Uncooled Thermal Camera
DetectorUncooled Focal Plane
Working band8μm~12μm
Pixel640×512
Pixel size17μm
Focal Length25mm~75mm
F#1~1.2
FOV24.55°×19.75°~8.3°×6.64°
Frame rate25fps
Auto focusing time≤3s
NETD≤50mk
PowerDC 12V
Video outputanalog video output, PAL format
CommunicationRS232
Daylight Camera
Sensor1/2’’ CMOS
Resolution1920×1080
FOV35.49°×26.99°~1.59°×1. 2°
Focal length10mm~230mm
Optical zoom23×
Frame rate30fps
VideoHD-SDI interface
CommunicationRS485
PowerDC12V
Laser Range Finder
Wavelength1.06μm
Collimation angle≤1.0mrad
Range5m~2.5km(visibility 23km, for 2.3m×2.3m vehicle target)
Ranging accuracy≤±2m
Accuracy rate0.5Hz~10Hz
Luminous exitance≤1.25×1.0mrad
PowerDC12V
CommunicationRS422
Video tracker
Tracking window positionautomatically follow the target to any position in the field of view
Target selection methodsupport automatic and manual locking
Target tracking sceneselect different target tracking scene strategies according to practical applications
Minimum target size3 × 3 pixels
Minimum signal-to-noise ratio4
Tracking speed≥ 34 pixels between frames
Minimum target contrast30%
Update frequency of target deviation50Hz
Environmental Test
Vibration testTest standard:GJB 150.16A-2009 A.2.3.11 category 21—ship-warship
High temperature testTest standard: GJB 150.3A-2009
Test temperature:+60℃(operation)
Test temperature:+70℃(storage)
Low temperature testTest standard: GJB 150.4A-2009
Test temperature:-40℃(operation)
Test temperature:-50℃(storage)
Rain testTest procedure: meet the requirements of GB 4208-2008 IP67 waterproof rating, that is, dust seal against violent water spray

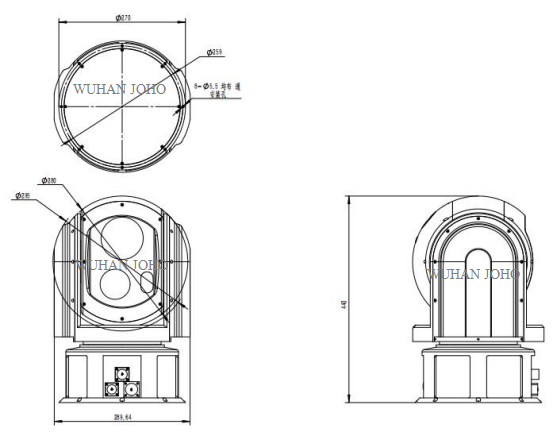

Drawing
