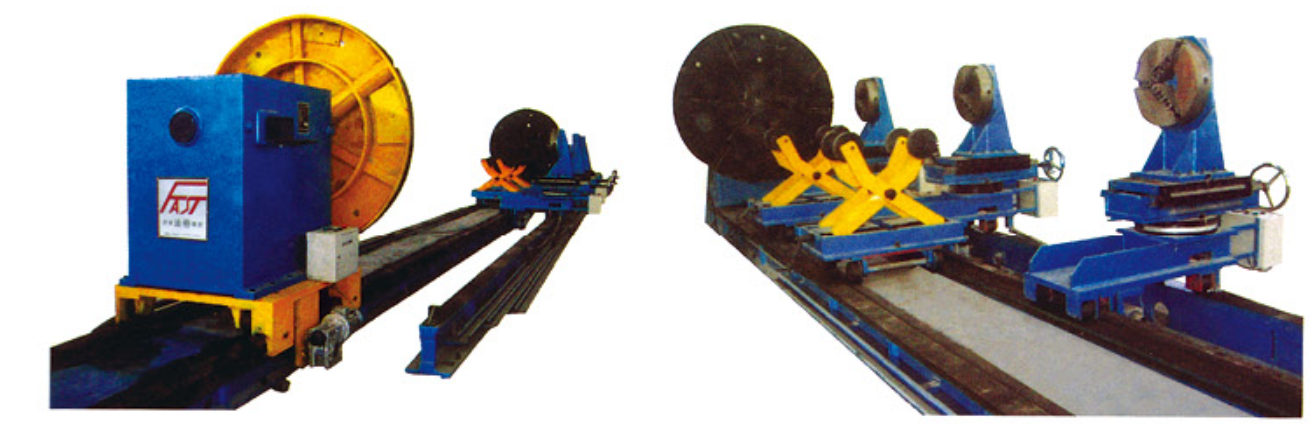

CNC Steel Pipe/Connection Boards/Flanges Welding Machine
APPLICATION
The machine is used for positioning, assembling & welding between
steel pipes and flanges, and between branch pipes and branch
flanges.
COMPOSITION
The machine is composed of main and idle chuck, branch pipe
assembly unit and support unit.
FEATURES
● The movement of main and vice-working table, rotation of main and
vice-chuck all adopt motor driving , with CNC technology.
● Assembly units are driven by motors, with CNC display.
● The positioning of branch pipe adopts motor driving, with CNC
display
● Easy operation, accurate positioning, high working-efficiency,
small working area, short loading time.
TECHNICAL DATA
| Model | ZH1013 | ZH1313 | ZH1613 |
| Size of Main Working Table (mm) | 6500×800×250 | 16500×1025×320 | |
| Flange Diameter of Main & Idle Clamping Chuck (mm) | Φ250~Φ1000 | Φ250~Φ1300 | Φ250~Φ1600 |
| Center Height of Chuck (mm) | 800 | 1200 | |
| Size of vice-Working Table (mm) | 14000×200×250 | 14000×200×320 | |
| Length of Steel pipe (m) | 13 | 13 | |
| Size of Fixed Flange on The Vice-working Table (mm) | Φ150～Φ500 | Φ150～Φ500 | |
| Rotary Angle on Vice-working Table(°) | 800 | 1200 | |
| Movement Speed of Main & Vice-working Table (m/min) | ±90° | ±90° | |
| Total Power of Motor (kW) | 4 | 4 | |
★ All of these models can be customized according to customer
requirements.
DETAIL IMAGES
WHY CHOOSE US

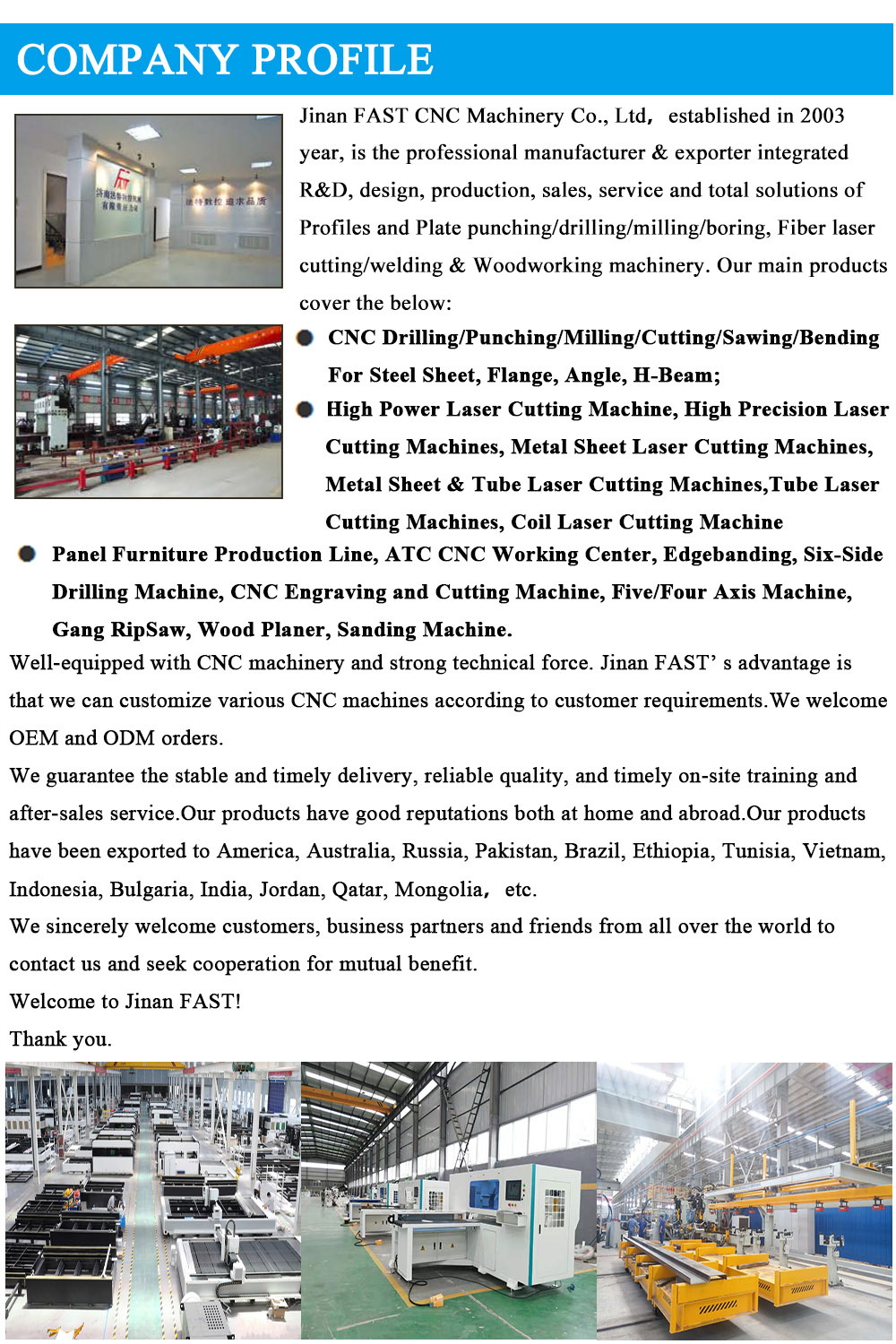

COMPANY PROFILE
