Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces.

Categories CNC Drilling Machine
Brand Name: FAST
Certification: ISO9001
Place of Origin: China
MOQ: 1 set
Payment Terms: L/C, T/T,
Supply Ability: 300sets/year
Delivery Time: 40~60 days
Packaging Details: Film;plywood wooden cases
Model Number: HZ900
Price: USD 10000~20000/set
Condition: New
CNC or Not: CNC
Voltage: 380V
Min. Order: 1 Set
Port: Qingdao Port
Max. Drilling Diameter (mm): φ30
Morse Taper: Morse #3
Infeeding Length(mm): 320
Rotation Speed of Spindle (rpm): 100~760
Processing Position Accuracy: Circular Direction: ±30
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

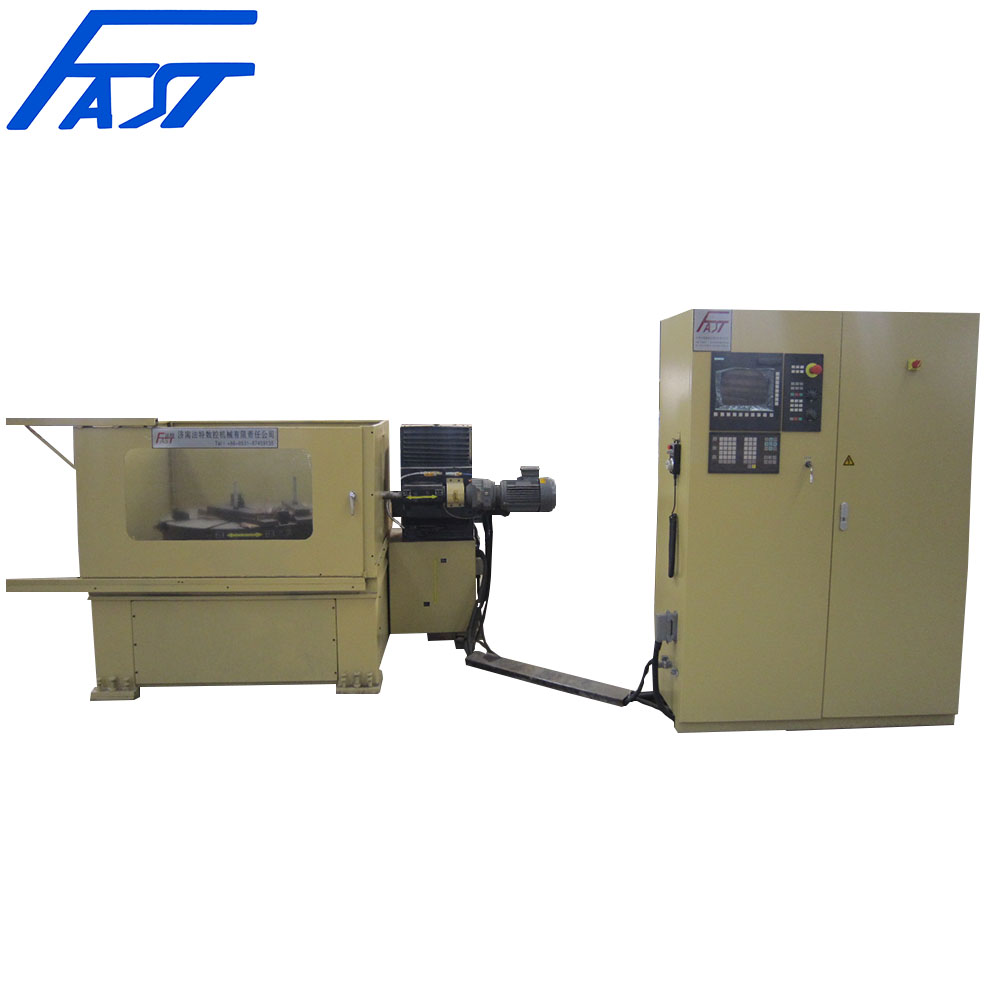

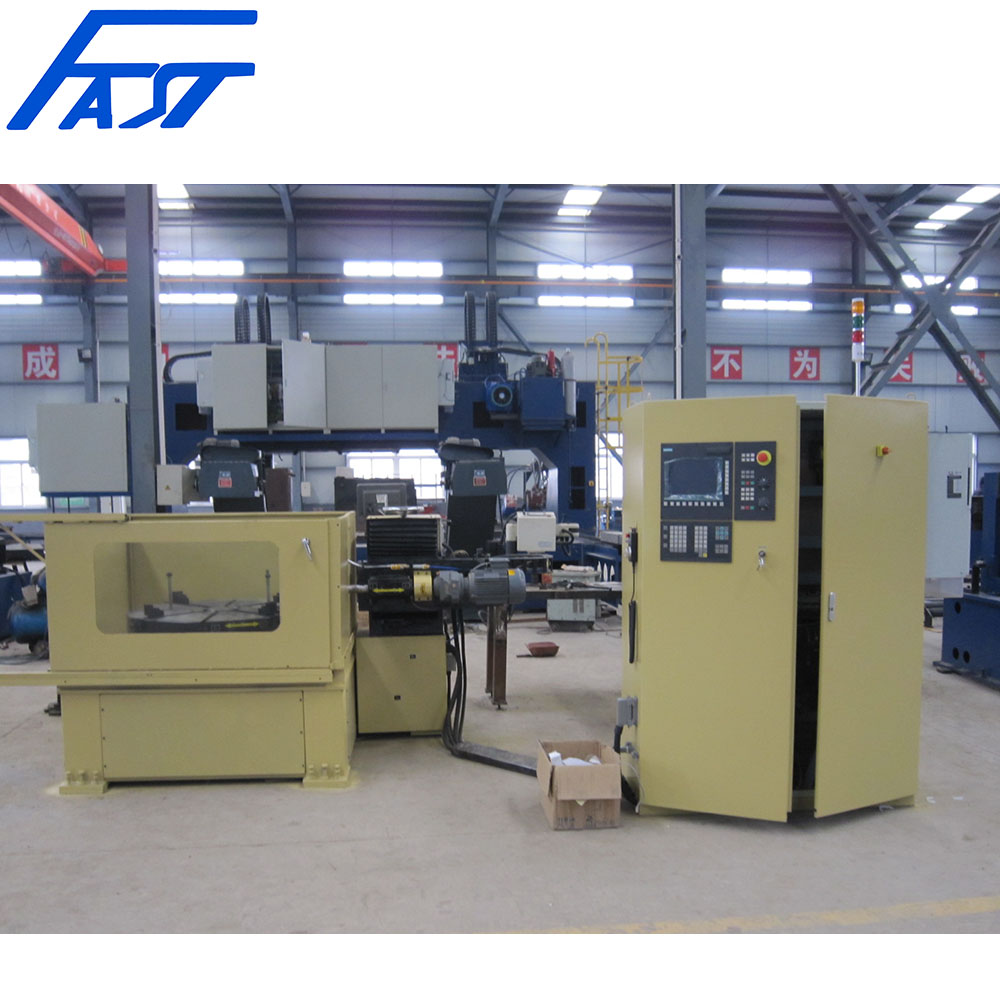

Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces.

Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces

APPLICATION
The machine is used for drilling on ring workpieces.

FEATURES

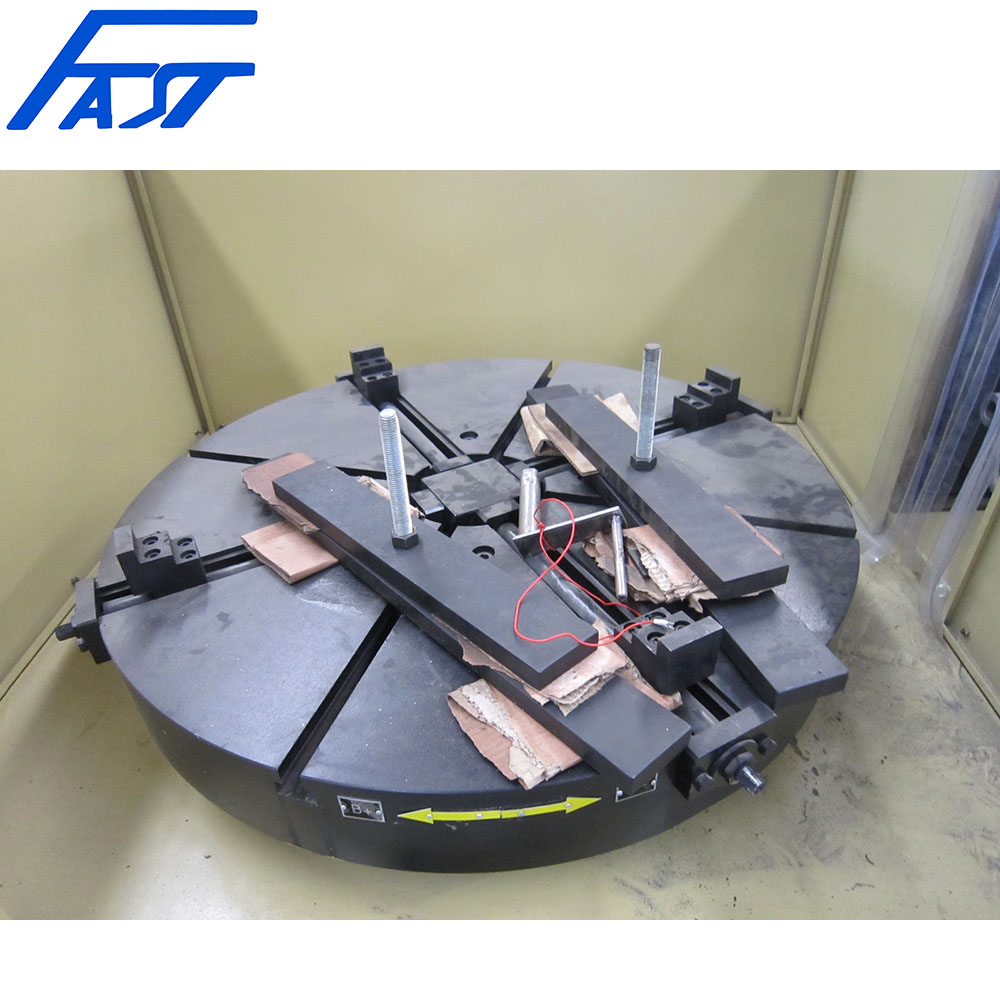

  • This machine has central chucks on work table in horizon position. The chuck has four claws fixed manually.
  • Servomotor.
  • CNC controlling system.
  • Cooling liquid automatic circulation.
  • Only inputting the dimension of the workpiece. It can be used repeatedly.


TECHNICAL DATA

ModelHZ900


Workpiece Dimension (mm)

Inner Diameter: φ280~φ880
Outer Diameter: φ300~φ900
Height: ≤400
Max. Drilling Diameter (mm)φ30
Morse TaperMorse #3
Infeeding Length(mm)320
Rotation Speed of Spindle (rpm)100~760
Drilling Speed (mm/min)30~160
Frequency Converter Stepless Speed Adjustable.
Spindle Power (kW)3
Infeeding Servo Motor Power (kW)1.5
Rotation Servo Motor Power (kW)1.5
Processing Position AccuracyCircular Direction: ±30


All of these models can be customized according to customer requirements.
