| Categories | TFT LCD Panel |
|---|---|
| Brand Name: | LG DISPLAY |
| Model Number: | LM215WF4-TLG1 |
| Certification: | ISO9001 |
| Place of Origin: | JAPAN |
| MOQ: | 1PCS |
| Payment Terms: | TT/PAYPAL/ESCROW/WESTERN UNION |
| Supply Ability: | 1000PCS |
| Delivery Time: | 1-2 DAYS |
| Packaging Details: | STANDARD PACKING |

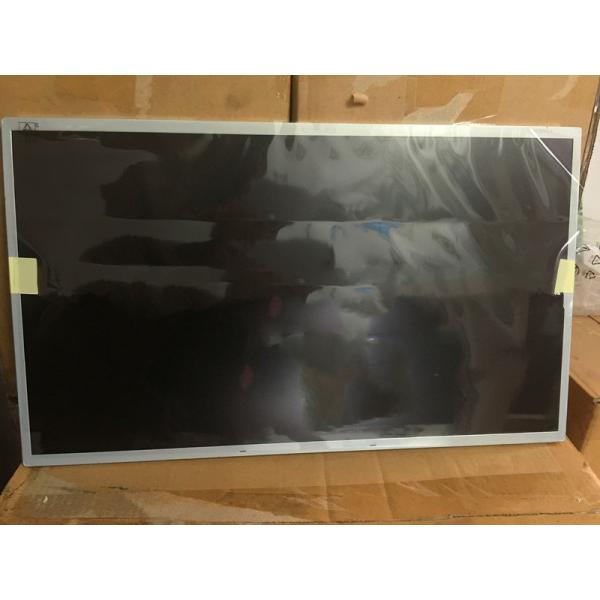

| MODEL NUMBER: | LM215WF4-TLG1 |
| BRAND: | LG DISPLAY |
| SIZE: | 21.5 inch |
| BRIGHTNESS: | 250CD/M2 |
| Lamp Type: | WLED |
| RESOLUTION: | 1920(RGB)×1080, FHD, 102PPI |
| VIEWING ANGLEG: | 85/85/75/85 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Company Info. |
| Sapientia Display Co.,LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LM215WF4-TLG1 | a-Si TFT-LCD , LCM | LM215WF4 (TL)(G1) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Screen Size : | 21.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.08265×0.24795 mm | 0.24795×0.24795 mm [102PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 476.064×267.786 mm | 479.8×271.3 mm | 495.6×292.2 mm | 8.6/10.7 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | Normal bezel | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 1.72/1.81Kgs (Typ./Max.) | - | Antiglare, Hard coating (3H) | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 250 cd/m² (Typ.) | TN, Normally White, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 85/85/75/85 (Typ.)(CR≥10) | 1.3/3.7 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6647K | 16.7M (6-bit + Hi-FRC) | X:0.310; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 72% | 97% | 75% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.33 (Max.)(9 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Right side) | 30K(Min.) | 14S2P | 2 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 44.1±2.8V | 120/125mA (Typ./Max.) | 10.6/11.3W (Typ./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | |||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | SM06B-SHJH(HF) | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CNAANC | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 0.91/1.14A (Typ./Max.) | 4.53W (Typ.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (2 ch, 8-bit) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| LS Mtron | GT103-30S-HF15-E2500 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160C | |
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 14 pcs / box | - | 355×305×550 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
|
