VEIKONG Variable Frequency Inverters Suitable for Various Applications with Unique Features

VEIKONG Variable Frequency Inverters Suitable for Various Applications with Unique Features

VEIKONG Variable Frequency Inverters Suitable for Various Applications with Unique Features
VEIKONG Variable Frequency Inverters Suitable for Various Applications with Unique Features
Categories Variable Frequency Inverters
Brand Name: VEIKONG
Model Number: VFD500
Certification: CE
Place of Origin: China
MOQ: 1
Price: Negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15000pcs per Month
Delivery Time: 3 days, depend on the order quantity
Packaging Details: the power less than 45kw use Carton, starting from 45kw use Wooden case
Product Name: converter
Power: 0.75kw-710kw
Communication: modbus485/profinet/canopen
Application: general application
Keypad: LCD+LED
Warranty: 18 monthes
Brand: VEIKONG
Color: Dark blue
Control mode: SVC VF and VC
Motor control mode: Speed control and Torque control
Energy saving function: Support
Contact Now
Company Info.
Shenzhen Veikong Electric Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

VEIKONG Variable Frequency Inverters Suitable for Various Applications with Unique Features

Variable Frequency Drive Converter 0.75kw 1.5kw 2.2kw 4kw 5.5kw Vfd Inverters
VEIKONG hot selling VFD
VFD500M is high performance vector control mini vfd
VFD500 is high performacne general vfd
VFD550 is high perfromance special vfd with positional control.
VFD530 is high performance special vfd with lifting function, support 2 PID, support Synchronous and asynchronous motors
VFD500-PV is solar pump inverter.
VFD510 is IP65 inverter
Performance features
  • Advanced motor control algorithm
  • High performance open loop vector control
  • Optimal V/F,and vector control mode
  • Excellent ramp slope control
  • Fast autotune (less than one minute)
  • Overload: 150% rated output current, one minute

Hardware features

  • Dual CPU processing, more precise control
  • Using the latest generation IGBT
  • 0.4k~22kW with standard inner brake unit
  • Inner EMC C3 filter with breakpoint design, convenient for access and disconnection, meet different
  • PCBA coating process, increase environment adaptability
  • Unique control terminals: simple electronic switch set to complete the conversion between source and sink of I/O terminals
  • Reference (current) loose, trip or not could be selected
  • IGBT thermal design
  • Wireless fan block design, easy to replace or maintain
  • Connecting auxiliary fan makes the drive suitable for worse environment

Advantages:

1, With inside EMC C3 filter and building-block design for IO extension card and different kinds of PG card
2, Top performance in our industry which represent in torque in less than 1hz 0.5hz 0.25hz 0.1hz and 0hz
it can compare with any domestic chinese brand for output torque.
3, Smooth running and stability, support optional LCD keypad and dual display keypad.
support PC tools. support modbus485, canopen, profinet communciation.
4, Low noise on motor and fast response for 0.1S acceleration and deceleration without dead zone
5, Reverse and forward free switching
6, Sleeping function and energy saving function as well as in built PLC programming
7, Tension control and torque mode control
8, Support two group motor parameters which can realize two motor switching control

Techincal Parameters:


ItemSpecifiation
InputInuput Voltage

1phase/3phase 220V:200V～240V

3 phase 380V-480V:380V～480V

Allowed Voltage fluctuation range-15%～10%
Input frequency50Hz / 60Hz,fluctuation less than 5%
OutputOutput Voltage3phase:0～input voltage
Overload capacity

General purpose application:60S for 150% of the rated current

Light load application:60S for 120% of the rated current

ControlControl mode

V/f control

Sensorless flux vector control without PG card(SVC)

Sensor speed flux vector control with PG card (VC)

Operating modeSpeed control,Torque control(SVC and VC)
Speed range

1:100 (V/f)

1:200( SVC)

1:1000 (VC)

Speed control accuracy

±0.5% (V/f)

±0.2% (SVC)

±0.02% (VC)

Speed response

5Hz(V/f)

20Hz(SVC)

50Hz(VC)

frequency range

0.00～600.00Hz(V/f)

0.00～200.00Hz(SVC)

0.00～400.00Hz(VC)

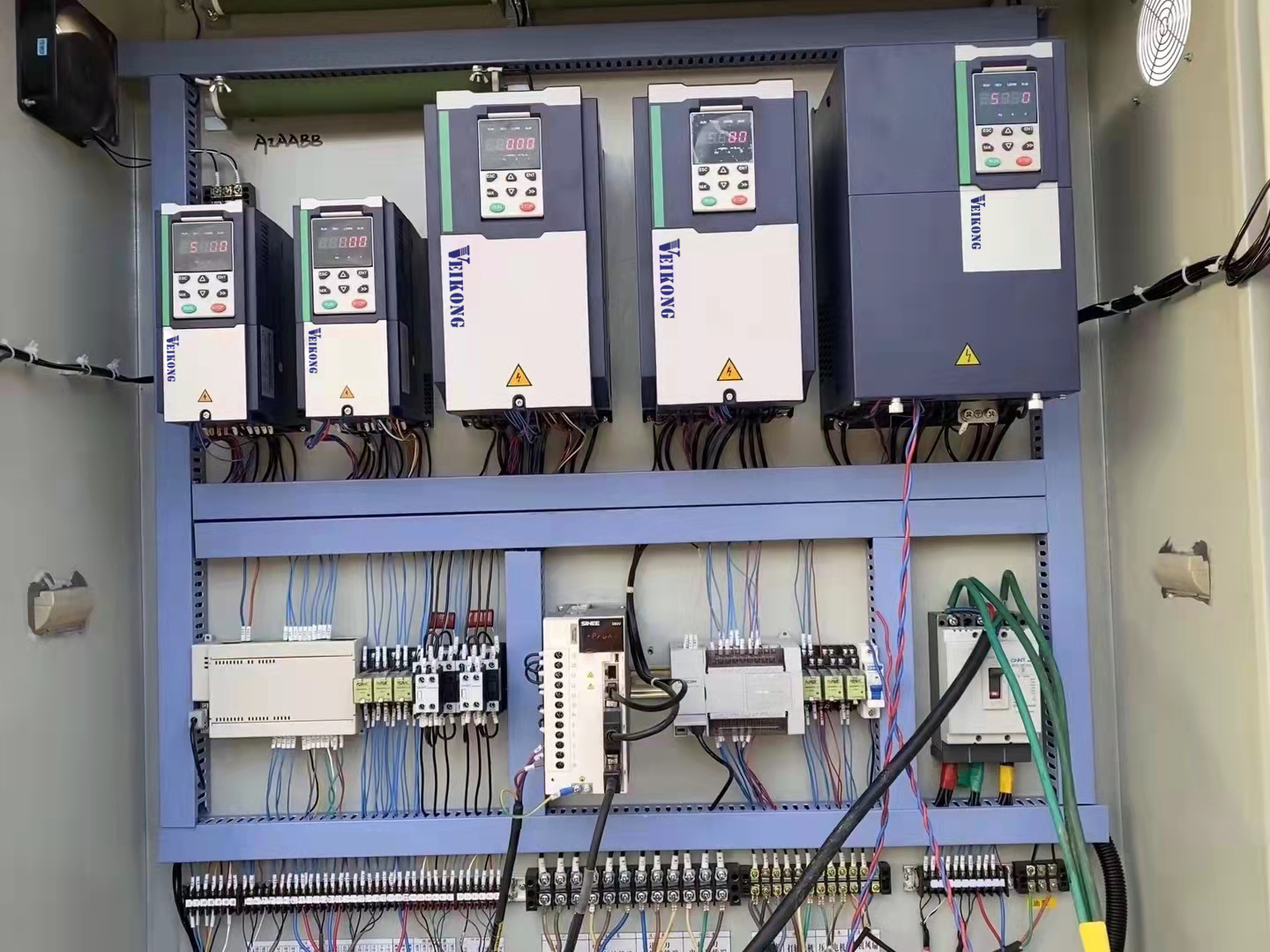

VEIKONG VFD application:

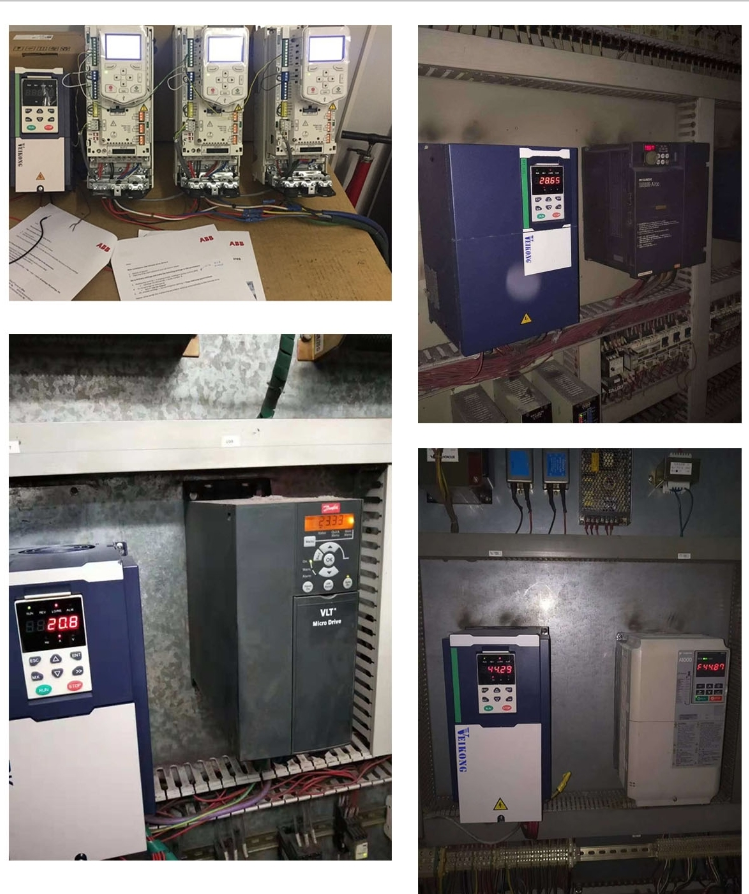

VEIKONG VFD replace famous brands


Mode Range

Model

Power capacity

(KVA)

Input current

(A)

Output current(A)

Adaptable Motor

(KW)

SIZEBrake Unit
Heavy loadLight load
Three phase: 380-480V,50/60Hz
VFD500-R75GT4B1.53.42.54.20.75SIZE AInternal
VFD500-1R5GT4B354.25.61.5
VFD500-2R2GT4B45.85.69.42.2
VFD500-4R0G/5R5PT4B5.910.59.413.03.7
VFD500-5R5G/7R5PT4B8.914.613.017.05.5SIZE B
VFD500-7R5G/011PT4B1120.517.023.07.5
VFD500-011G/015PT4B1726.025.031.011SIZE CInternal
VFD500-015G/018PT4B2135.032.037.015
VFD500-018G/022PT4B2438.537.045.018.5SIZE D
VFD500-022G/030PT4B3046.545.057.022
VFD500-030G/037PT44062.060.075.030SIZE Eoption
VFD500-037G/045PT45076.075.087.037
VFD500-045G/055PT46092.090.0110.045SIZE F
VFD500-055G/075PT475113.0110.0135.055
VFD500-075G/090PT4104157.0152.0165.075SIZE G
VFD500-090G/110PT4112170.0176.0210.090External
VFD500-110G/132PT4145220.0210.0253.0110SIZE H
VFD500-132G/160PT4170258.0253.0304.0132SIZE I
VFD500-160G/185PT4210320.0304.0360.0160
VFD500-185G/200PT4245372.0360.0380.0185SIZE J
VFD500-200G/220PT4250380.0380.0426.0200
VFD500-220G/250PT4280425.0426.0465.0220SIZE K
VFD500-250G/280PT4315479.0465.0520.0250
VFD500-280G/315PT4350532.0520.0585.0280SIZE L
VFD500-315G/355PT4385585.0585.0650.0315
VFD500-355G/400PT4420638.0650.0725.0355SIZE M
VFD500-400G/450PT4470714.0725.0820.0400
VFD500-450G/500PT4530800.0820.0/450SIZE N
VFD500-500G/560PT4580880.0900.0/500
VFD500-560G/630PT4630950.0980.0/560SIZE O
VFD500-630GT471010801120./630SIZE O
VFD500-710GT479012001260/710SIZE O
Single phase :220V ,50/60HZ
VFD500-R40GS21.36.03.25.60.4SIZE AInbuilt
VFD500-R75GS22.411.05.68.00.75SIZE A
VFD500-1R5GS23.515.08.010.61.5SIZE A
VFD500-2R2GS25.525.010.614.02.2SIZE A
VFD500-4R0GS27.735.017.023.04.0SIZE B
VFD500-5R5GS28.953.025.031.05.5SIZE C
VFD500-7R5GS21167.032.037.07.5SIZE C
