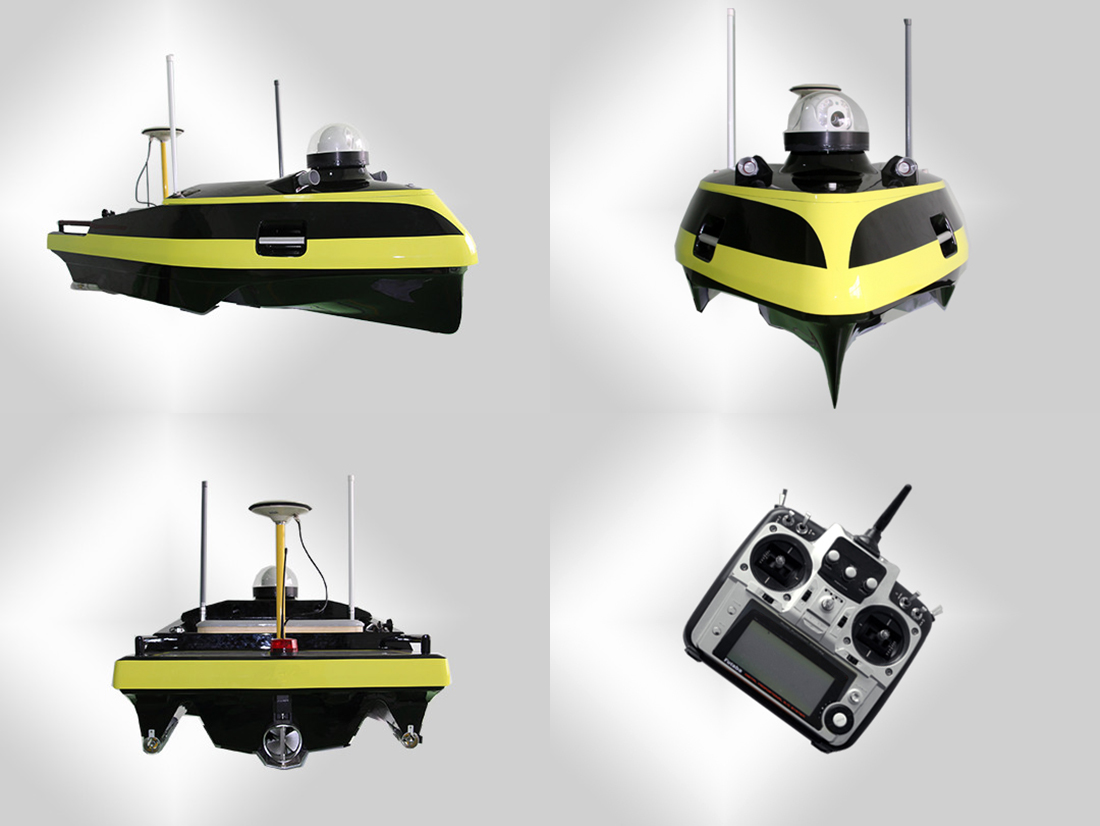

Unmanned Survey Boat and Surface Vehicle Hydrographic Survey for Surveying Equipment and Instrument Manufacturer from China.
Hydrographic Survey USV007 Advantage Functions:
1.Hull module
●Trimaran design shape with portable size
●Kevlar＆carbon high-strength composite
●Propellers with ducted design and protective shield
●Remote video and obtacle avoidance
2.Sounding module
●Professional HD-MAX sounding module range from 0.15~300m
●Digital and simulative echo signals combined
●Independent HiMAX software available for collecting,guiding and
post-processing
3.Application
●Underwater topographic survey
●Underwater landscape survey
●Hydrographic survey
●Water quality monitoring
| Model No. | HV-USV007 |
| Hull Parameter | |
| Dimensions | 1800x840x480mm |
| Weight | 30KG |
| Hull material | Kevlar & Carbon fiber high-strength composite |
| Boat Shape | Trimaran designed,low barycenter,small resistance,stable sailing |
| Anti-wave &wind | 5th wind level and 3rd wave level |
| Power and electrical parameter | |
| Battery endurance | 6hours at 2m/s |
| Top speed | 3.5m/s |
| Propulsion | Brushless DC outdrivers |
| Propeller Type | one primary and two assistant propellers with ducted design |
| Direction control | veering without steering engine and sailing reverseky |
| Safety Guarantee | |
| Obstacle-avoiding | Automatic ultrasonic obstacle-avoiding |
| Video | Transmission in real-time |
| Auto-return | Auto-return while low battery or dropped signal |
| Ashore Base | |
| Operating system | Supporting Windows and Android |
| Communicating mode | RF point to point in real-time |
| Transmission distance | Wireless bridge 2KM(5KM,10KM,15KM optional) |
| Navigation Mode | Manual or autopilot,switchover at any time |
| Intelligent Controller | |
| Communication Mode | RF point to point in real-time |
| Reacting distance | 2KM |
| Waterproof | IP65 |
| Function | work mode switch in real-time,basic information display of USV in real-time |
| velocity and direction control of USV. | |
| Sounding Performance | |
| Work Frequency | 200Khz |
| Beam Angle | 5°±0.5° |
| Sounding range | 0.15m~300m |
| Sounding resolution | 1cm±0.1,1cm depth resolution |
| Location Accuracy | |
| RTK | Horizontal :±8mm+1ppm RMS Vertical :±15mm+1ppm RMS |
| Beacon (optional) | 0.5m |
| SBAS | 1.0m CEP |
