| Categories | 16 Segment LED Display |
|---|---|
| Brand Name: | KERUN |
| Model Number: | KRS-395AY-4 |
| Certification: | RoHS/REACH/MSDS |
| Place of Origin: | Guangdong China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 30000pcs/day |
| Delivery Time: | 20~25 work days |
| Packaging Details: | Paper box，size：46*34*40（mm） |
| Segment quantity: | 16 segment |
| Digit height: | 0.39inch，9.9mm |

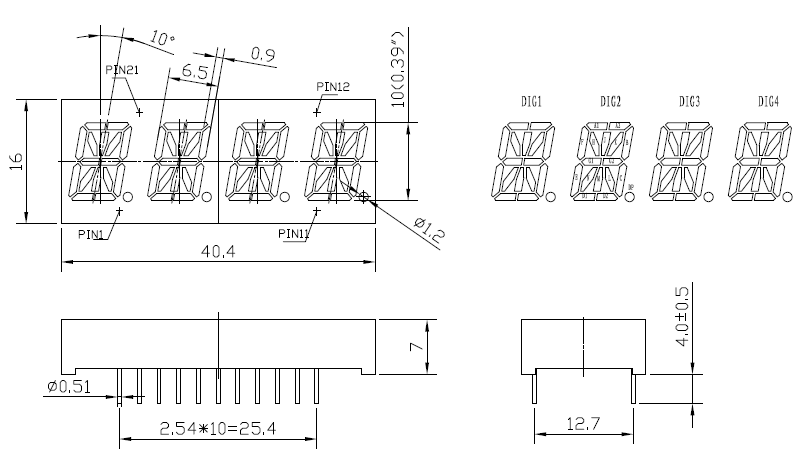

| Module Size: | 40.4*16.0*7.0（mm） |
| Usage: | Numerical Display Indicator |
| Luminous Color: | Yellow |
| Part No | Chip Material | Luminous color | Lens Type | Description |

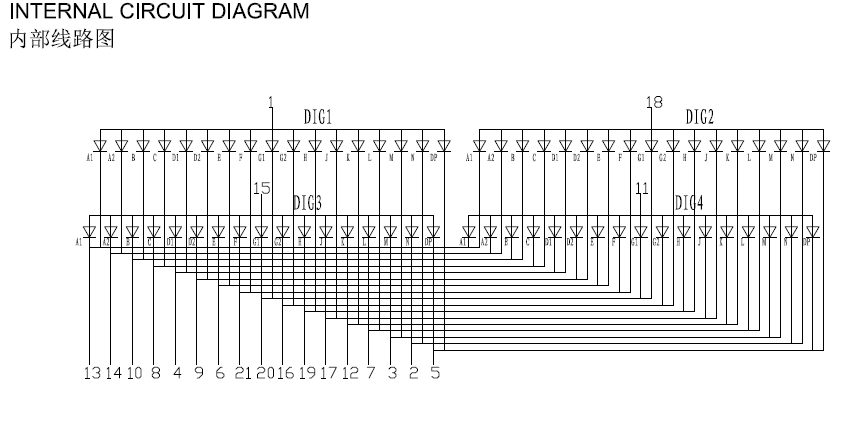

| KRS-395AY-4 | AIGaInP | Yellow | Diffuse | Common Anode |
Electrical/Optical Characteristics at Ta=25℃
| Parameter | Symbol | Yellow | Unit | Condition | ||
| Min | Typ | Max | ||||
| Luminous lntensity | Iv | 60 | 70 | 80 | mcd | If=20 mA |
| Peak Wavelength | λP | -- | -- | -- | nm | If=20 mA |
| Chrom Coordinate | X | -- | -- | -- | ||
| Y | -- | -- | -- | |||
| Dominant Wavelength | λd | 588 | 590 | 595 | nm | If=20 mA |
| Spectral Line Half-Width | △λ | 20 | 20 | 20 | nm | If=20 mA |
| Forward Voltage | VF | 2.7 | -- | 3.6 | V | If=20 mA |
| Reverse Current | IR | - | - | 30 | μV | VR=6 V |
Absolute Maximum Ratings at Ta= 25℃
| Parameter | symbol | Maximum rating | unit |
| Power Dissipation | Pd | 50 | mW |
| Forward Current | IF | 20 | mA |
| Peak Forward Current | IF(Peak) | 100 | mA |
| Reverse Voltage | VR | 6 | V |
| Operating Temperature | Topr | -40℃ +80℃ | |
| Storage Temperature | Tstg | -40℃ +80℃,RH:25%~65%, within 3 months | |
| Lead Solder Temperature | Tsol | 260℃ for 5 seconds |
|
