MiniLoad Stacker ASRS, Automatic Storage and Retrieval System

Mini Load Stacker ASRS

——

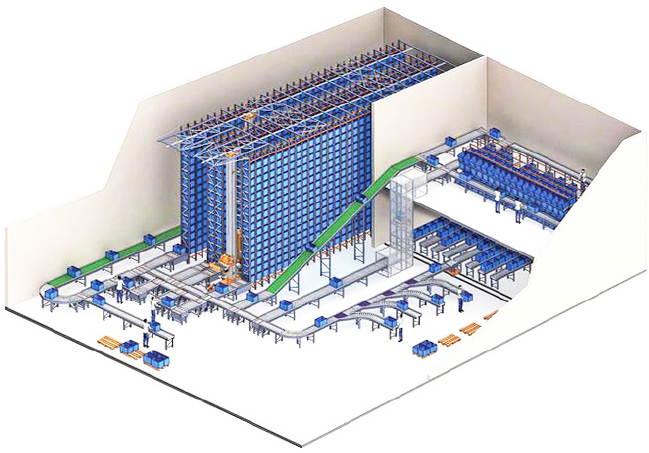

Mini load AS/RS is a storage solution that uses miniload stacker to automatically access miniloads (plastic boxes or cartons). The miniloads can be stored in single box or stacked mode, and the storage capacity of goods in the same area can reach 3-5 times of the traditional flat warehouse.

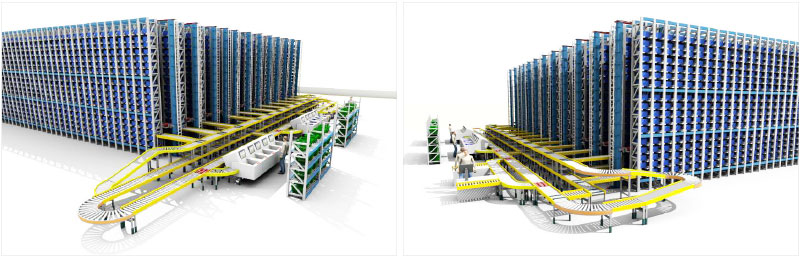

Mini load AS/RS can be seamlessly connected with the box conveyor and sorting system to form an automatic logistics system with complex functions. It is most suitable for multi variety and small batch inbound and outbound operations such as scattered articles and parts. It can not only realize the storage, sorting and handling functions of logistics, but also cross plane operations, save time and improve efficiency.

Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China

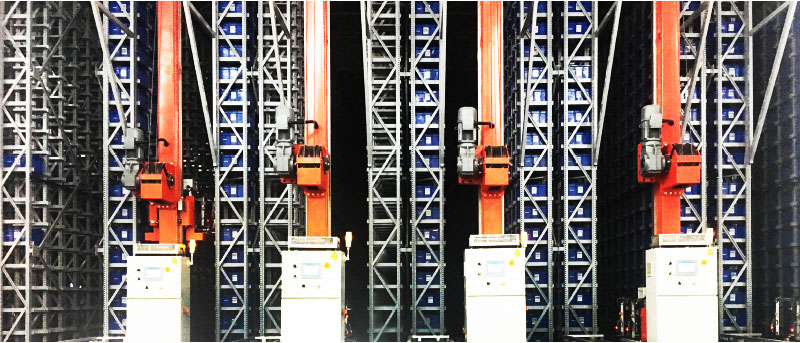

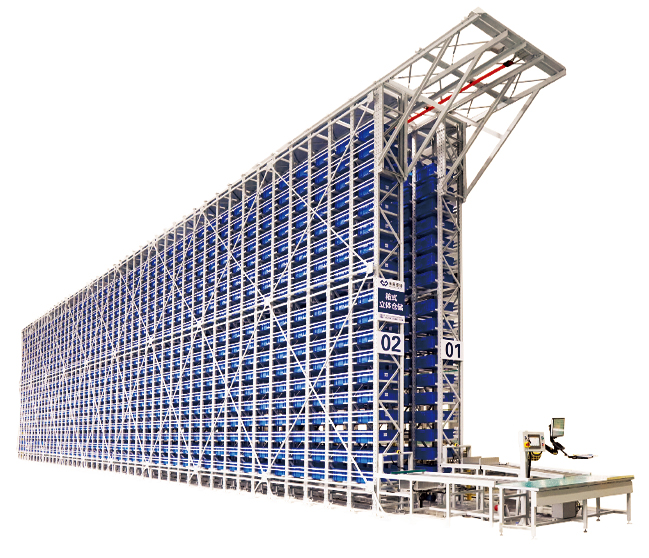

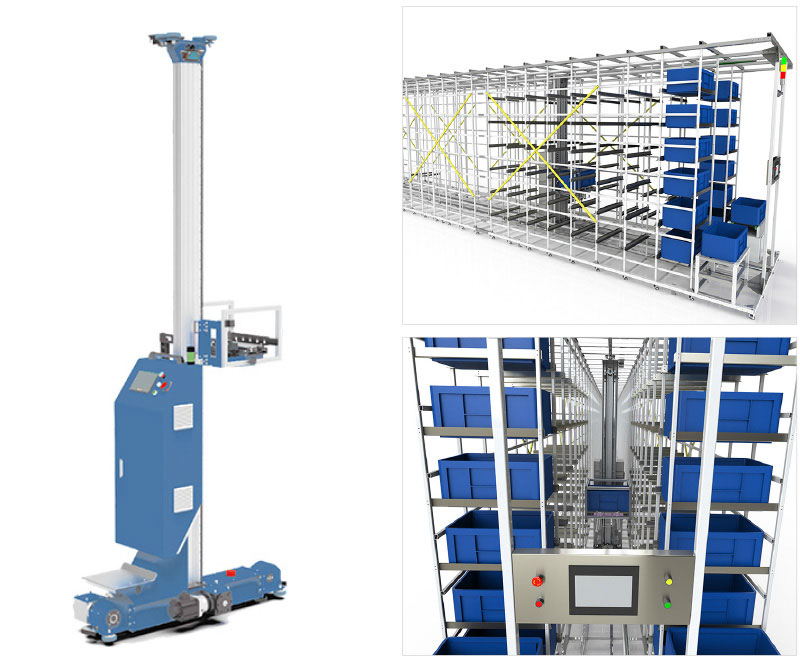

Miniload Light Stacker

——

Stacker can greatly increase the area and space utilization of the three-dimensional warehouse.One of the main components in the automated warehouse is mainly used to shuttle back and forth in the laneway of the high-level shelf, store the goods at the entrance of the roadway, or take the goods from the storage place and transport it to the roadway.

• Reduce manual intervention
• Effectively improve the efficiency and automation of the storage system.
• A high-frequency, high-efficiency sorting stacker, suitable for high-speed turnover bin storage system
• High dynamic value, advanced, energy-saving drive technology
• So that the customer's small parts warehouse realizes extremely high flexibility and performance.

Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China

CASE

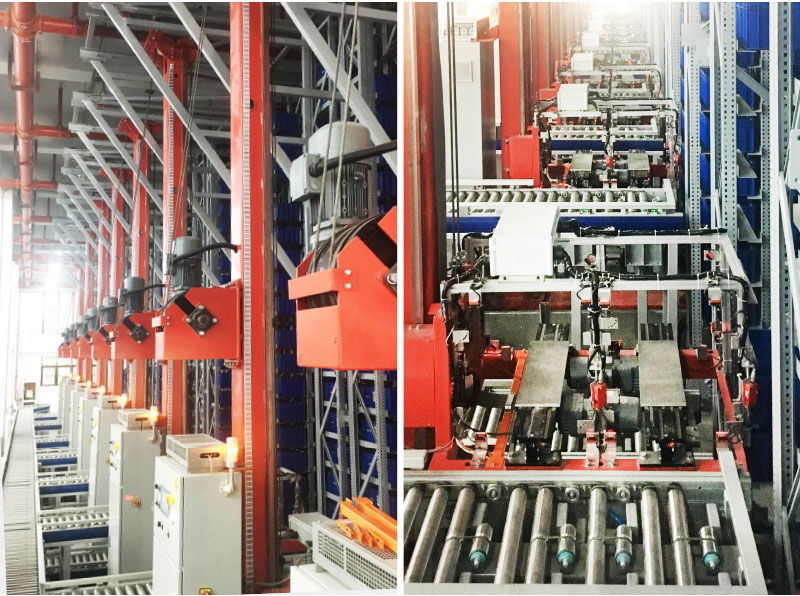

Mindray Bio-Medical

——

Solution Introduction

—

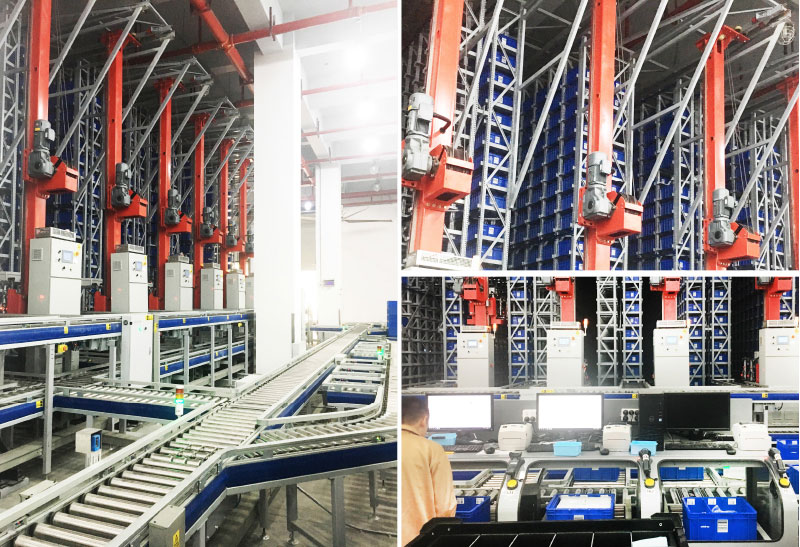

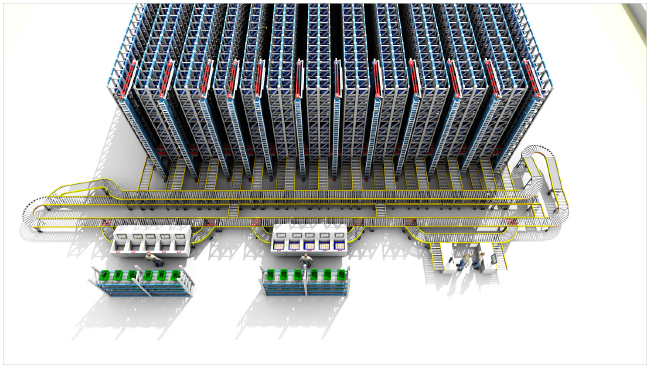

Total 32232 tote positions;Tote outside dimension: D400*W300*H240mm; Total 11 units miniload stacker

Walking speed: 160m/min; Lifting speed:40m/min; Fork speed: 40m/min;

In front of ASRS, sorting system is divided into input and output two layers. Greatly improved equipment picking efficiency;

Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China

CASE

Mindray Bio-Medical

——

Solution Introduction

—

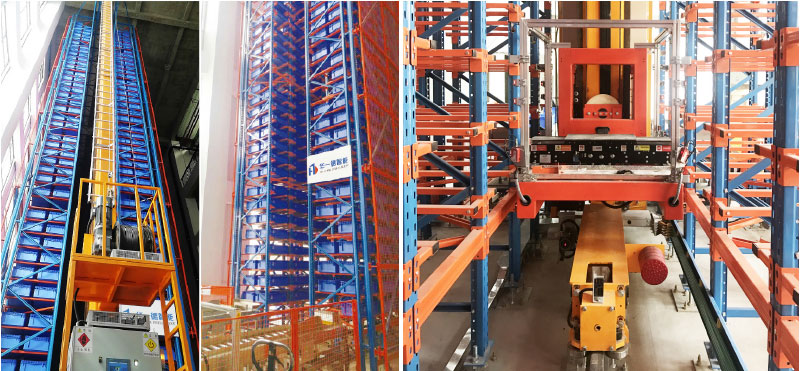

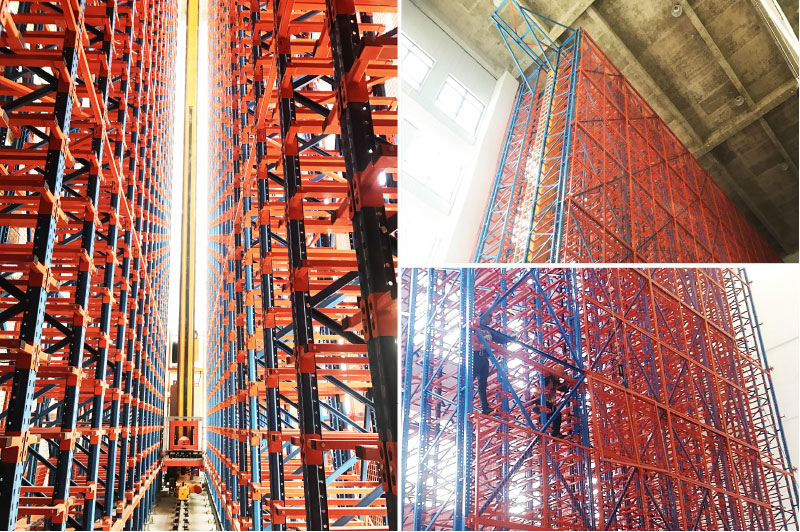

Project: Nanjing Xingqiao Y-TEC Automobile Parts Co.,Ltd.

H:19.7m Height: 19.7m 4140个 Number of goods: 4140 Operating time: April 2019

Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China

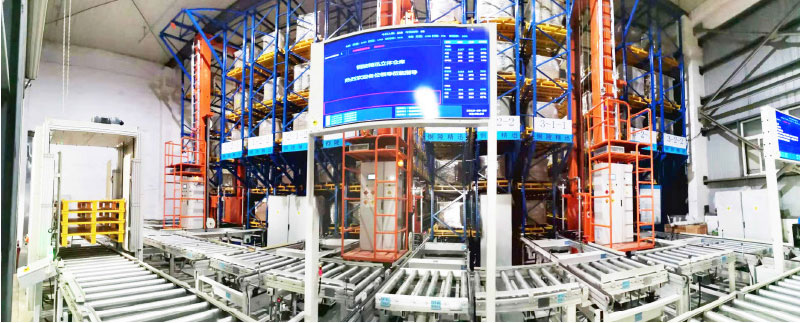

Stacker Crane AS/RS

——

The stacker operates in the horizontal and vertical directions during the warehouse racking by racking and stacker equipement. According to the instructions of the computer, the goods carried by the pallets are stored in the designated goods by the motor-driven fork. Or remove the goods from the designated pallet location.

■ Product Advantages

Customized according to project production, light, heavy, single and double deep; complete categories

Representative manufacturer of domestic European structural design, stable performance of stacker, ensuring long-term reliable operation

Deepen understanding of customer business needs, focusing on optimization design

■ Characteristics

Shelf height can reach 40 meters or higher, reducing land occupation area

Automatic unmanned operation, reducing labor costs

Seamless data integration with ERP system and real-time intelligent production scheduling

Eliminate the chaos in the warehouse and reduce the difficulty of management

Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China

Ensure the quality of Huayide racking products

—

Our factory has a product exhibition hall and on-site demonstration of vertical warehouse.

Welcome everyone visit and give guidance.
