Categories | USB 2.0 PTZ Camera |
---|---|
Brand Name: | Tongveo |
Model Number: | TEVO-NV10U |
Certification: | ISO9001,CE,FCC,ROHS |
Place of Origin: | China |
MOQ: | 1 piece |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
Supply Ability: | 3000 piece per month |
Delivery Time: | 1-10 working days |
Packaging Details: | Foam packaging inside; standard carton packaging outside |
video output: | USB2.0 |
Sensor: | 1/3 inch HD Color CMOS |
Pixel: | 2.1 mega pixel(16:9) |
Zoom: | HD1080P 10X optical zoom |
Features: | Pan: ±175°(max speed 80°/S), Tilt: 35°~55°(max speed 60°/S) |
Color: | Black |
Horizontal angle: | 51.3 degree |
Control temernal: | RS-232, RS-485, IR remote control |
Resolution: | 1080P (1920 *1080) |
Warranty: | 2 years |
OEM auto focus 10x zoom video conference camera for PTZ broadcasting

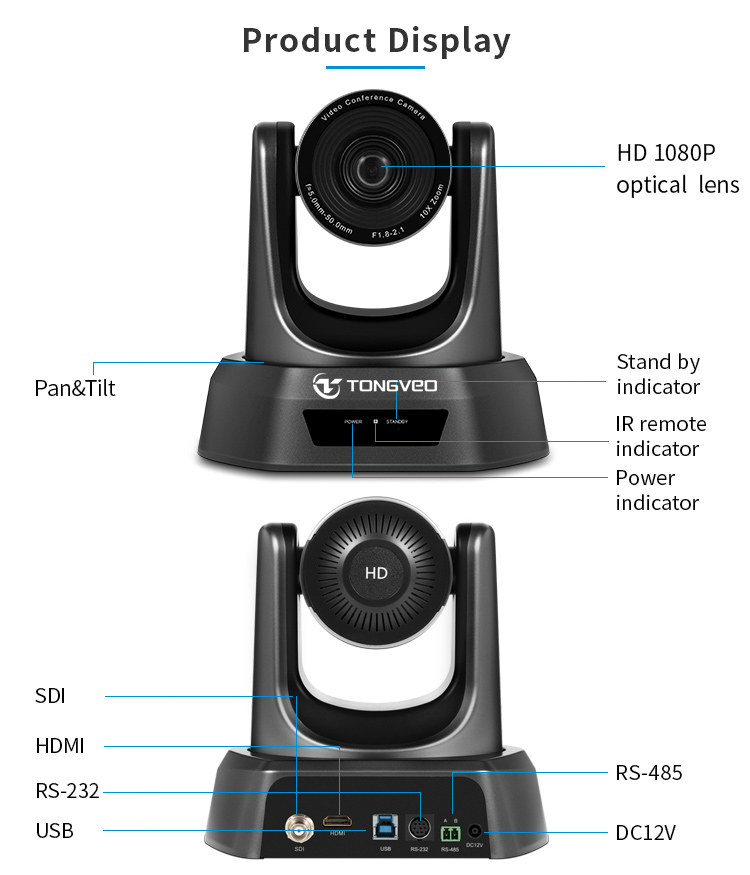

The TEVO-NV10U Pan/Tilt/Zoom (PTZ) camera has USB video output.
It is equipped with a 1 /3 inch HD Color CMOS with 2.1 mega pixel
(16:9) and Full HD 1080p output resolution & a high dynamic image
of 30 fps.

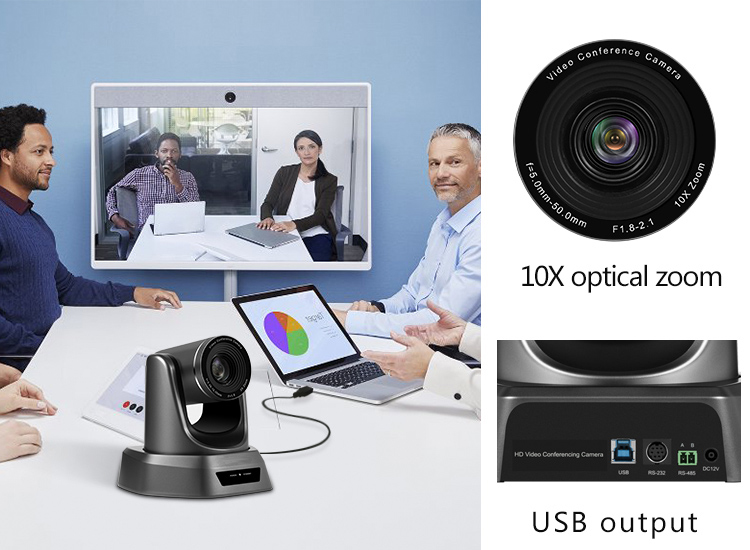

The superior 10x optical zoom lens, excellent white balance, and
exposure mode delivers a clear image even in low light or the
extreme contrast of brightness and darkness in a conference room.
The camera covers a wide shooting angle and achieves high-speed,
quiet, and precise positioning with smooth PTZ operations.
There are up to 256 preset setting movements and stable remote
controlling for displaying effective and efficient presentations.
The TEVO-NVl OU is applicable for video conferencing in a medium
conference room.
NV10U Parameters | |
Image Sensor | 1/3 inch HD Color CMOS |
Effective pixel | 2.1 mega pixel(16:9) |
Horizontal Resolution | 1080P30/25, 720P30/25 |
Signal standard | NTSC/PAL |
Zoom | 10x optical zoom |
Minimum luminance | 0.5Lux at F2.0 |
Focal length | f=5.0mm~50.0mm F1.8(W)~2.1(T) |
Horizontal Angle | Near-end 51.3°~Far-end 4.46° |
Gain control | Auto |
Focus | Auto |
White balance | Auto |
SNR ratio | ≥50dB |
Shutter speed | 8 to 1/10000s (auto) |
Preset position | IR remote control supports 9 presets, |
PELCO Protocol supports 256 presets | |
Pan/Tilt movement range | Pan: 175°(max speed 80°/S), Tilt: 35°~55°(max speed 60°/S) |
Control terminal | USB, RS-232, RS485 |
Control Protocol | VISCA, PELCO-D, PELCO-P (RS-232, RS485) |
Video output | USB |
Video Compression Format | YUV, MJPG, H.264 |
Noise Reduction | 2D/3D |
Work temperature | -10°C-~50°C |
Storage temperature | -20°C~60°C |
Baud rate | 38400/9600bps |
Decoder | Built-in |
Address set | 1~256 |
Features:
10x optical zoom
Sleek and intelligent design
Plug & Play USB Connectivity
Crystal clear HDI080P image quality
Accurate, smooth and silent PTZ Movement
Preset: 9 via IR remote setting (255 via RS232)
Superior quality with Full Glass Lens Material
51.3.wide field of view with no video distortion
Video Compression Format supports YUV, MJPG, H.264
1 /3 inch high quality, 2.1 MEGA PIXEL (16:9) CMOS sensor
2D and 3D NR for best video quality in different lighting
conditions
Support ceiling mount, wall mount and tripod mount (Reverse
mountable)
Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera
Control Utilizing belt drive technology the PTZ is ultra-quiet and
fast, while being very smooth
Compalible with all popular applications and cloud systems:
![]() |
