| Categories | Automatic Labelling Machine |
|---|---|
| Brand Name: | LTPM China |
| Model Number: | MT-Series |
| Certification: | CE, GMP |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 25sets/month |
| Delivery Time: | 25days |
| Packaging Details: | Export standard wooden case |
| Voltage: | 380/220V 50Hz |
| Capacity: | 20-130 carton/min |
| Bottle diameter: | 25-134mm |
| Type: | Labeling Machine |
| Condition: | New |
| Usage: | Adhesive Labels Bottles Labeling Machine,Beverage Drinks,Food,etc |
| Key Selling Points: | Easy to Operate |
| Company Info. |
| LeadTop Pharmaceutical Machinery Co., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Description

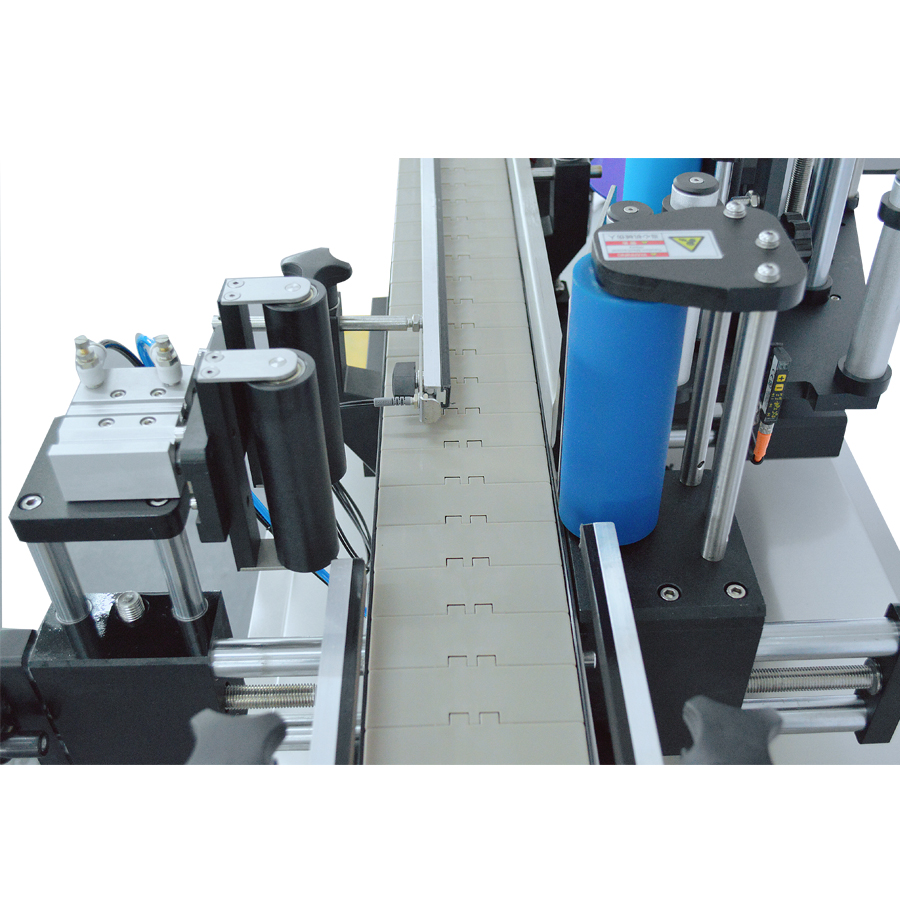

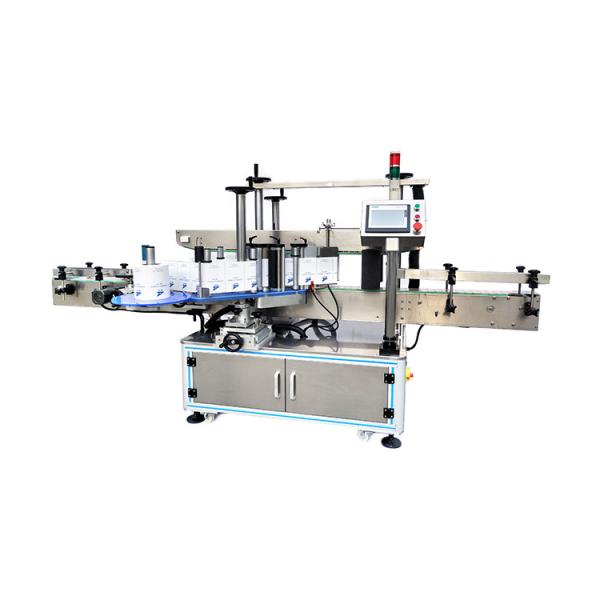

The round bottle automatic labeling machine adopts self-adhesive film roll labeling paper, and the labeling adopts the belt rubbing bottle method. It is equipped with automatic bottle separation, which can complete the bottle and labeling at one time. It can also be equipped with a color band coding machine to complete the label production synchronously. Date printing, this machine adopts Japan Mitsubishi PLC control, synchronous tracking, the label is controlled by a stepping motor, to ensure that the speed of the label is synchronized with the speed of the bottle. With positioning optical eye, positioning and labeling can be realized. It is a modern mechatronics product with excellent and reliable working performance. The self-adhesive labeling machine has the advantages of clean and sanitary, no mold, beautiful and firm after labeling, will not fall off by itself, and high production efficiency.
Work Process
1 the sensor detect the product,transmit the signal to labeling
control system;
2 after the signal has been processed by the PLC,a label is send out at an appropriate time and attach on a desired position of the container;
3 the container go through the press plate unit,the press wheel lead the rotation of container,the label is pressed to fit smoothly, the labeling operation is finished.
Technical Parameters:
| Model | MT-130D |
| The standard system | Step Motor |
| Capacity | 20-130 carton/min |
| Operating Direction | Left or right |
| Label speed | ≤35 m/min |
| Tags volume inner diameter | 76 mm |
| Tags volume outer diameter | 350 mm (max) |
| Label Specifications | Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand) |
| Labeling accuracy | ±1.0mm (subject to the roughness of the plane) |
| Weight | 200KGS |
| Total motor power | 800W |
| Power supply | AC220V 50/60HZ Single phase |
| Size appearance (mm) | 2200 (L) 1800 (W) 1500(H) |
Remark:
1. Transparent plastic label need match special transparency sensor
2. Need date code shall match printer
Main Configuration:
1.Frame: SUS + aluminum alloy

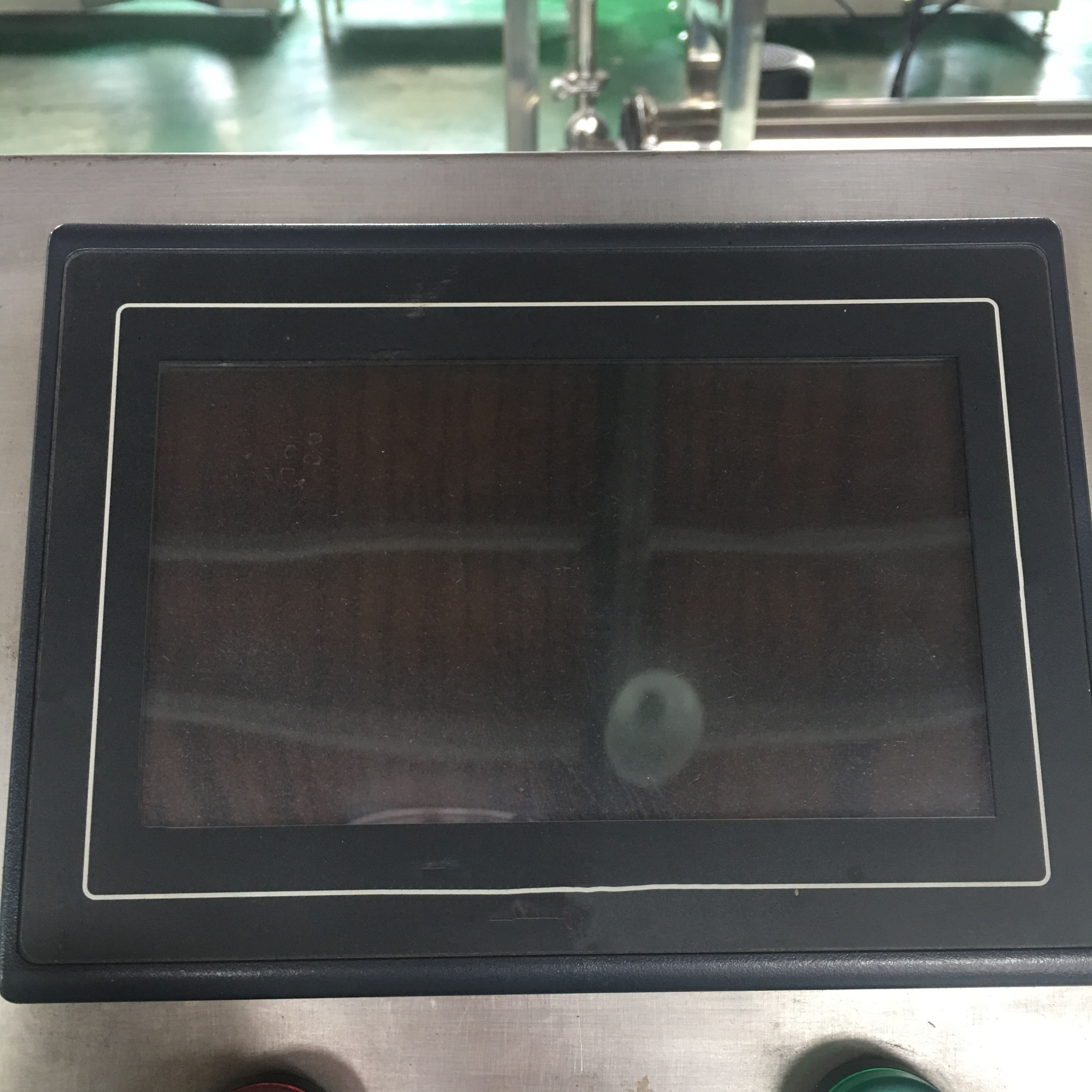

2. PLC + 7 inch touch screen: Siemens
3. Photo electronic sensor: German LEUZ
4. Relay and air switch: French Schneider
5. Converter: French Schneider
6. Conveyor motor: 750W China brand AC motor
7. Labeling driving motor: 750W French Schneider servo motor

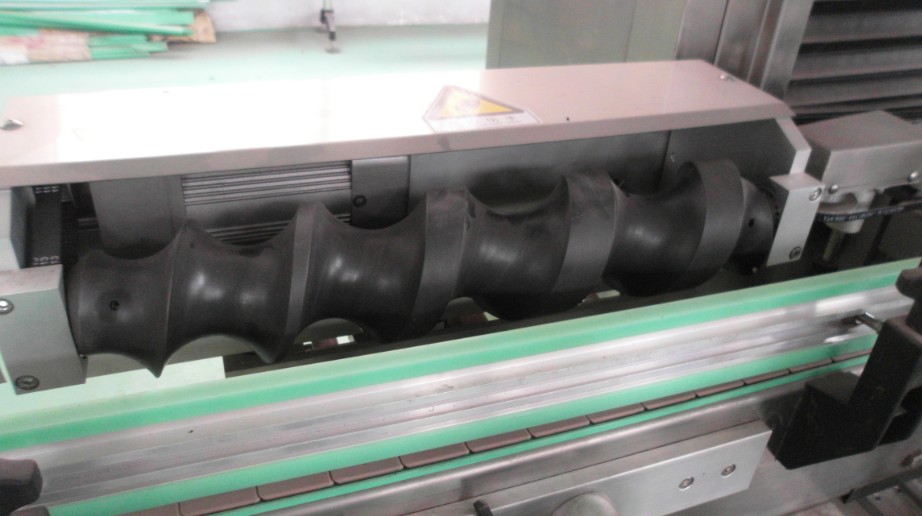

8. Bottle dividing motor: 40W China brand AC motor
9. Bottle turning motor: 90W China brand AC motor
10. Exposed parts: SUS, aluminum alloy, 45 # steel,
Label applicable
adhesive labels; adhesive films; electronic supervision code, bar code etc.
Product Applicable
The products which must be labeled with paper label or film label on the round or small conical surface
|
