ISO9001 Split Core Current Transformer 600a Split Core Ct AKH-0.66/K-Φ Series

AKH-0.66/K-Φ Series Current Transformer

● Split core current transformer

● Accuracy: class 0.5

● Suitable for electricity renovation project

Standards

IEC/EN61869-1, IEC/EN61869-2

Characteristic

● Security factor: FS＜5

● Maximum system voltage: 720V AC

● Test voltage: 3kV AC(1min)

● Rated frequency: 50/60Hz

● Rated short-time thermal current: Ith=40~60In

● Rated dynamic current: Idyn=2.5Ith

● Rated secondary current: X/5A (X/1A upon request)

● Rated primary current: Ranging up to 6000A

● Continuous overload: 120%In

● Protection level: IP30

● Casing: Non-flammable, polycarbonate self-extinguishing ABS

● Environment:

Operating temperature: -25℃-+50℃
Storage temperature: -40℃-+80℃
Humidity (no condensation) ≤90%RH

Technical Parameters

item		Value
Place of Origin		China
Brand Name		Acrel
Model Number		AKH-0.66/K
Usage		Current
Phase		Three
Coil Structure		TOROIDAL
Coil Number		AUTOTRANSFORMER
Product name		AKH-0.66/K Series Current Transformer
Certification		CE,ISO9001
Rated frequency		50/60Hz
Security factor		FS<5
Continuous overload		120%In
Environment Operating temperature		-25℃-+50℃
Test voltage		3kV AC(1min)
Maximum system voltage		720V AC
Rated short-time thermal current		Ith=40~60In
Protection level		IP30

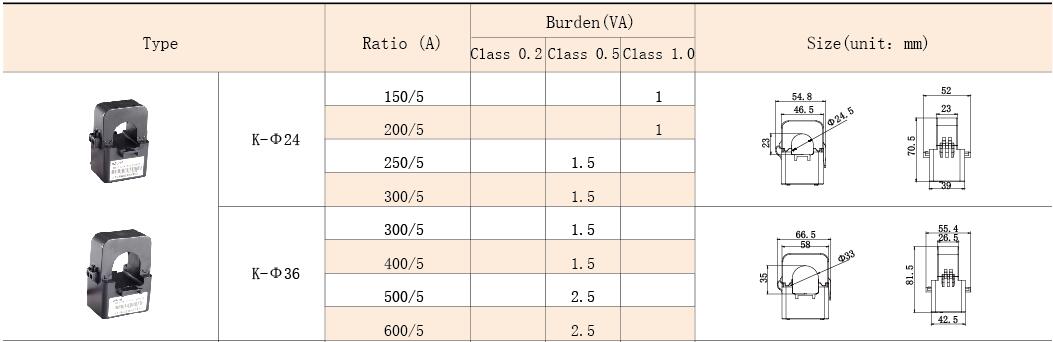

Specifications

Product Tags:

ISO9001 Split Core Current Transformer

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Jiangsu Acrel Electrical Manufacturing Co., LTD.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Split Core Current Transformer
Brand Name:	Acrel
Model Number:	AKH-0.66
Certification:	ISO/CE
Place of Origin:	Jiangsu, China
MOQ:	1
Price:	USD 5-17 PCS
Payment Terms:	L/C, T/T
Supply Ability:	20000000 per year
Delivery Time:	5-8 work days
