| Categories | 2MP Camera Module |
|---|---|
| Brand Name: | Sinoseen |
| Model Number: | SNS-2MP-BG0806-V1.0 |
| Certification: | RoHS |
| Place of Origin: | Shenzhen,China |
| MOQ: | 3 |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
| Delivery Time: | 2-3weeks |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Type: | USB camera module |
| Sensor: | 1/2.7" BRIGATES BG0806 CMOS |
| Resolution: | 2MP (1920*1080) |
| Dimensions: | customizable |
| Lens FOV: | 80°(optional) |
| Focus Type: | Fixed focus |
| Interface: | USB2.0 |
| Feature: | Low cost |
| Company Info. |
| Shenzhen Sinoseen Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

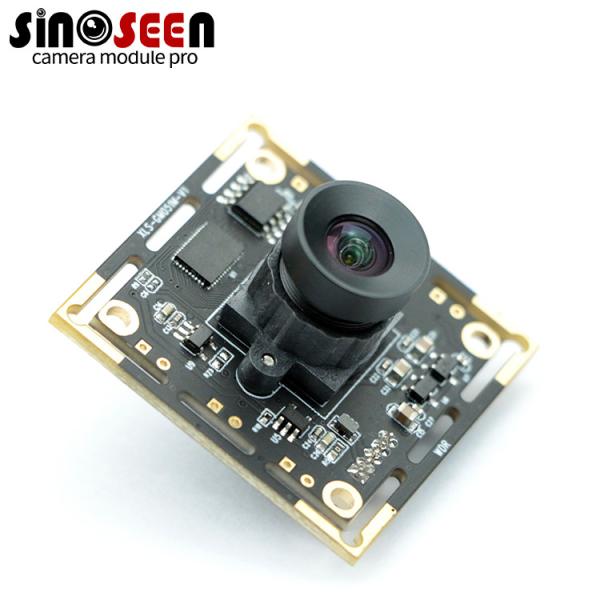

ODM HD Stereo Micro 2MP Camera Module With BRIGATES BG0806 Sensor
Sinoseen Factory Price 2MP Micro HD Stereo USB Camera Module With BG0806 Sensor
2MP Camera Module
If you are looking for a low-cost full HD camera module to make
your products more competitive to win the market and customers,
this is your best choice!
This is one of our best selling USB2.0 camera modules, it has 2MP
resolution (1920x1080) and BG0806 CMOS sensor, and the frame rate
is up to 30FPS. It is popular because it is one of the
lowest-priced 2MP camera modules on the market while still
maintaining a stable quality.
Specification
Model No | SNS-2MP-BG0806-V1.0 |
Sensor | 1/2.7’’ BRIGATES BG0806 CMOS |
Pixel | 2 Mega Pixel |
Most effective pixels | 1928(H) x 1088(V) |
Pixel Size | 3.0µm x 3.0µm |
Image area | 5784um(H) x 3264um (V) |
Compression format | MJPEG / YUV2 (YUYV) |
Resolution | 1920x1080; 1280x720; 640x480 |
Frame rate | See above |
Shutter Type | Electronic rolling shutter |
Focus type | Fixed focus |
S/N ratio | 39dB |
Dynamic range | 64.6dB |
Chroma | RGB |
Interface type | USB2.0 |
Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/ |
Lens | Focal length: 3.6mm |
Lens Construction: 6E+IR | |
FOV: 80° | |
Thread Size: M12*P0.5 | |
Audio frequency | Optional |
Power supply | USB BUS POWER |
Power consumption | Max 300mA |
Voltage | DC 5V |
Main chip | DSP/SENSOR/FLASH |
Auto Exposure Control (AEC) | Support |
Auto White Balance (AEB) | Support |
Auto Gain Control (AGC) | Support |
Dimension | 38MM x 38MM (32MMx32MM) |
Storage temperature | -20°C to 70°C |
Operating temperature | 0°C to 60°C |
USB cable length | Default |
Support OS | WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application
scenarios, resolution, size, and lens requirements. We will have a
professional team of engineers to assist you in choosing the most
suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to
confirm the details with you. Once the drawing is confirmed, we
will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it
is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we
will send the samples to you via DHL FedEx UPS or any other courier
methods, usually within a week.
|
