| Categories | Sacrificial Anode |
|---|---|
| Brand Name: | OEM |
| Model Number: | OEM Custom-made |
| Certification: | ASTM G-97, ISO, DNV |
| Place of Origin: | China |
| MOQ: | 10 Kilograms |
| Price: | negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal |
| Supply Ability: | 300 Metric Ton/Metric Tons per Month |
| Delivery Time: | 1 FCL:14 Days |
| Packaging Details: | On pallet with steel bundles |
| Material: | Magnesium metal |
| Dimensions: | Specifications,high potention |
| Color: | White |
| Product technology: | Casting Magnesium Anode High Potential sacrificial anode |
| Company Info. |
| China Hunan High Broad New Material Co.Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

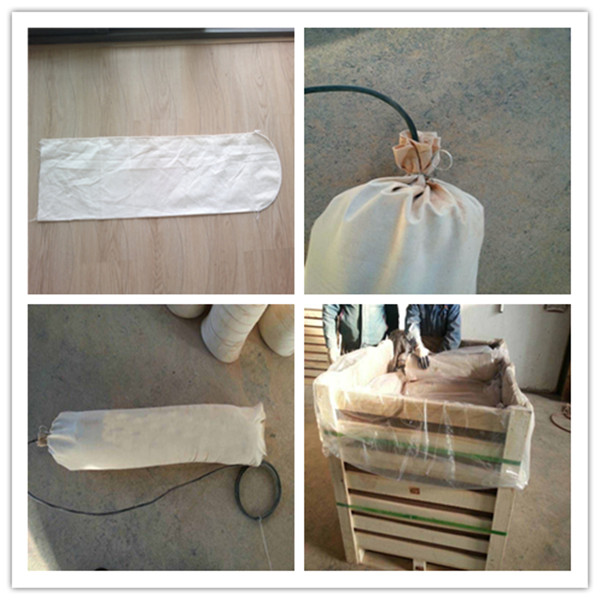

Prepackaged 1.7v Magnesium Anode With Gypsum, Bentonite, Sodium Sulphate Backfill
Magnesium Backfill anodes typically have 10′ of No. 12 insulated wire and are packaged in the backfill mixture of: 75% Hydrated Gypsum, 20% Bentonite, 5% Sodium Sulfate
| ANODE SIZE | BARE LBS | PACK LBS | ANODE WIDTH | ANODE HEIGHT | ANODE LENGTH | PACKAGE DIA | PACKAGE LENGTH |
| HB-3-H-1 | 3 | 8 | 3 | 3 | 5 | 5.25 | 8 |
| HB-5-H-1 | 5 | 13 | 3 | 3 | 8 | 5.25 | 11.25 |
| HB-9-H-1 | 9 | 27 | 3 | 3 | 14 | 5.25 | 20 |
| HB-12-H-1 | 12 | 32 | 4 | 4 | 12 | 7.5 | 18 |
| HB-17-H-1 | 17 | 45 | 4 | 4 | 17 | 7.5 | 24 |
| HB-32-H-1 | 32 | 68 | 5 | 5 | 20.5 | 8.6 | 28 |
| HB-5-HP | 5 | 17 | 3.5 | 3.5 | 8.5 | 6 | 12 |
| HB-9-HP | 9 | 27 | 3.5 | 3.5 | 14 | 6 | 17 |
| HB-14-HP | 14 | 31 | 2.75 | 2.75 | 41 | 6 | 46 |
| HB-17-HP | 17 | 45 | 3.5 | 3.5 | 25.75 | 7.5 | 34 |
| HB-32-HP | 32 | 70 | 5.5 | 5.5 | 20.5 | 8 | 28 |
Magnesium anodes are commonly used in cathodic protection, as Mg
metal has the more negative potential than other galvanic
materials. We take the most professional and reasonable technical
control through melting of Mg metal, choosing of Mg ingot and
impurity, preparing of Mg alloy melt, refining of Mg alloy, pouring
and casting of anode, making mould, connecting of cable and final
test.
|
